Operating Manual Crawler Excavator TC37
Operation 4

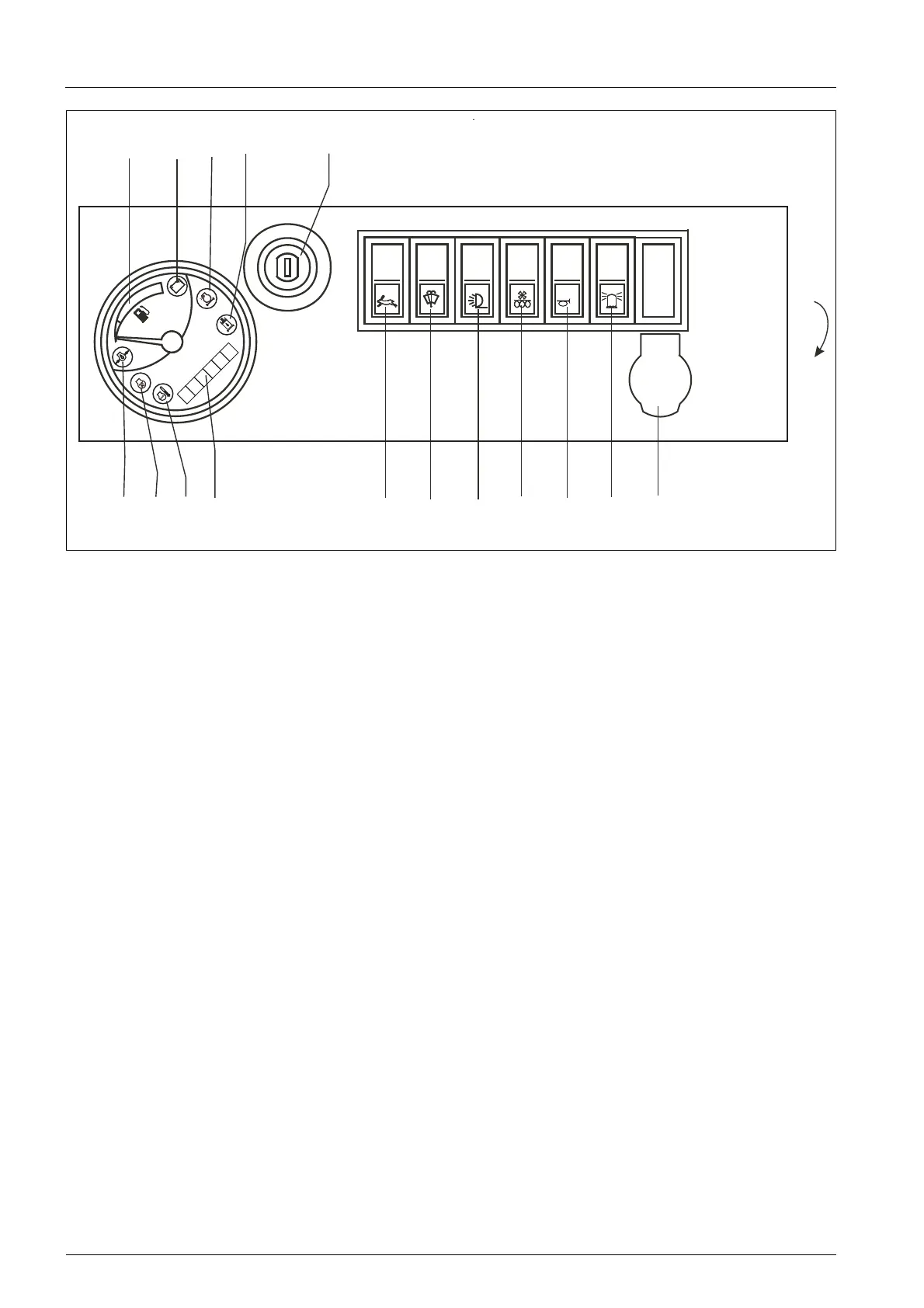

Fig. 13 Operator controls
18 Battery charge indicator (red)
19 Preheating monitor (yellow)
20 Engine oil pressure indicator (red)
21 Air filter clogging indicator (yellow)
22 Hydraulic oil filter clogging indicator (yellow)
23 Fuel gauge
24 Operating-hour meter
25 Coolant temperature (red)
26 Power socket
27 Travel, FAST/SLOW (option)
28 Windshield wiper and washer system (only for the cab)
29 Working floodlight(s)
30 Heating/ventilation (only for the cab)
31 -
32 Rotating beacon (option)
33 Glow plug and starter switch (ignition lock)
34 Travel motion alarm ON/OFF (option)
