The Card Connections and their Usage.
The connection possibilities of the SiXPack 5.1 + are plentiful. Nearly everything that can be
used with a PC in respect to sound can be connected to the card and used without a problem.
In the following section we would like to show all the options that allow you to correctly config-
ure your SiXPack 5.1 + to accomplish the task at hand. You will also find tips for the frequently
used applications. Please be sure to read the explanation of the SiXPack 5.1 + Control Panel in
the section "The SiXPack 5.1 + Control Panel." (page 51).

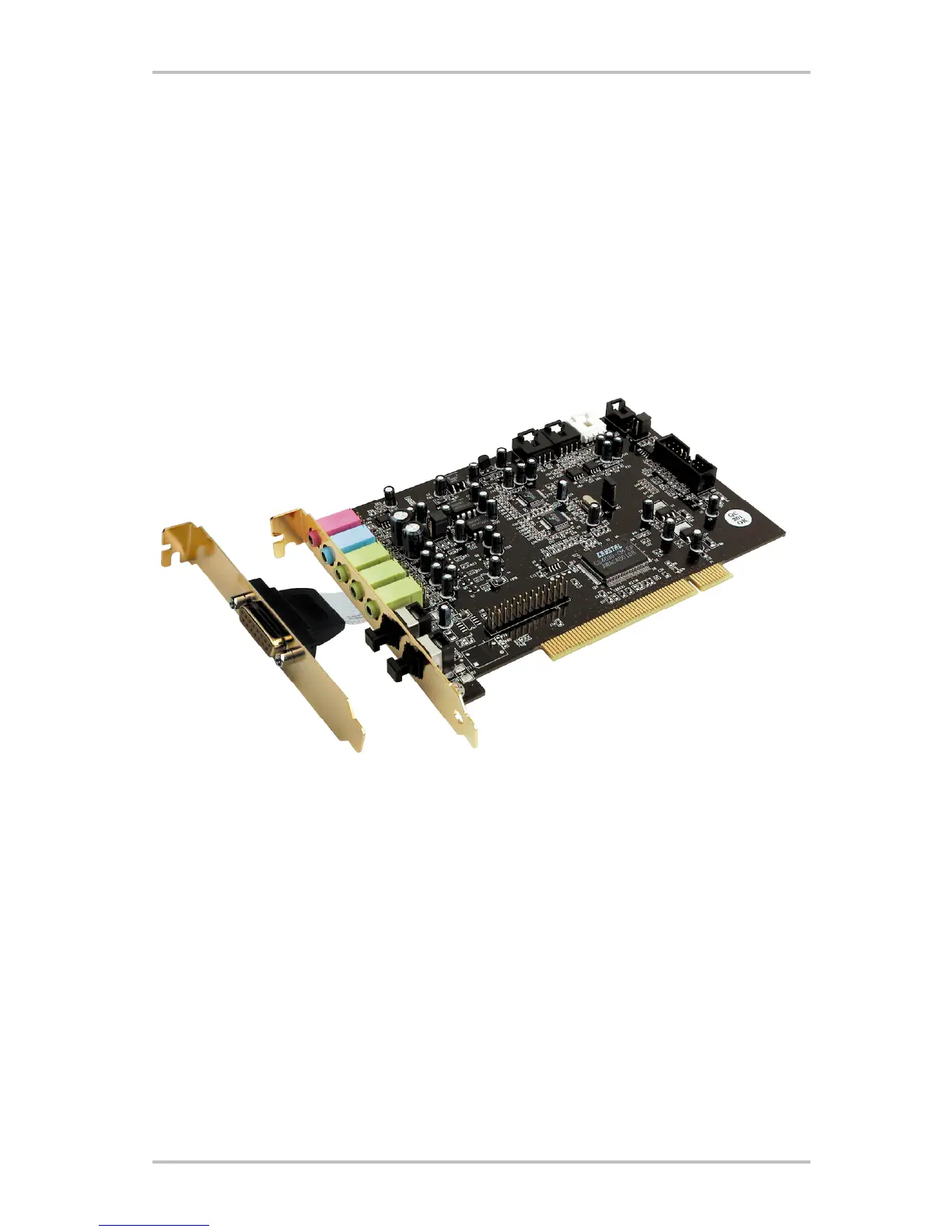

Card Diagram
i
j
k
h
g
f
e
d
m
o
t
l
n
s
q
p
r
d Game/MIDI port e Digital In
f Digital Out g Line Out 3
h Line Out 2 i Line Out 1
j Line In / Headphone Out k Mic In
l CD In 1 m CD In 2
n Aux In o Digital In
p Gameport Connector q Wavetable Xtension
r Jumper JP2 s Jumper JP3
t Jumper JP1
