Tesla TIMV3500 GPU-24 - Front Panel Overview

TI3500 GPU-24
6
2
Product Overview

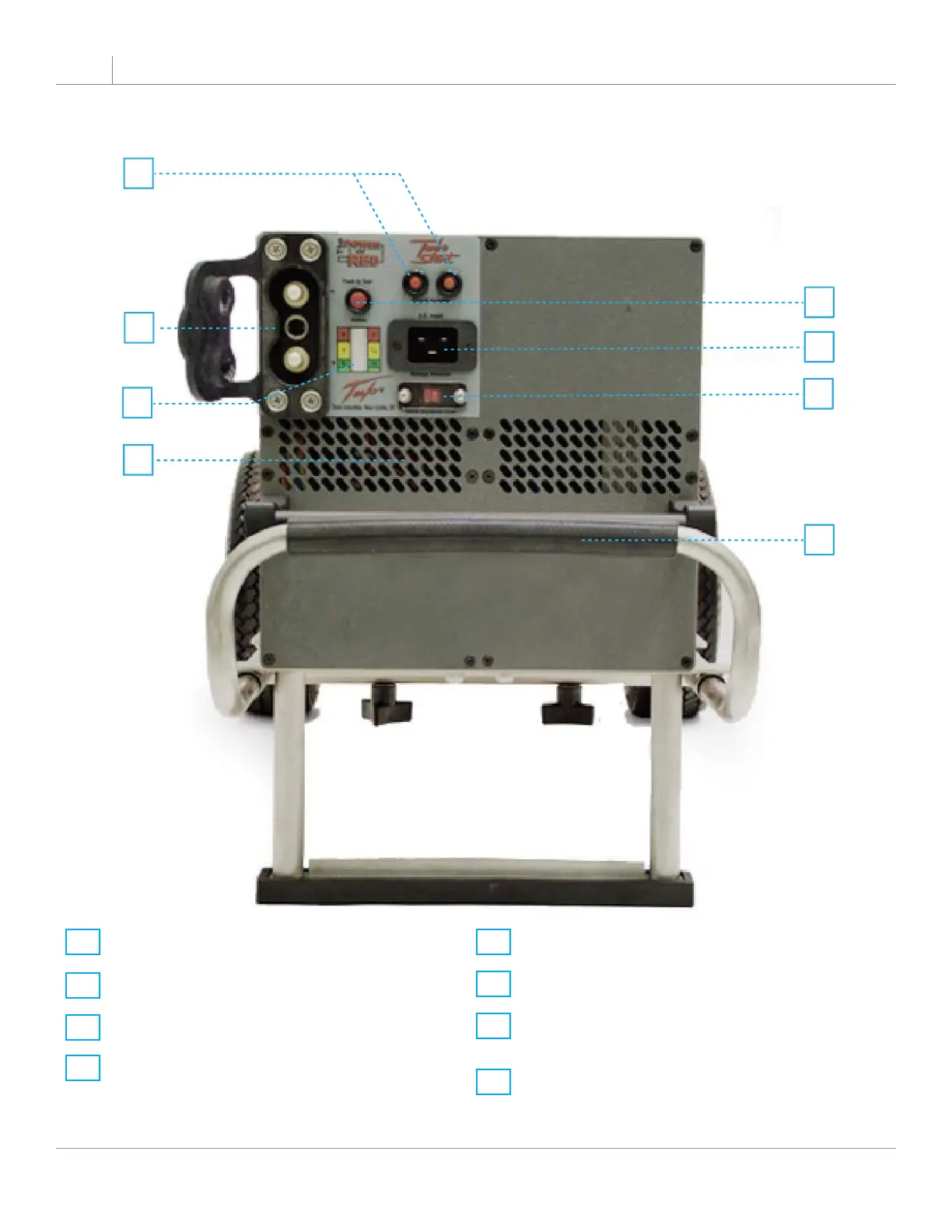

2.4 – Front Panel Overview
AC Input Circuit Breakers1. – Trips if over-current
default condition occurs.
24 Vdc Output Connector2. – Provides 24 Vdc to 28.5
Vdc @ 50 A.
24 Vdc Capacity Meter 3. – Indicates the 24V battery
charge state/power output status.
Air Intake Ports4. – Provide airow for cooling internal
electronics.
“Push to Test” Button5. – Displays current battery
charge state when pressed.
AC Input Connector6. – Connects to standard 100-130
Vac line voltage or 200-260 Vac line voltage.
Input Voltage Selector Switch7. - Allows Unit to operate
within voltage range of either 100-130 Vac or 200-260
Vac.
Telescoping Handle8. – Allows for easy transport of unit.
3
4
6
1
2
5
7
8
1
2
5
3
6
8
4
7
