Product Overview
2.6 – Physical Dimensions
2.7 – Airow Ports
CAUTION
Damage may occur if the TI3500 GPU’s air intake or outlet ports are obstructed. Ensure
that ports are clear at all times.
When the TI3500 GPU-24 is plugged into single-phase 100-260 Vac, 50/60 Hz ac power, the internal cooling
system will efciently regulate unit temperature regardless of load. At room temperature (+77°F) the exhaust
air will not exceed the ambient temperature by more than 5°F. In more extreme temperatures (greater than
90°F) the exhaust air will not exceed the ambient temperature by more than 10°F.
10.5 [266.7]
19.25 [488.95]
15.97 [405.64]
37.28 [946.91]

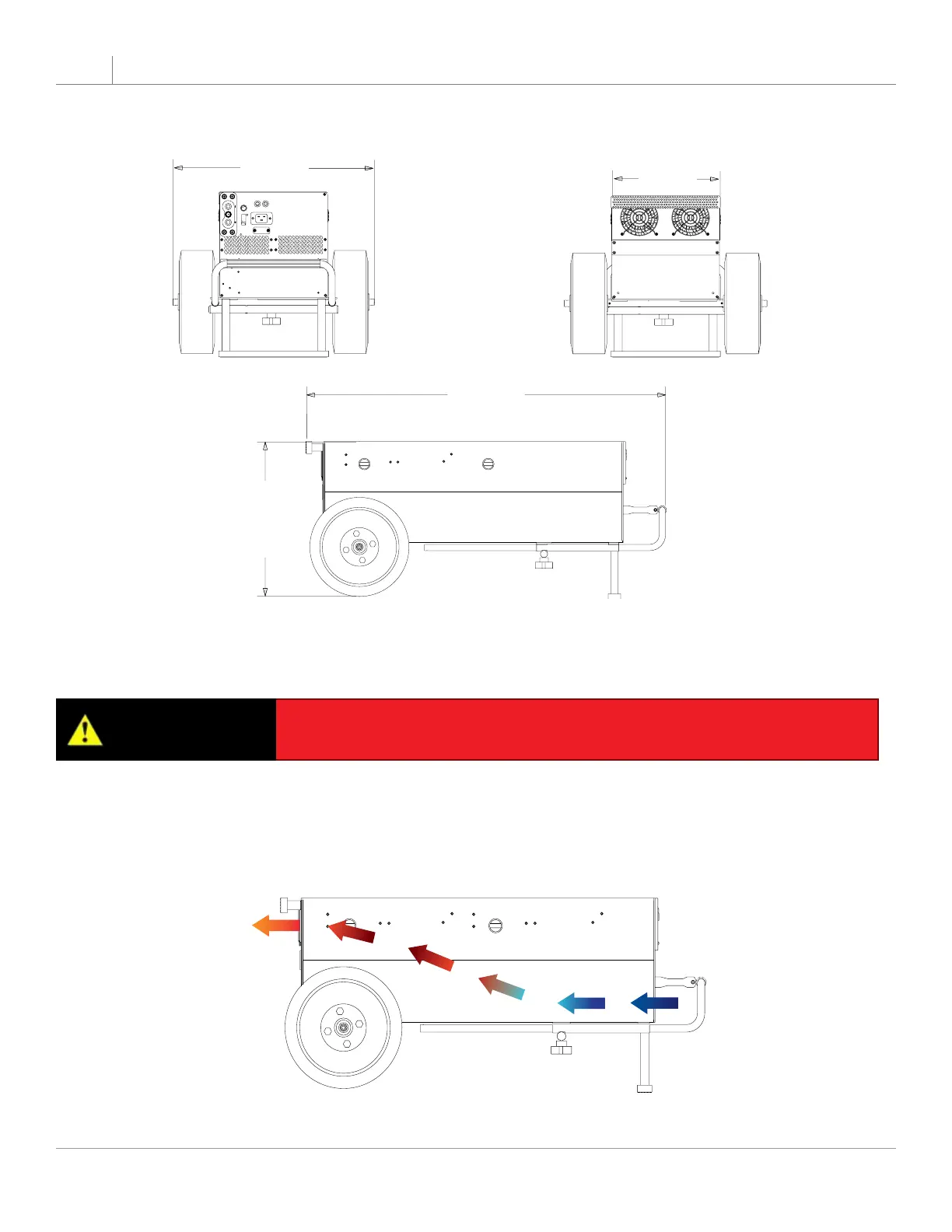

Figure 2.6.1 – TI3500 GPU-24 physical dimensions
Figure 2.7.1 – Air intake and exhaust ports and internal air circulation
