Tesla TIMV3500 GPU-24 - Universal Front Panel Overview

TI3500 GPU-24
7
2
Product Overview

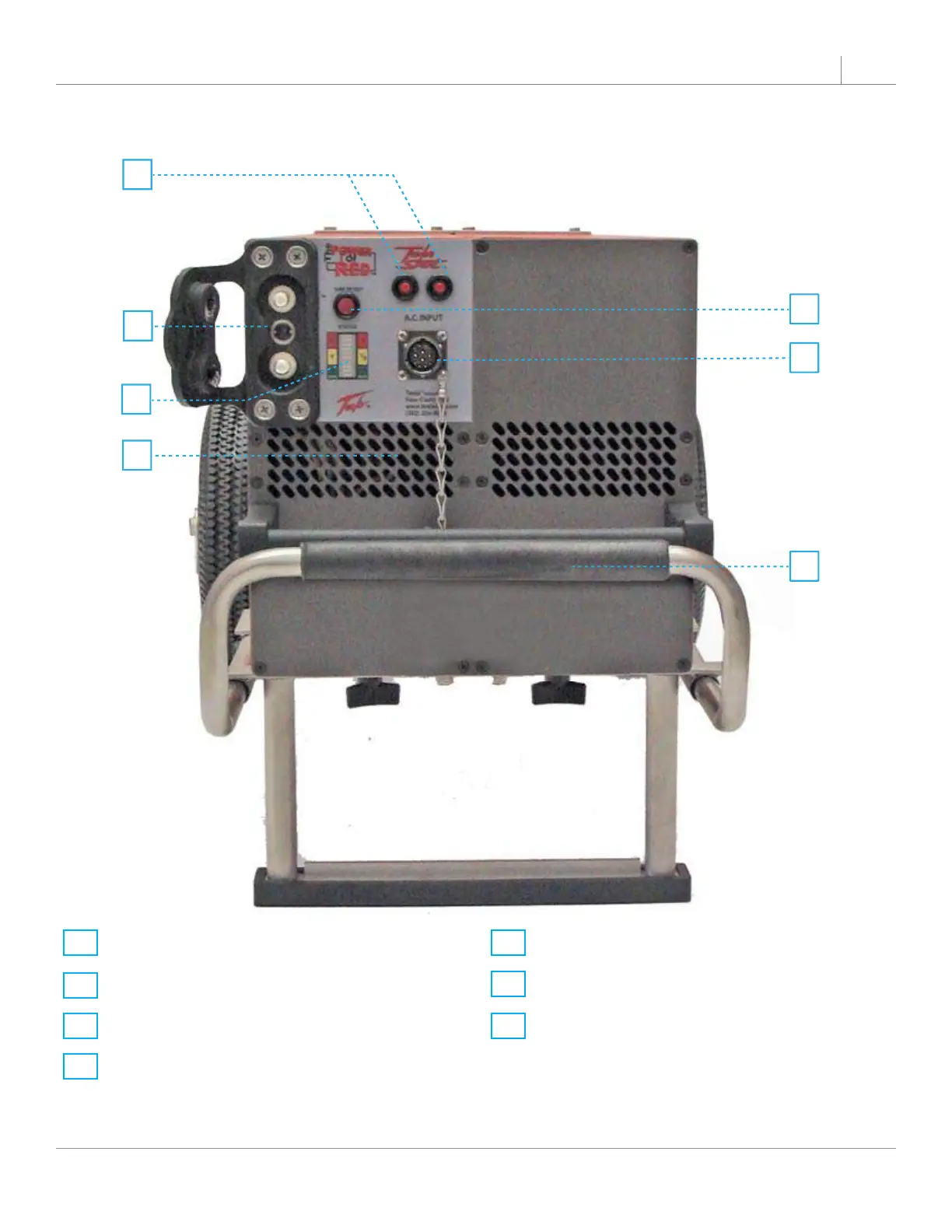

2.5 – Universal Front Panel Overview
AC Input Circuit Breakers1. – Trips if over-current default
condition occurs.
24 Vdc Output Connector2. – Provides 24 Vdc to 28.5
Vdc @ 50 A.
24 Vdc Capacity Meter 3. – Indicates the 24V battery
charge state/power output status.
Air Intake Ports4. – Provide airow for cooling internal
electronics.
“Push to Test” Button5. – Displays current battery
charge state when pressed.
AC Input Connector6. – Connects to standard 100-130
Vac line voltage or 200-260 Vac line voltage.
Telescoping Handle7. – Allows for easy transport of unit.
3
4
6
1
2
5
7
1
2
5
3
6
7
4
