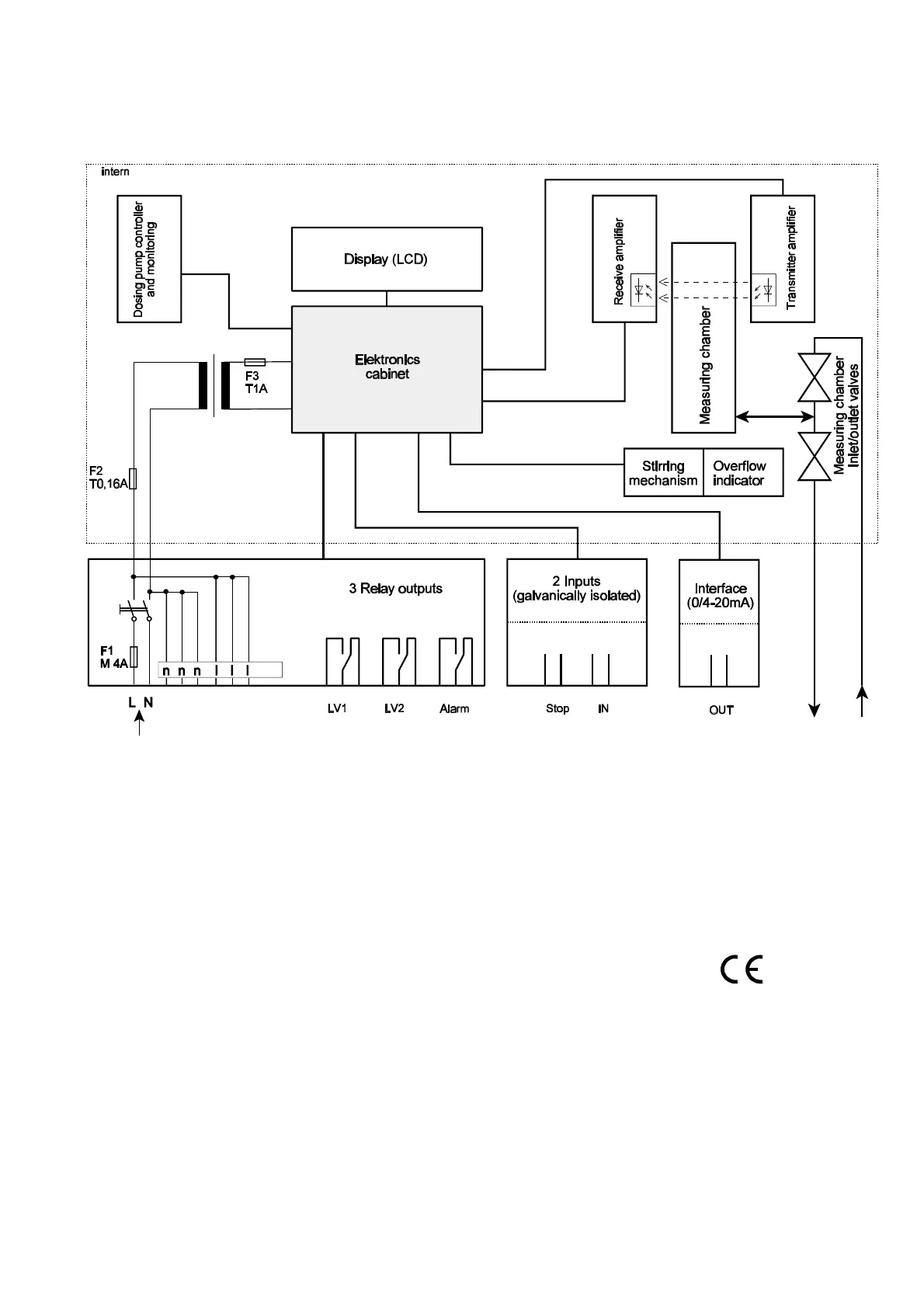

Block diagram Testomat
®
ECO
Technical data
Power supply: 230 V or 24 V ± 10 %, 50 - 60 Hz, fuse M4A
Unit protection: 230 V: T0.1A
24 V: T1.0A
Power consumption: max. 30VA
Degree of protection: IP 65
Protection class: I
Conformity: EN50081-1, EN50082-2, EN 61010-1
Ambient temperature: 10 - 45 °C
Contact rating of the relay outputs: 4 A resistive load, fuse M4A
Measuring range: see page 1
Interface: 0/4 - 20 mA, max. load 500 Ù (optional)
Water supply: 0.1 - 8 bar = 10
4
- 8 x 10
5
Pa
Water temperature: max. 40 °C
Dimensions (W x H x D): 380 x 480 x 280 mm
Weight: approx. 9 kg
