50 exPANdINg The sTORAge sysTeM
© TESVOLT We reser ve the right to make technical changes. Version RD.TI.015.E.ENG_Installation_Manual_TS48V_v.C.01 Last revised 06/2020

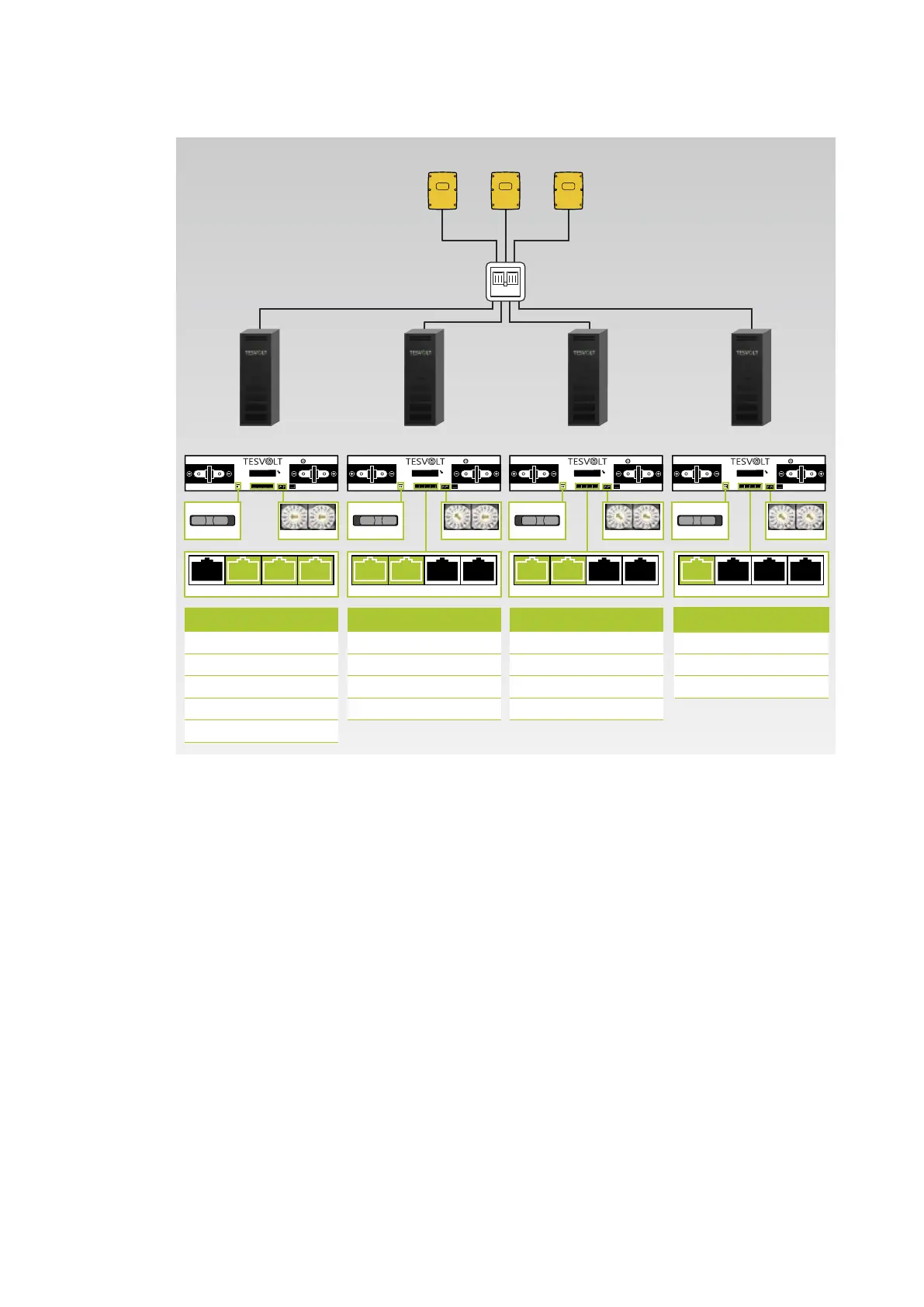

System with one master and three slaves
TERM
ON OFF
ADDRESS
BATTERY
CHARGER
Slave 2
TERM: OFF
ADDRESS: 2/1
CAN IN > CAN OUT Slave 1
CAN OUT > CAN IN Slave 3
ADDRESS
APU configuration for Slave 2
BATTERY
CHARGER
CAN IN CAN OUT CAN SMA LAN
TERM
ON OFF
Slave 3
TERM
ON OFF
ADDRESS
BATTERY
CHARGER
Slave 1Master
TERM: OFF
ADDRESS: 2/0
CAN IN > CAN OUT Master
CAN OUT > CAN IN Slave 2
TERM
ON OFF
CAN IN CAN OUT CAN SMA LAN
ADDRESS
APU configuration for Slave 1
BATTERY
CHARGER
TERM: ON
ADDRESS: 2/2
CAN IN > CAN OUT Slave 2
CAN IN CAN OUT CAN SMA LAN
APU configuration for Slave 3
TS 48 VTS 48 V TS 48 V TS 48 V
APU configuration for Master
TERM: ON
ADDRESS: 0/0
CAN OUT > CAN IN Slave 1
CAN SMA > ComSync IN
LAN > SWITCH
CAN IN CAN OUT CAN SMA LAN
SMA Sunny Islands
Bat Fuse B03
