1 RC3 REV COUNTER DESCRIPTION
RC3 is an universal rev counter (petrol and diesel motors) with an oil
temperature sensor; connect the RC3 to the processing unit either using a
cable (RS232 serial cable and USB) or using wireless Bluetooth
technology.
This new device works in combination with an emissions analysis unit.

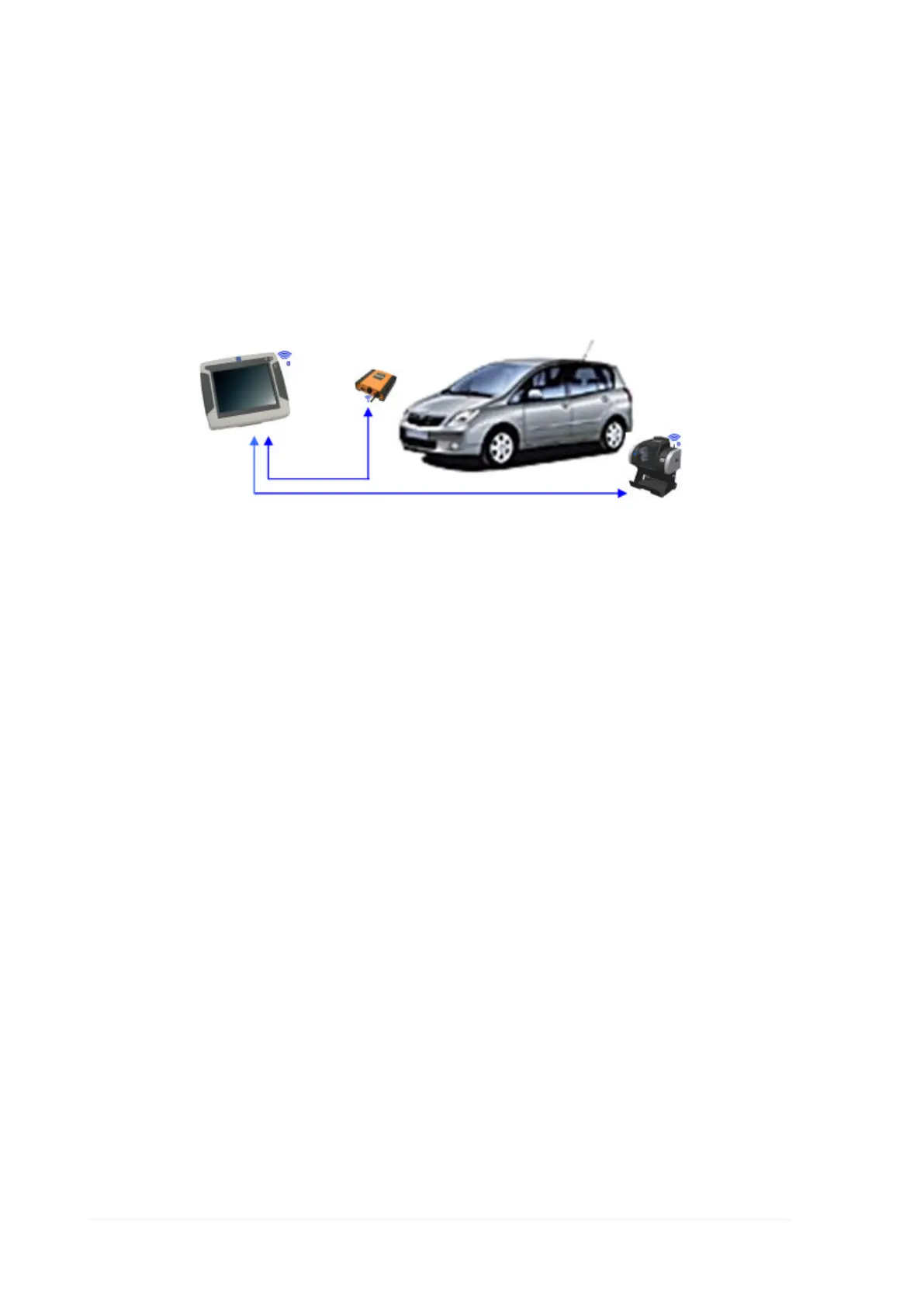

In the image above we can see the basic structure of how the RC3 rev
counter works in combination with other devices. In this case the RC3 is
used in combination with the GASBOX Autopower analysis chamber and
the AXONE 3 MOBILE viewing and processing unit.
All connections can be wireless.
The rev counter can carry out rpm detection using different acquisition
functions:
•
Battery signal detection
•
Battery ripple detection
•
Detection via amp clamp
•
Detection via piezoelectric sensor
•
Detection via OBD connection
20
