Proceed as follows:
NOTE: the numbering refers to the previous image.
1.
Connect the HPC cable to the rev counter via the appropriate connector
(5).
2.
Select the type of vehicle (car or truck) with the selector (3).
3.
Use the magnetic fastener (2) to fasten the junction box with the
microphone (1). The junction box must be facing the engine head.
4.
Connect the clamps (6) to the vehicle battery making sure the positive is
connected to the positive pole and the negative is correctly connected to the
negative pole.
Connect the negative (GND) pole first, then the positive pole.
If you are working on a truck, connect the clamps to the 24 V
terminal in the vehicle.

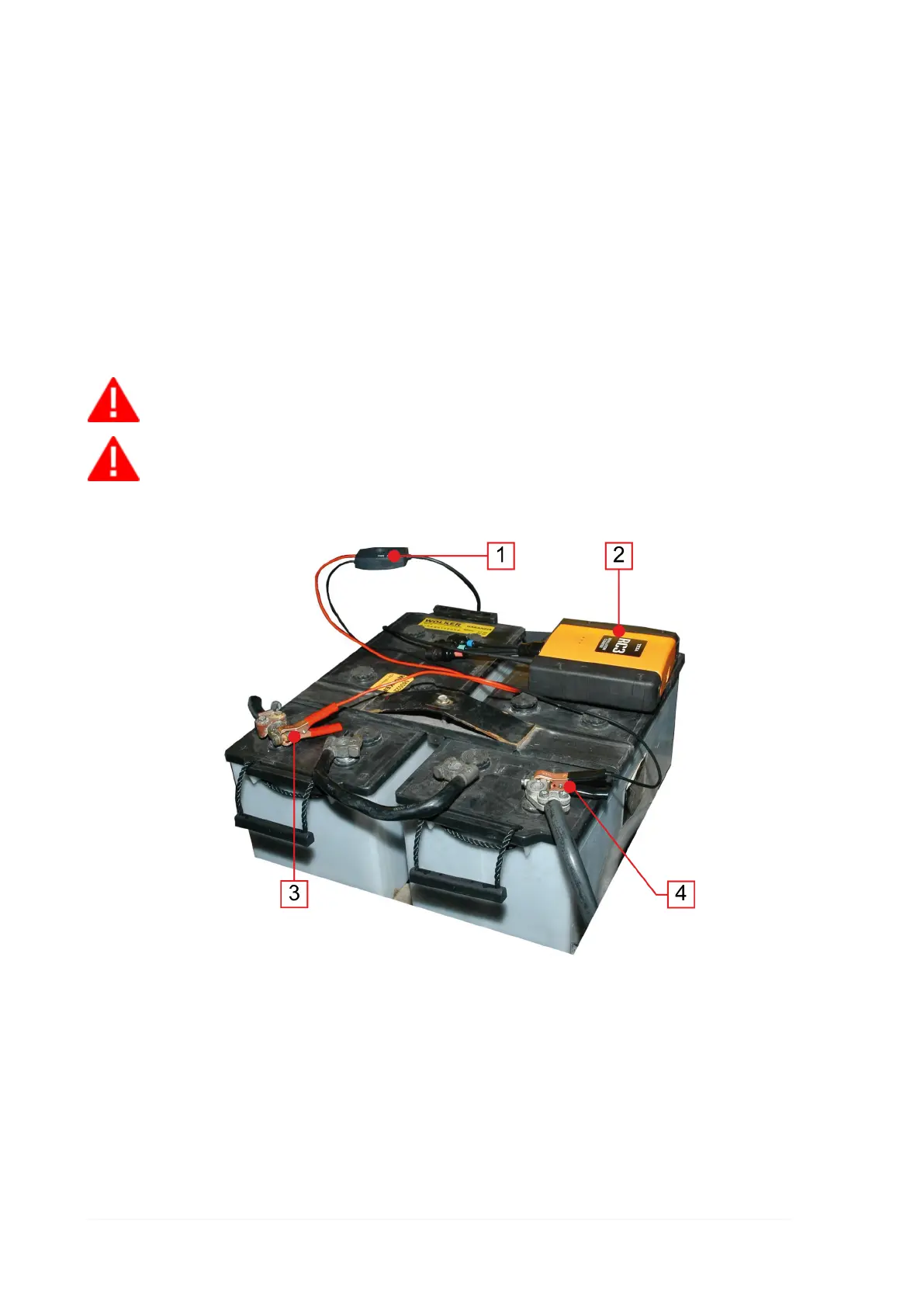

1.
CAR/TRUCK selector
2.
RC3
3.
Battery clamp: positive terminal
4.
Battery clamp: negative terminal
For further information regarding engine RPM detection using the battery
ripple method go to chapter Battery Cable and No Sensor Connected.
