Load Default and Check Lock Status
7
SNAU244–July 2019
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Quick Start
1.5 Load Default and Check Lock Status
NOTE: Hover over a register to read the register description in the bottom-left pane of the TICS Pro
window.
In the toolbar, go to "Default configurations" → "Default Startup". From there, go to "PLL" tab and select
the "Recalibrate" button, then "Check Lock Status". Watch for the green "locked" text to confirm that the
PLL is locked.

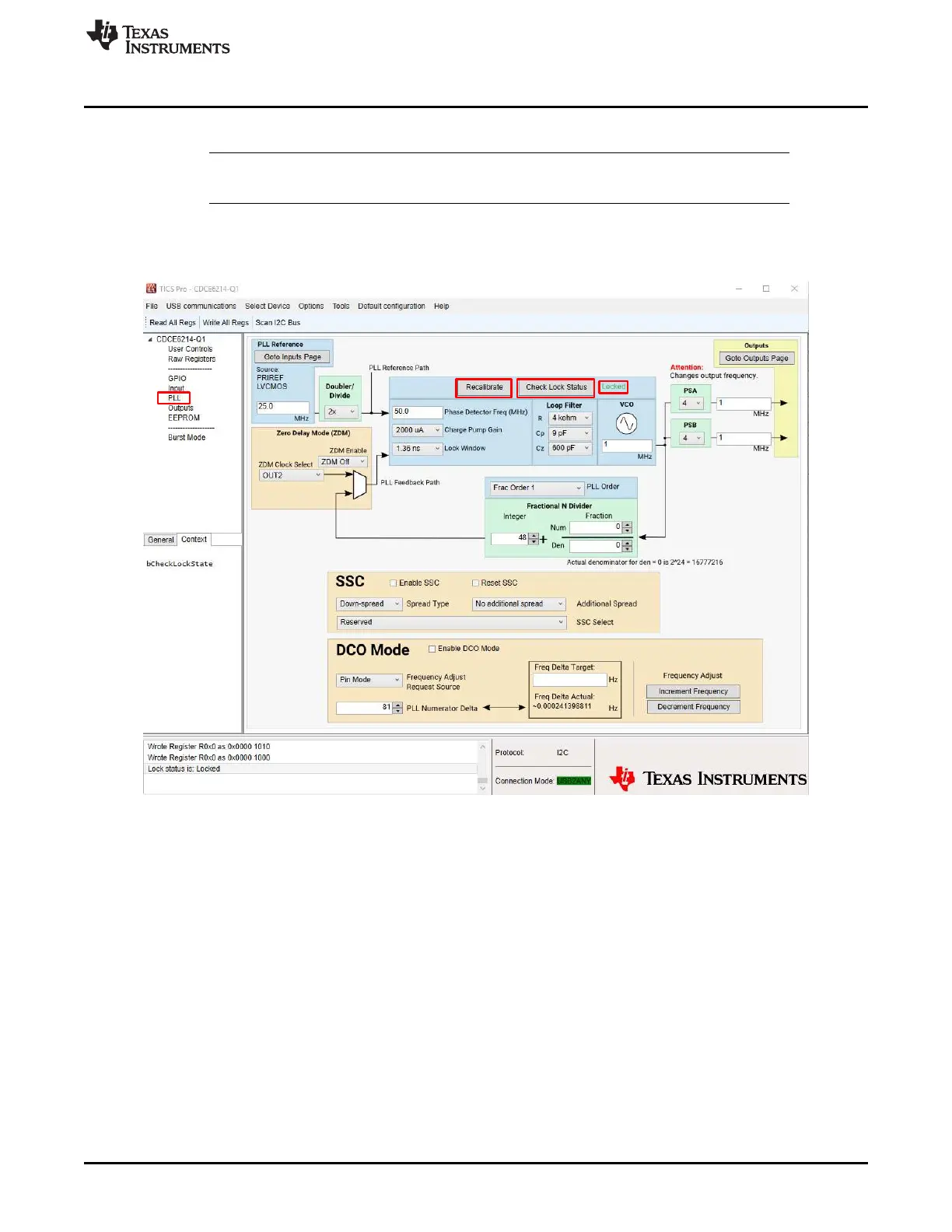

Figure 1-4. Check Lock Status
