Component Locations
www.ti.com
4.2 Component Locations
Plots of the top-side component locations are shown in Figure 4-1 and the board dimensions are shown in
Figure 4-2.

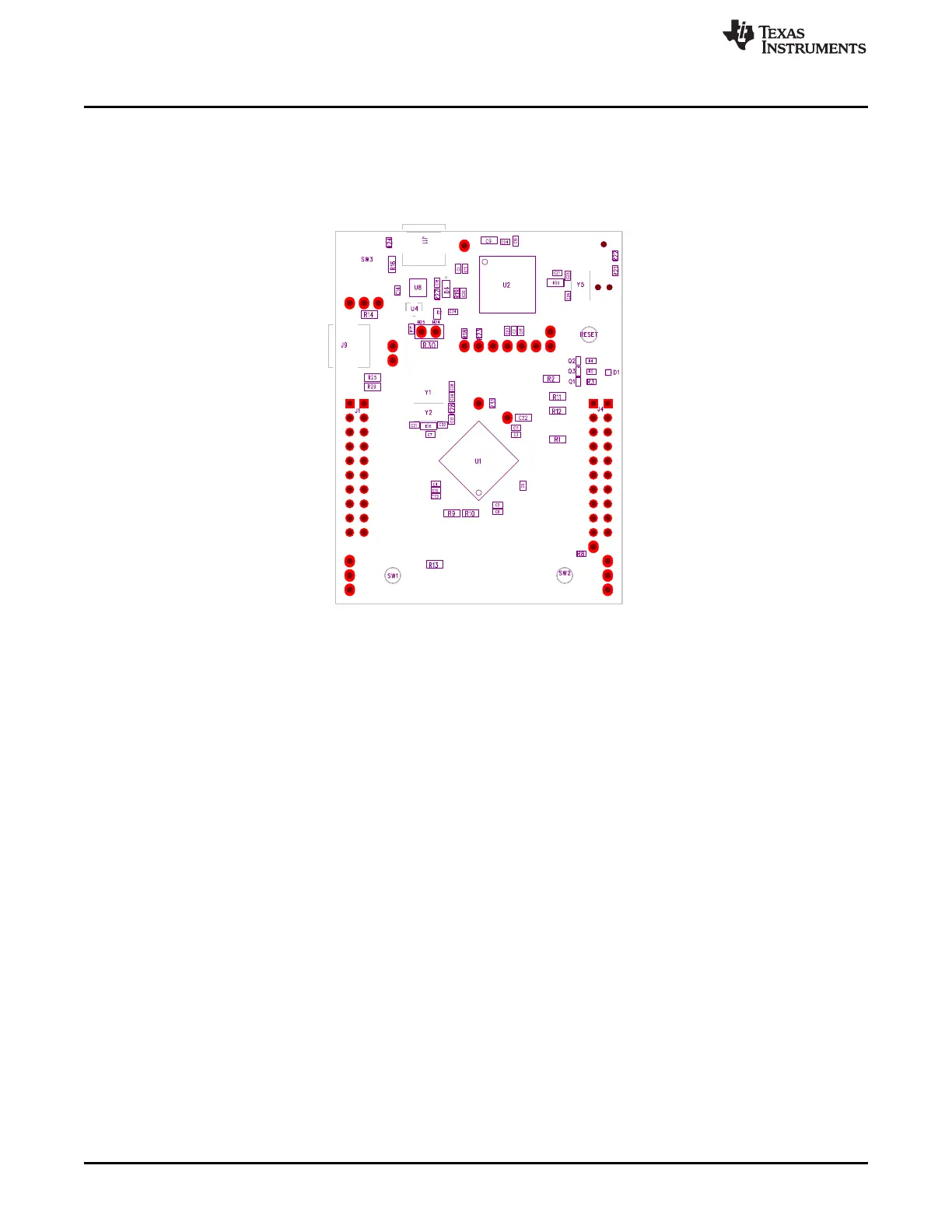

Figure 4-1. Tiva C Series LaunchPad Component Locations (Top View)
16
References, PCB Layout, and Bill of Materials SPMU296–April 2013
Submit Documentation Feedback
Copyright © 2013, Texas Instruments Incorporated
