www.ti.com
Bill of Materials (BOM)

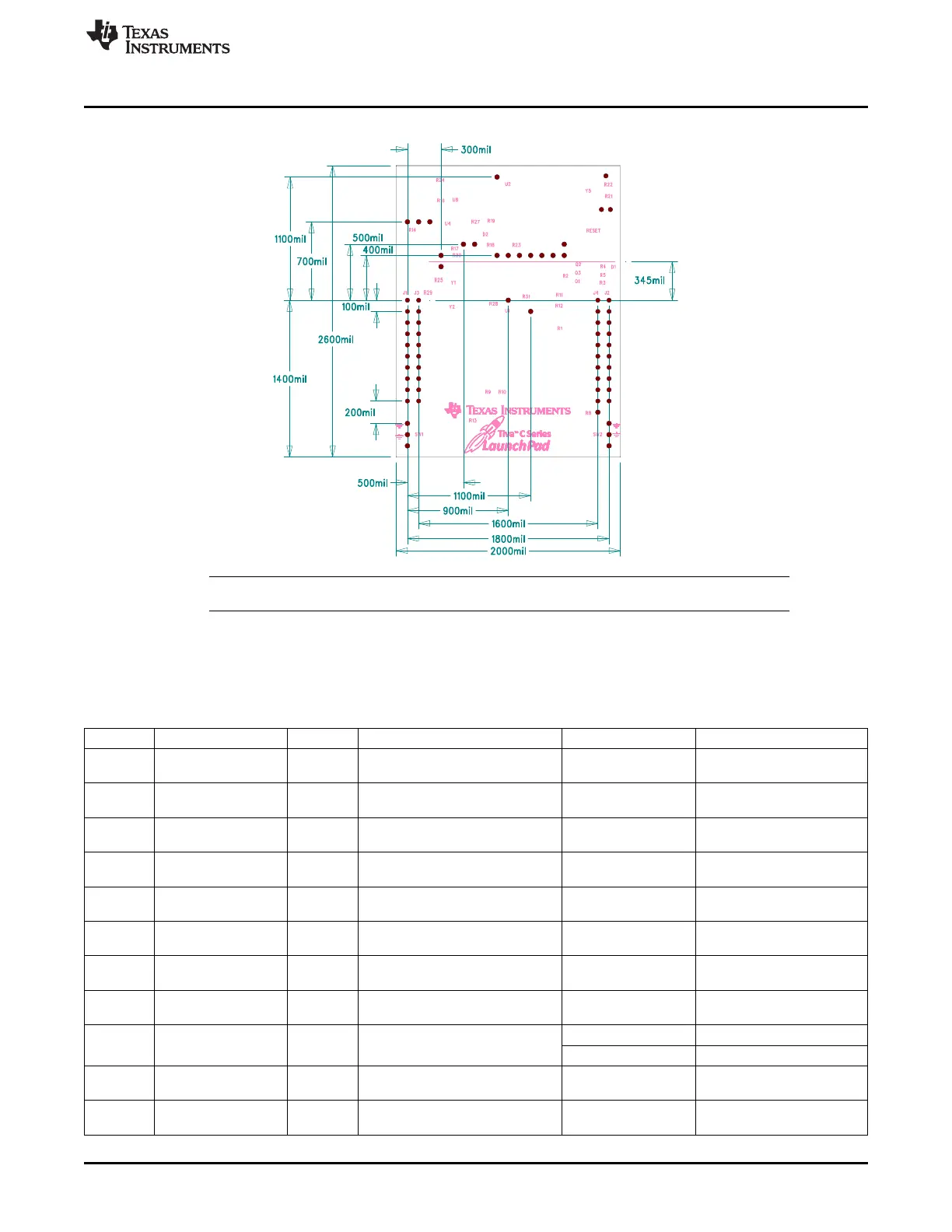

Figure 4-2. Tiva C Series LaunchPad Dimensions
NOTE: Units are in mils (one thousandth of an inch): 1 mil = 0.001 inch (0.0254 mm).
4.3 Bill of Materials (BOM)
Table 4-1 shows the bill of materials for the EK-TM4C123GXL evaluation board.
Table 4-1. EK-TM4C123GXL Bill of Materials
Item Ref Des Qty Description Manufacturer Manufacturer Part No
1 C1-2, C7, C12, C14 5 Capacitor, 0402, X5R, 10 V, Low Johanson Dielectrics 100R07X105KV4T
ESR Inc
2 C25-26, C31-32 4 Capacitor, 10 pF, 50 V, 5%, Murata GRM1555C1H100JZ01D
NPO/COG, 0402
3 C28-29 2 Capacitor, 24 pF, 50 V, 5%, TDK C1005C0G1H240J
NPO/COG, 0402
4 C3, C5, C8, C15, 7 Capacitor, 0.01 μF 25 V, 10% Taiyo Yuden TMK105B7103KV-F
C18-19, C21 0402 X7R
5 C4, C6, C10-11, C17, 8 Capacitor, 0.1 μF 16 V, 10% 0402 Taiyo Yuden EMK105B7104KV-F
C20, C23-24 X7R
6 C9, C22 2 Capacitor, 2.2 μF, 16 V, 10%, Murata GRM188R61C225KE15D
0603, X5R
7 D1 1 LED, Tri-Color RGB, 0404 SMD Everlight 18-038/RSGHBHC1-S02/2T
Common Anode
8 D4 1 LED, Green 565 nm, Clear 0805 Lite-On LTST-C171GKT
SMD
9 H24 1 Header, 1x2, 0.100, T-Hole, 3M 961102-6404-AR
Vertical Unshrouded, 0.220 Mate
FCI 68001-102HLF
10 H25 1 Jumper, 0.100, Gold, Black, Sullins SPC02SYAN
Closed
11 J1, J3 2 Header, 2x10, T-Hole Vertical Samtec SSW-110-23-S-D
unshrouded stacking
17
SPMU296–April 2013 References, PCB Layout, and Bill of Materials
Submit Documentation Feedback
Copyright © 2013, Texas Instruments Incorporated
