Texas Instruments LaunchPad MSP430G2553 User Manual

Hardware www.ti.com
14
SLAU772A–June 2018–Revised March 2020
Submit Documentation Feedback
Copyright © 2018–2020, Texas Instruments Incorporated
MSP430G2553 LaunchPad™ Development Kit (MSP ‑ EXP430G2ET)

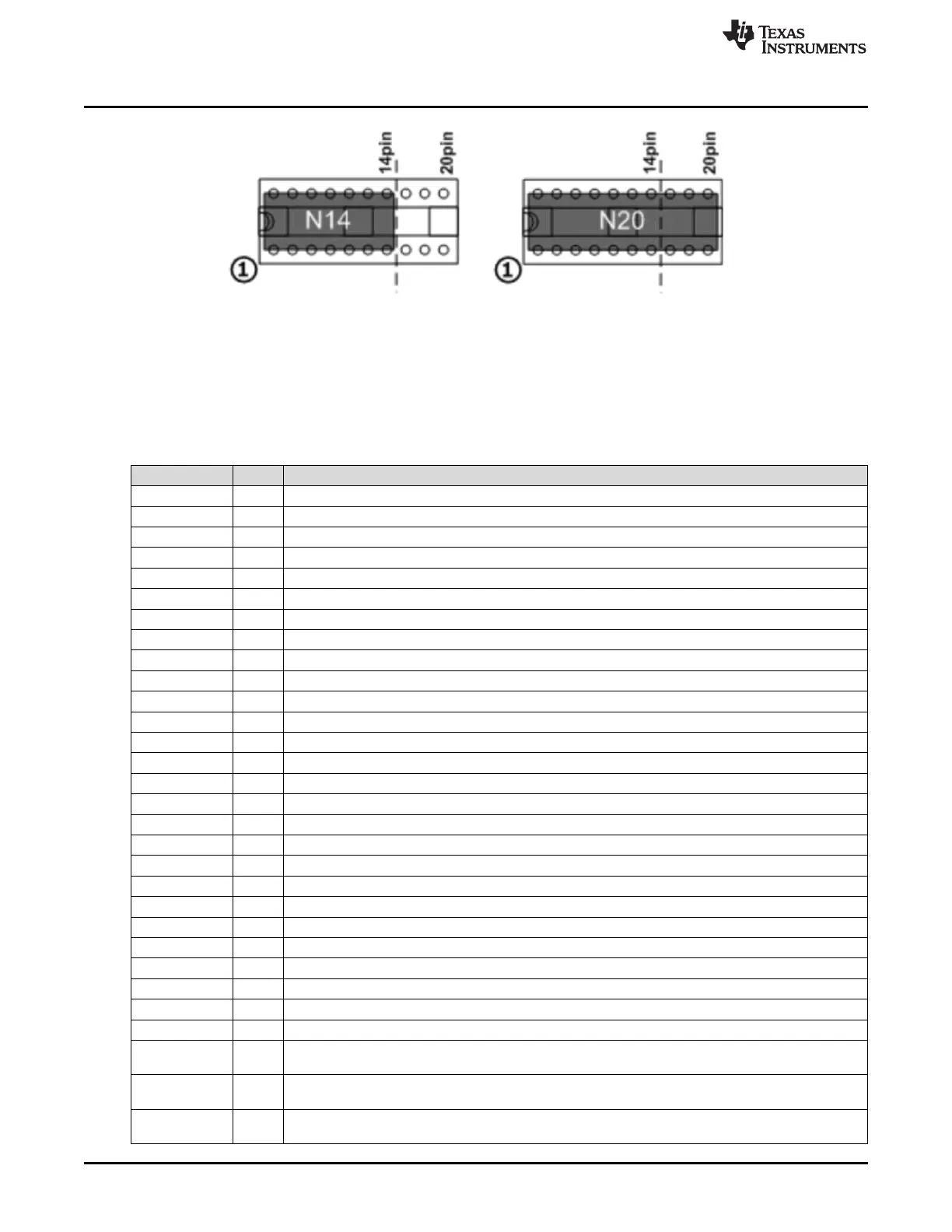

Figure 11. Insert Device Into Target Socket
2.9 Supported Devices
TI offers several MSP430 MCUs in a PDIP package that are compatible with this LaunchPad development
kit. Table 3 lists the supported MCUs.
Table 3. Supported Devices
Part Number Family Description
MSP430F2001 F2xx 16-bit Ultra-Low-Power Microcontroller, 1KB Flash, 128B RAM, Comparator
MSP430F2002 F2xx 16-bit Ultra-Low-Power Microcontroller, 1KB Flash, 128B RAM, 10-Bit SAR A/D, USI for SPI/I
2
C
MSP430F2003 F2xx 16-bit Ultra-Low-Power Microcontroller, 1KB Flash, 128B RAM, 16-Bit Sigma-Delta A/D, USI for SPI/I
2
C
MSP430F2011 F2xx 16-bit Ultra-Low-Power Microcontroller, 2KB Flash, 128B RAM, Comparator
MSP430F2012 F2xx 16-bit Ultra-Low-Power Microcontroller, 2KB Flash, 128B RAM, 10-Bit SAR A/D, USI for SPI/I
2
C
MSP430F2013 F2xx 16-bit Ultra-Low-Power Microcontroller, 2KB Flash, 128B RAM, 16-Bit Sigma-Delta A/D, USI for SPI/I
2
C
MSP430G2001 G2xx 16-bit Ultra-Low-Power Microcontroller, 512B Flash, 128B RAM
MSP430G2101 G2xx 16-bit Ultra-Low-Power Microcontroller, 1KB Flash, 128B RAM
MSP430G2111 G2xx 16-bit Ultra-Low-Power Microcontroller, 1KB Flash, 128B RAM, Comparator
MSP430G2121 G2xx 16-bit Ultra-Low-Power Microcontroller, 1KB Flash, 128B RAM, USI for SPI/I
2
C
MSP430G2131 G2xx 16-bit Ultra-Low-Power Microcontroller, 1KB Flash, 128B RAM, 10-Bit SAR A/D, USI for SPI/I
2
C
MSP430G2201 G2xx 16-bit Ultra-Low-Power Microcontroller, 2KB Flash, 128B RAM
MSP430G2211 G2xx 16-bit Ultra-Low-Power Microcontroller, 2KB Flash, 128B RAM, Comparator
MSP430G2221 G2xx 16-bit Ultra-Low-Power Microcontroller, 2KB Flash, 128B RAM, USI for SPI/I
2
C
MSP430G2231 G2xx 16-bit Ultra-Low-Power Microcontroller, 2KB Flash, 128B RAM, 10-Bit SAR A/D, USI for SPI/I
2
C
MSP430G2102 G2xx 16-bit Ultra-Low-Power Microcontroller, 1KB Flash, 256B RAM, USI for SPI/I
2
C
MSP430G2202 G2xx 16-bit Ultra-Low-Power Microcontroller, 2KB Flash, 256B RAM, USI for SPI/I
2
C
MSP430G2302 G2xx 16-bit Ultra-Low-Power Microcontroller, 4KB Flash, 256B RAM, USI for SPI/I
2
C
MSP430G2402 G2xx 16-bit Ultra-Low-Power Microcontroller, 8KB Flash, 256B RAM, USI for SPI/I
2
C
MSP430G2112 G2xx 16-bit Ultra-Low-Power Microcontroller, 1KB Flash, 256B RAM, Comparator, USI for SPI/I
2
C
MSP430G2212 G2xx 16-bit Ultra-Low-Power Microcontroller, 2KB Flash, 256B RAM, Comparator, USI for SPI/I
2
C
MSP430G2312 G2xx 16-bit Ultra-Low-Power Microcontroller, 4KB Flash, 256B RAM, Comparator, USI for SPI/I
2
C
MSP430G2412 G2xx 16-bit Ultra-Low-Power Microcontroller, 8KB Flash, 256B RAM, Comparator, USI for SPI/I
2
C
MSP430G2132 G2xx 16-bit Ultra-Low-Power Microcontroller, 1KB Flash, 256B RAM, 10-Bit SAR A/D, USI for SPI/I
2
C
MSP430G2232 G2xx 16-bit Ultra-Low-Power Microcontroller, 2KB Flash, 256B RAM, 10-Bit SAR A/D, USI for SPI/I
2
C
MSP430G2332 G2xx 16-bit Ultra-Low-Power Microcontroller, 4KB Flash, 256B RAM, 10-Bit SAR A/D, USI for SPI/I
2
C
MSP430G2432 G2xx 16-bit Ultra-Low-Power Microcontroller, 8KB Flash, 256B RAM, 10-Bit SAR A/D, USI for SPI/I
2
C
MSP430G2152 G2xx
16-bit Ultra-Low-Power Microcontroller, 1KB Flash, 256B RAM, 10-Bit SAR A/D, Comparator, USI for
SPI/I
2
C
MSP430G2252 G2xx
16-bit Ultra-Low-Power Microcontroller, 2KB Flash, 256B RAM, 10-Bit SAR A/D, Comparator, USI for
SPI/I
2
C
MSP430G2352 G2xx
16-bit Ultra-Low-Power Microcontroller, 4KB Flash, 256B RAM, 10-Bit SAR A/D, Comparator, USI for
SPI/I
2
C
