March 2009 SNAU028A 5
3.0. Example #1: Quick Start – DC Reading
The following procedures show a quick method to assemble the LMP90100EB and perform a quick DC
voltage reading.
A. LMP90100 EB Jumper Connections
1. The jumpers for this example application can be seen in Figure 3 and Table 1. Jumpers not
shown can be left unpopulated.
2. The SPIO-4 board is properly setup out of the box (no assembly required).
3. The schematic for the LMP90100EB can be seen section 10.

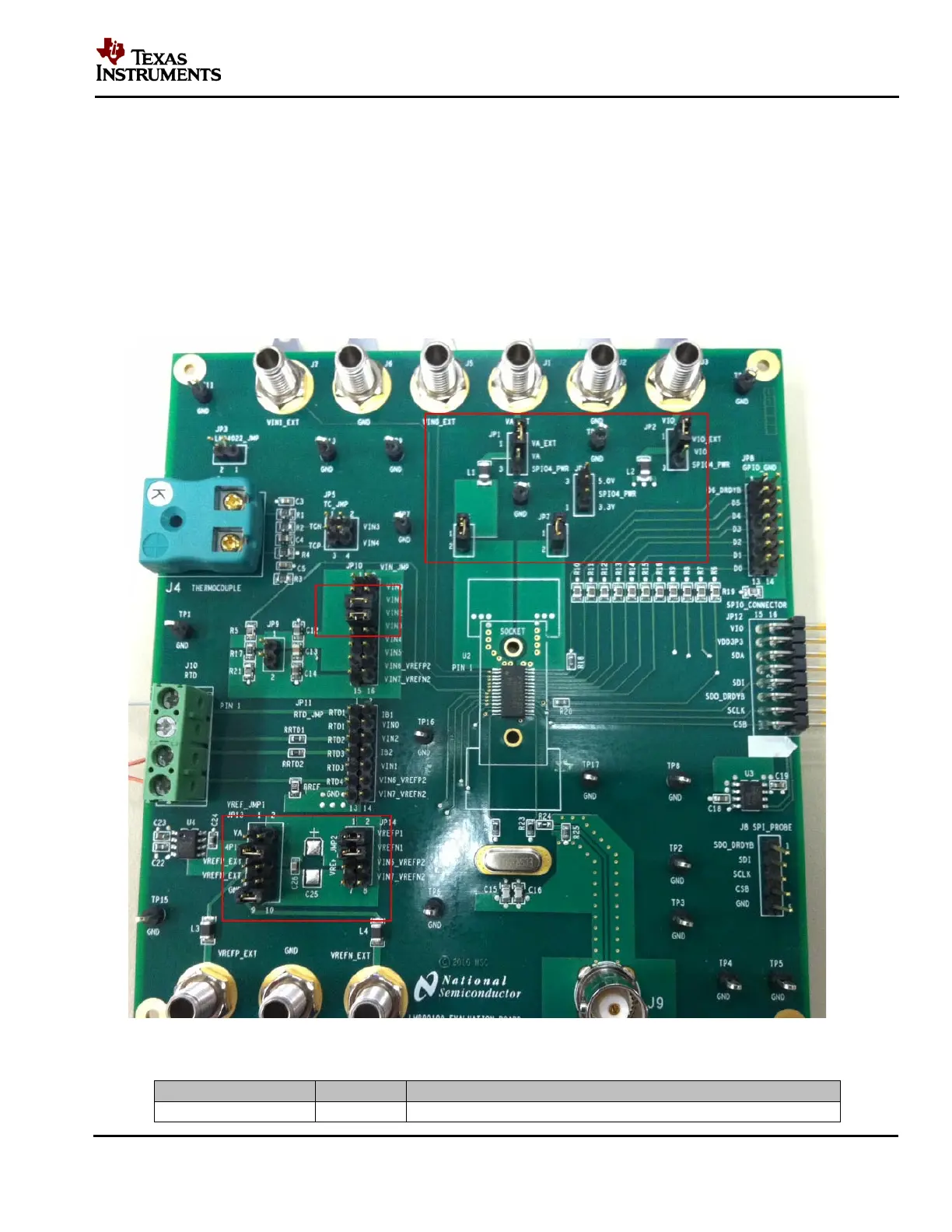

Figure 3 – Jumper Settings (Default) for the DC Test
