The TMS34010 C Language

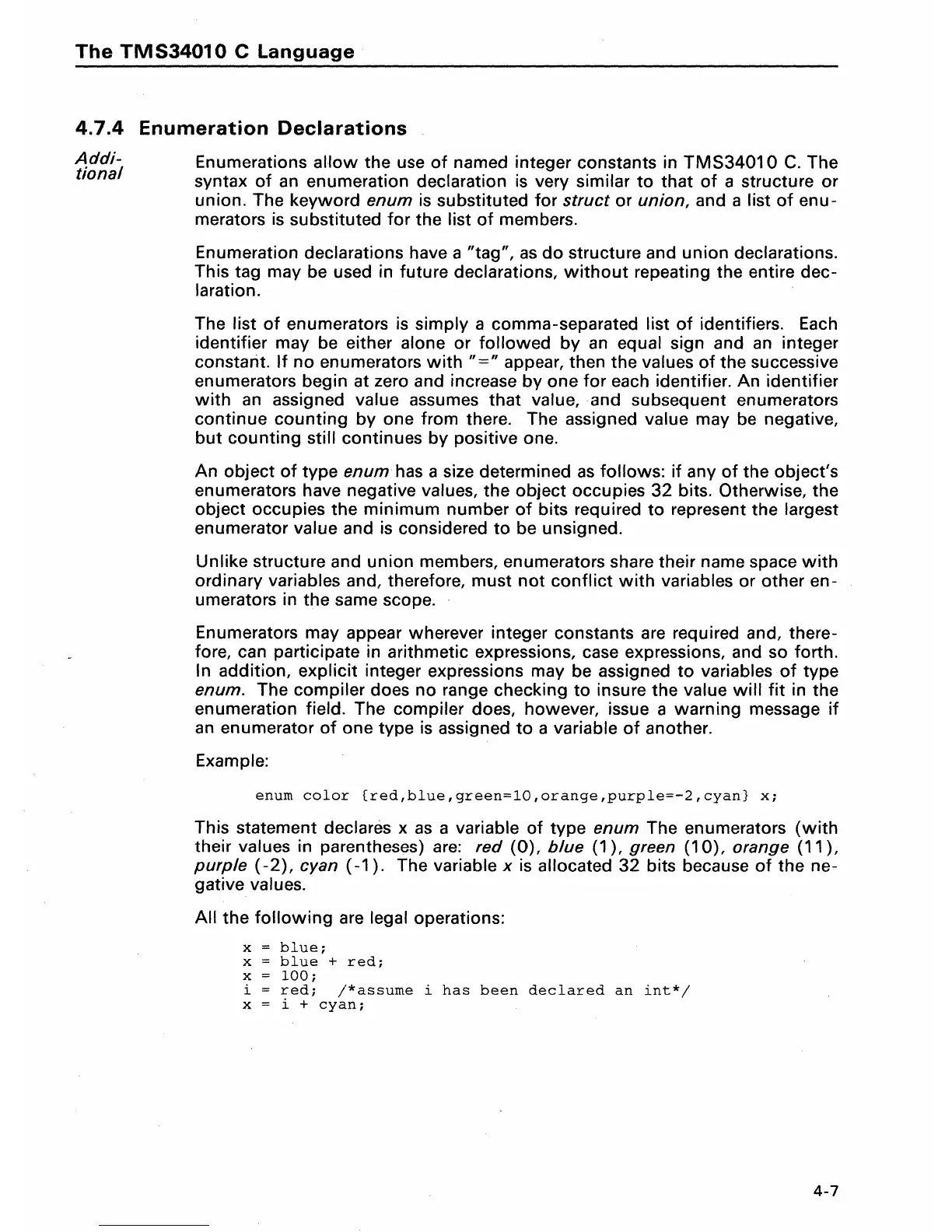

4.7.4 Enumeration Declarations
Addi-
tional
Enumerations allow the use of named integer constants in TMS34010 C. The
syntax
of an enumeration declaration is very similar to that of a structure or
union. The keyword enum is substituted for struct or union, and a list of enu-
merators
is substituted for the list of members.
Enumeration declarations have a
"tag", as do structure and union declarations.
This tag may be used in future declarations,
without repeating the entire dec-
laration.
The list
of enumerators is simply a comma-separated list of identifiers. Each
identifier may be either alone or followed by an equal sign and an integer
constant.
If no enumerators with "=" appear, then the values of the successive
enumerators begin at zero and increase
by one for each identifier. An identifier
with an assigned value assumes that value, -and subsequent enumerators
continue
counting by one from there. The assigned value may be negative,
but counting still continues by positive one.
An object
of type enum has a size determined as follows: if any of the object's
enumerators have negative values, the object occupies
32 bits. Otherwise, the
object occupies the minimum number
of bits required to represent the largest
enumerator value
and is considered to be unsigned.
Unlike structure and union members, enumerators share their name space
with
ordinary variables and, therefore, must not conflict with variables or other en-
umerators in the same scope.
Enumerators may appear wherever integer constants are required
and, there-
fore, can participate in arithmetic expressions, case expressions, and so forth.
In addition, explicit integer expressions may be assigned to variables of type
enum. The compiler does no range checking
to insure the value will fit in the
enumeration field. The compiler does, however, issue a warning message
if
an enumerator of one type is assigned to a variable of another.
Example:
enum color (red,blue,green=10,orange,purple=-2,cyan} x;
This statement declares x as a variable of type enum The enumerators (with
their values in parentheses) are: red (0), blue (1), green (10), orange (11),
purple (-2), cyan (-1). The variable x is allocated 32 bits because of the ne-
gative values.
All the following are legal operations:
x = blue;
x = blue + red;
x 100;
ired; /*assume i has been declared an int*/
x = i + cyan;
4-7
