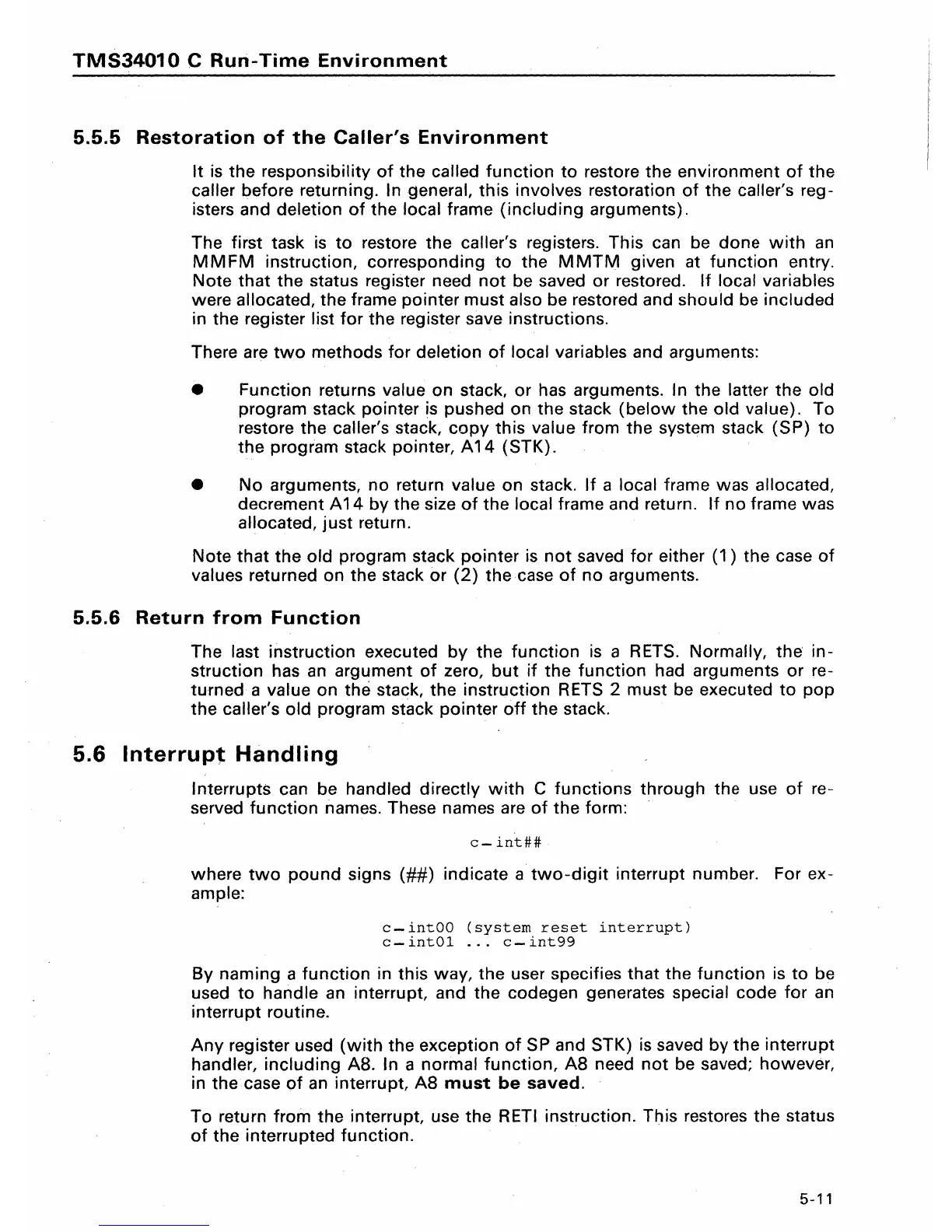

TMS34010 C Run-Time Environment
5.5.5 Restoration of the Caller's Environment
It is the responsibility of the called function to restore the environment of the
caller before returning. In general, this involves restoration of the caller's reg-
isters and
deletion of the local frame (including arguments).
The first task
is to restore the caller's registers. This can be done with an
MMFM instruction, corresponding to the MMTM given at function entry.
Note
that the status register need not be saved or restored. If local variables
were allocated, the frame pointer must also be restored and shouid be included
in the register list for the register save instructions.
There
are two methods for deletion of local variables and arguments:
• Function returns value on stack, or has arguments. In the latter the old
program stack pointer is pushed on the stack (below the old value). To
restore the
caller's stack, copy this value from the system stack (SP) to
the program stack pointer, A14 (STK).
• No arguments, no return value on stack. If a local frame was allocated,
decrement A14 by the size of the local frame and return. If no frame was
allocated, just return.
Note
that the old program stack pointer is not saved for either (1 ) the case of
values returned on the stack or (2) the case of no arguments.
5.5.6 Return from Function
The last instruction executed by the function is a RETS. Normally, the' in-
struction has an argument of zero, but if the function had arguments or re-
turned a
value on the stack, the instruction RETS 2 must be executed to pop
the caller's old program stack pointer off the stack,
5.6 Interrupt Handling
Interrupts can be handled directly with C functions through the use of re-
served function names. These names
are of the form: .
c- int##
where two pound signs (##) indicate a two-digit interrupt number. For ex-
ample:
c-intOO (system reset interrupt)
c-intOl .,. c-int99
By naming a function in this way, the user specifies that the function is to be
used
to handle an interrupt, and the codegen generates special code for an
interrupt routine.
Any register used (with the exception of SP and STK) is saved by the interrupt
handler, including AB. In a normal function, A8 need not be saved; however,
in the case of an interrupt, A8 must be saved.
To return from the interrupt, use the RETI instruction. This restores the status
of the interrupted function, .
