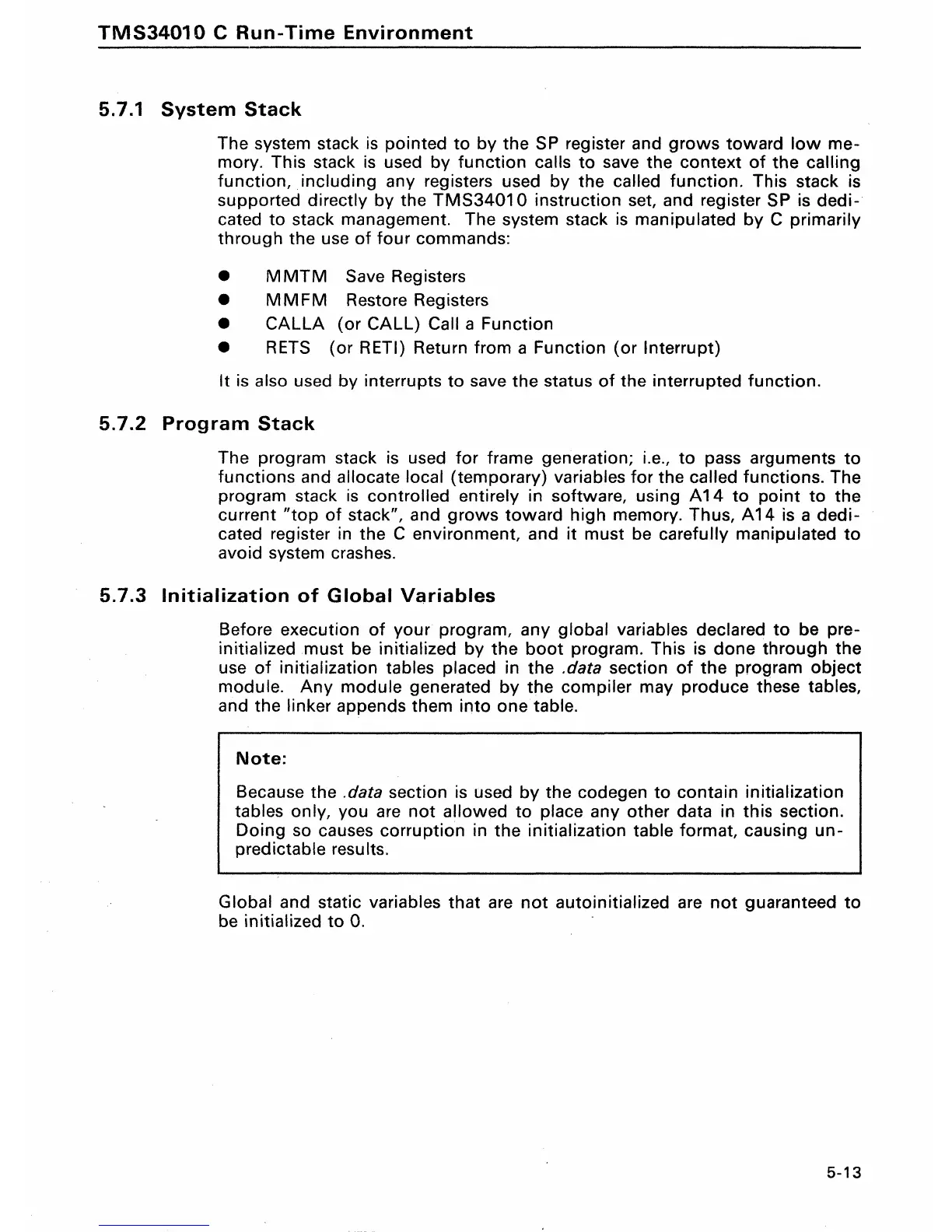

Texas Instruments TMS34010 User Manual

TMS34010 C Run-Time Environment
5.7.1 System Stack
The system stack is pointed to by the SP register and grows toward low me-
mory. This stack
is used by function calls to save the context of the calling
function, including any registers used by the called function. This stack is
supported directly by the TMS3401 0 instruction set, and register SP is dedi-
cated
to stack management. The system stack is manipulated by C primarily
through the use of four commands:
• MMTM Save Registers
• MMFM Restore Registers
• CALLA (or CALL) Call a Function
• RETS (or RETI) Return from a Function (or Interrupt)
It is also used by interrupts to save the status of the interrupted function.
5.7.2 Program Stack
The program stack is used for frame generation; i.e., to pass arguments to
functions and allocate local (temporary) variables for the called functions. The
program stack
is controlled entirely in software, using A14 to point to the
current
"top of stack", and grows toward high memory. Thus, A14 is a dedi-
cated register in the C environment, and it must be carefully manipulated to
avoid system crashes.
5.7.3 Initialization of Global Variables
Before execution of your program, any global variables declared to be pre-
initialized must be initialized by the boot program. This is done through the
use
of initialization tables placed in the .data section of the program object
module. Any module generated by the compiler may produce these tables,
and the linker appends them into one table.
Note:
Because the .data section is used by the codegen to contain initialization
tables only,
you are not allowed to place any other data in this section.
Doing so causes corruption in the
initialization table format, causing un-
predictable results.
Global
and static variables that are not autoinitialized are not guaranteed to
be initialized to O.
5-13
