Adjustment
33
13
.05 Adjusting the basic machine
13
.05.01 Positioning the feed dog across the direction of sewing
Requirement
The bottom feed dog must be the same distance from the left and right side of the need-
le-plate cutout.
Loosen screws 1 and 2.
Laterally align rock shaft 3 in accordance with the requirement.
Now tighten screws 1.
4 1 and rock
shaft 3 must exhibit neither play nor stiffness.
Screws 2 remain loose for the following adjustments..

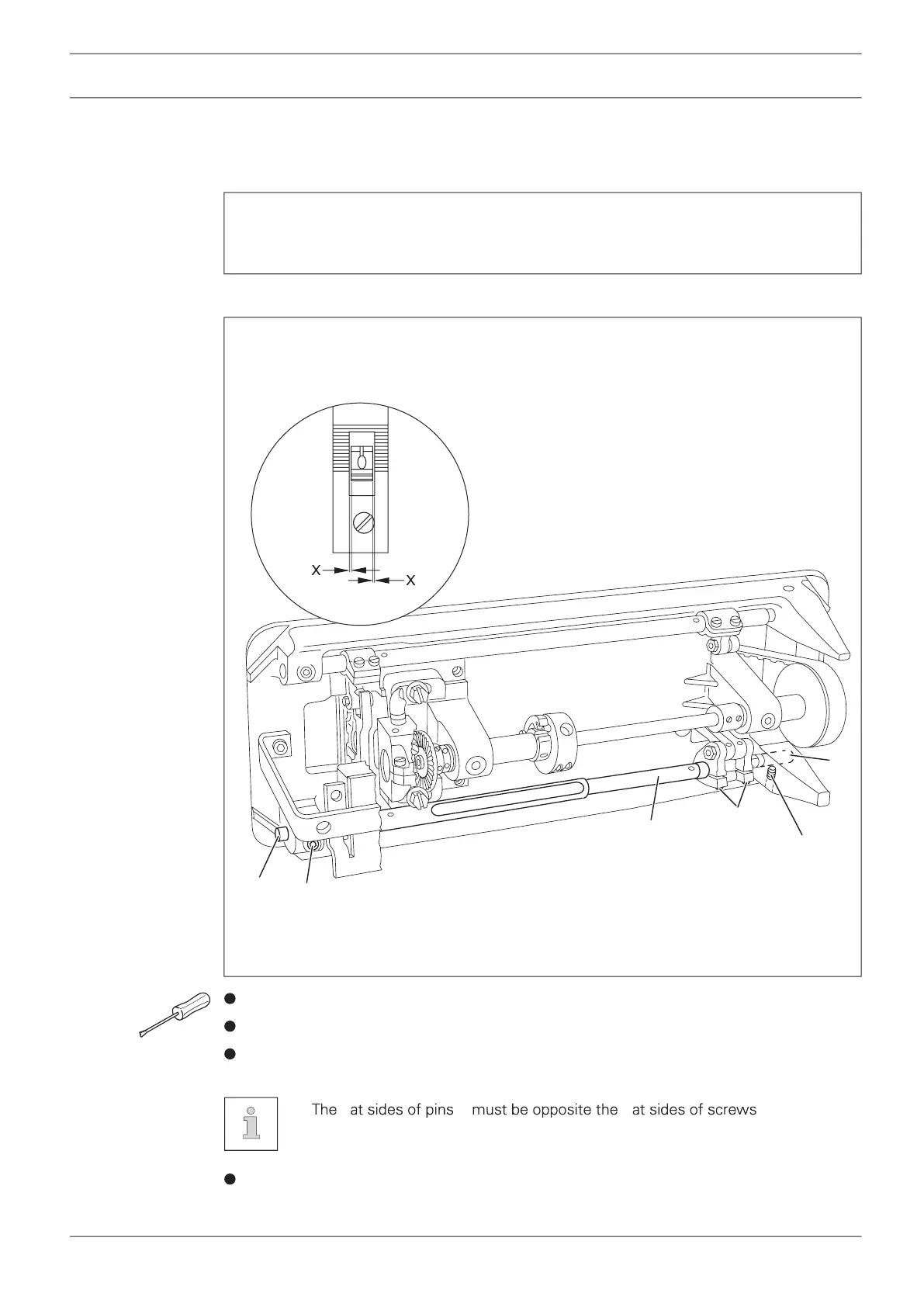

Fig. 13 - 01
4
1
2
3
1
4
