.05.05 Centering the needle in the needle hole
Requirement
With the stitch length set at "0", the needle must enter the needle hole exactly in the
middle.
Unscrew vibrating presser 1 and presser foot 2.
Set stitch length "0" and bring the needle bar to its TDC.
Insert a new needle. Loosen screws 3, 4, 5 and 6.
Position the needle directly over the bottom feed dog by turning the handwheel.
Move needle bar frame 7 in accordance with the requirement.
Tighten screws 3, 4 and 5.
Position stop 8 so that it is touching needle bar frame 7 and tighten screw 6.
The movement of needle bar frame 7 in guide 9 and of the top feed drive bars
must not be stiff.

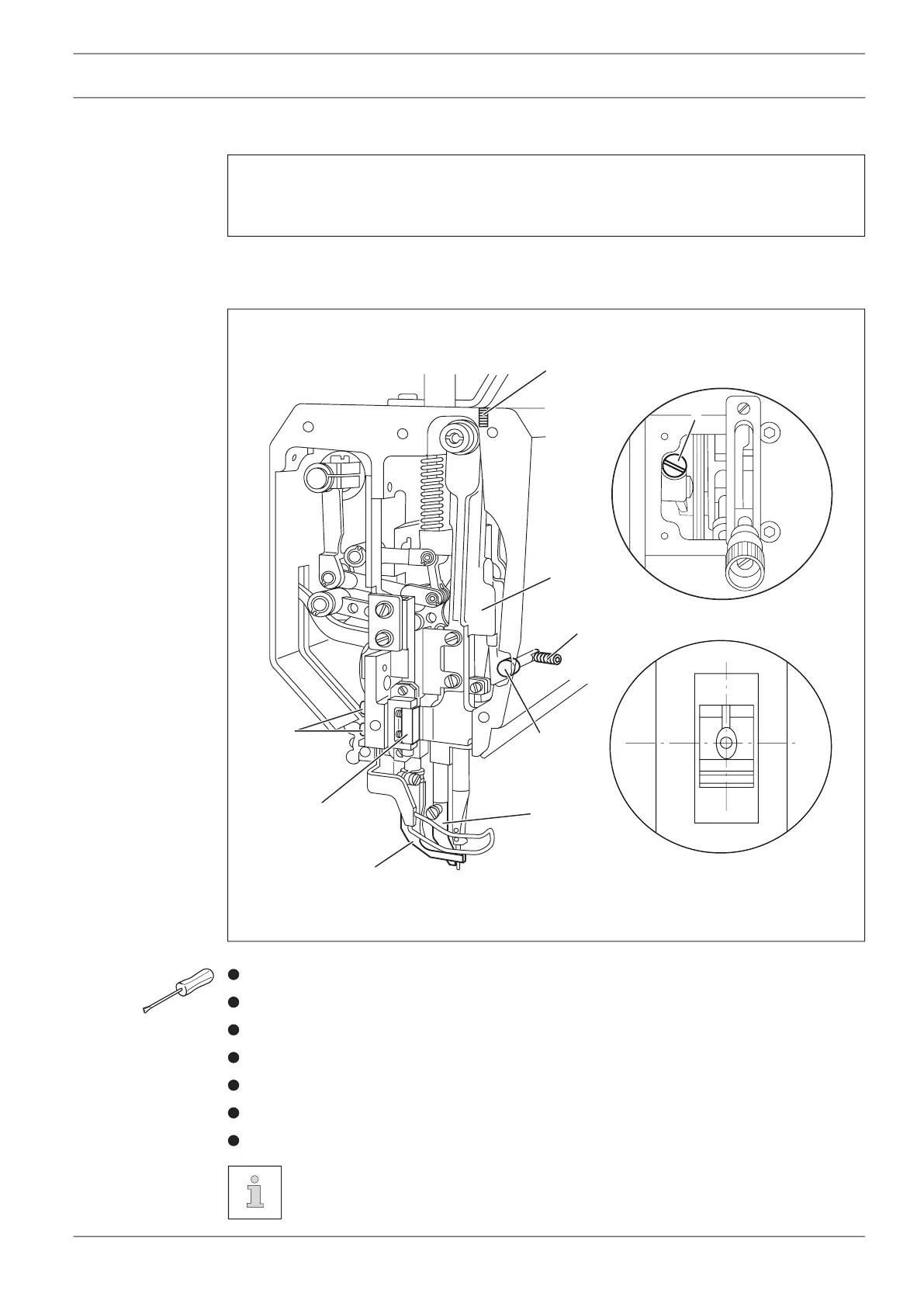

Fig. 13 - 05
2
3
1
9
5
6
7
4
8
