.05.09 Top-feed stroke
Requirement
At the largest top-feed stroke setting and stitch length "0", presser foot 1 and vibrating
presser foot 2 must lift 7.0 mm from the needle plate when the handwheel is turned.
Set the largest top-feed stroke and the stitch length at "0".
Bring presser foot 1 to rest on the needle plate.
Turn the handwheel in the direction of rotation until vibrating presser foot 2 has reached
its highest point.
Turn crank 3 (screws 4) in accordance with the requirement..

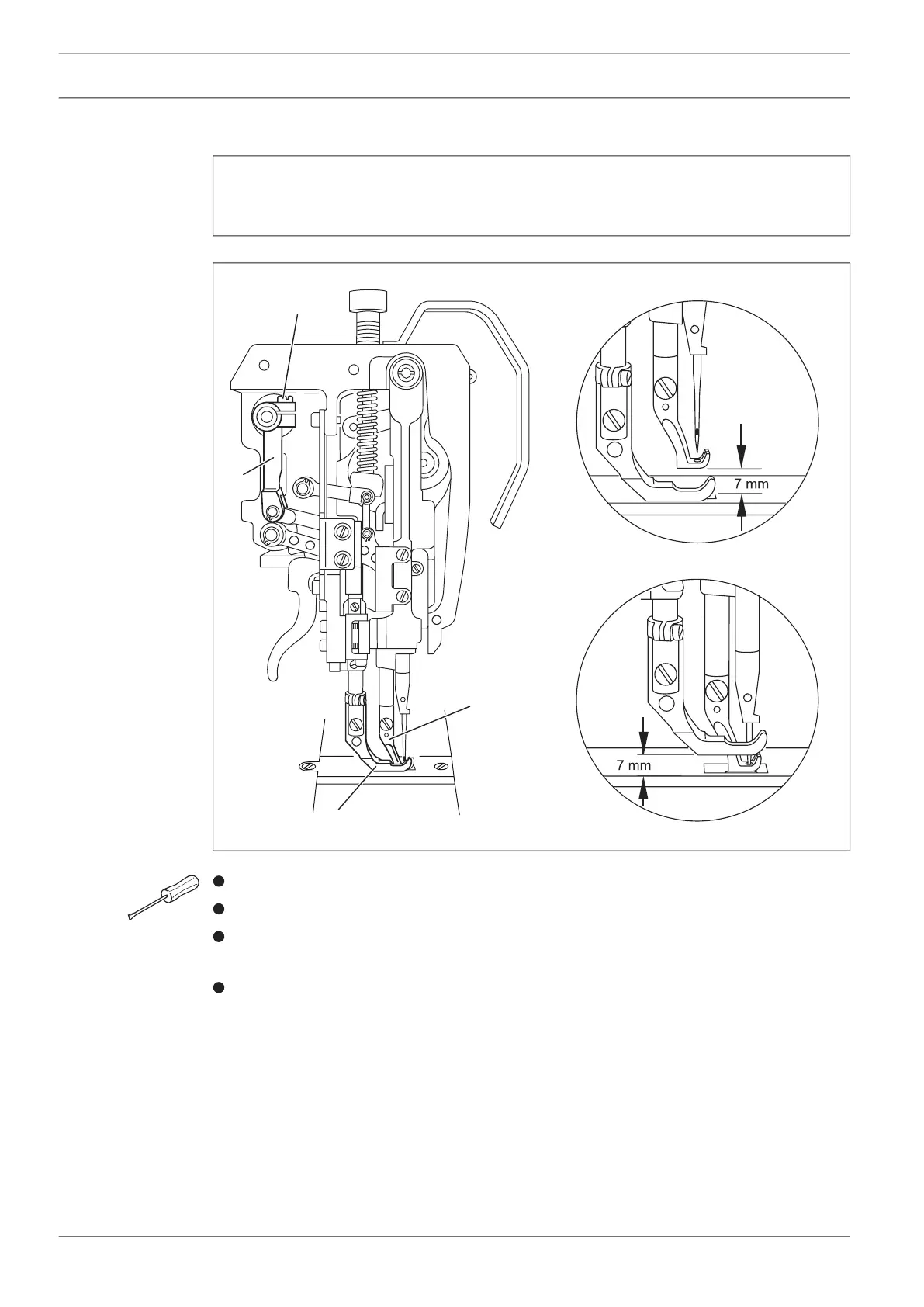

Fig. 13 - 9
1
2
3
4
