Adjustment
48
13
.05.15 Bobbin winder
Requirement
With the bobbin winder switched on, the bobbin winder spindle must engage reliably.
With the bobbin winder switched off, friction wheel 5 must not touch drive wheel 1.
The bobbin winder must switch off automatically when the thread level is approxima-
tely 1 mm from the edge of the bobbin.
1.
2.
3.
Move drive wheel 1 (screws 2) in accordance with requirement 1 und 2.
Move stop latch 3 (screws 4) in accordance with requirement 3.

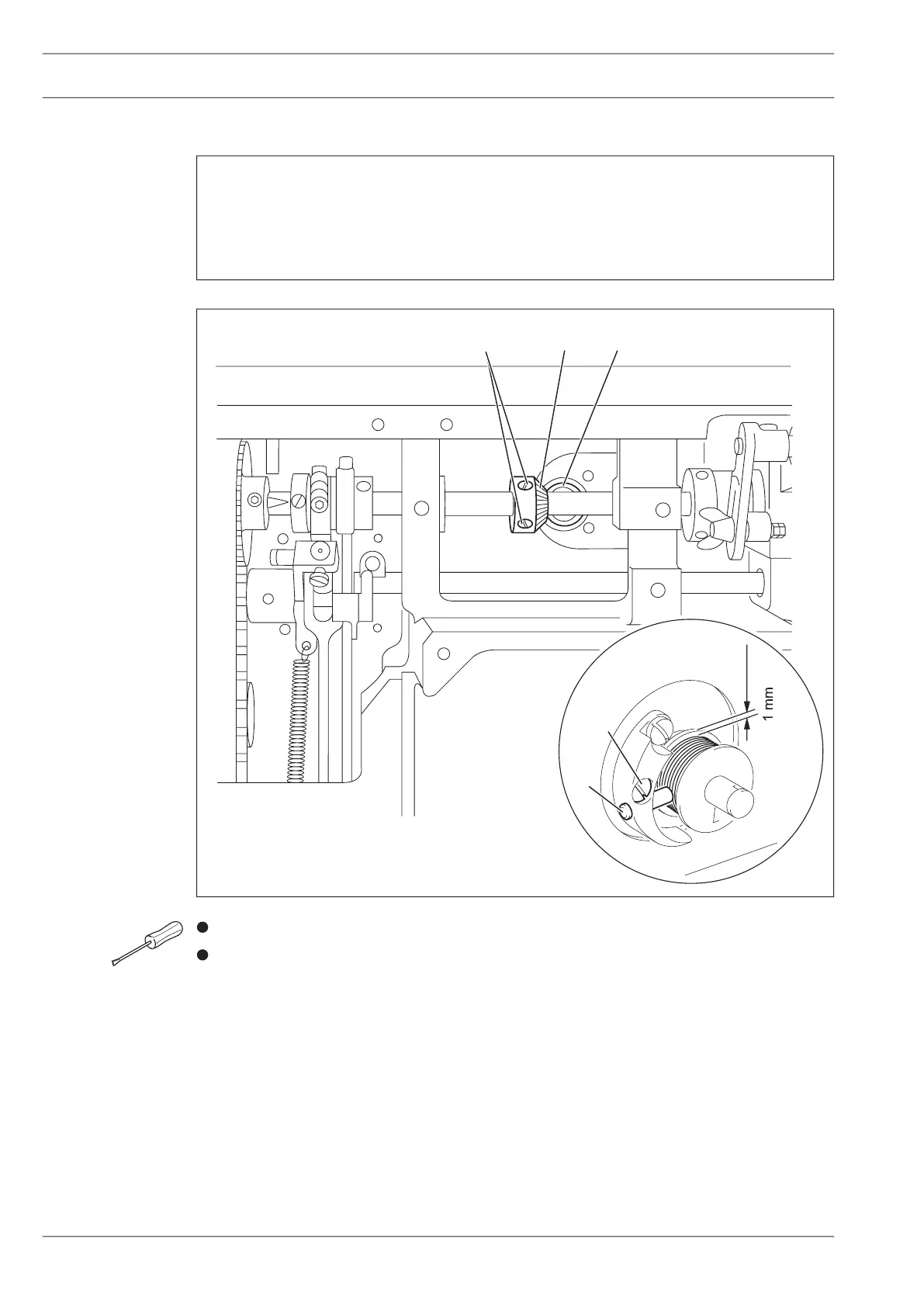

Fig. 13 - 15
2
5
1
3
4
