Adjustment
43
13
.05.10 Lifting motion of the top feed
Requirement
When presser foot 1 is resting on the needle plate, the vibrating presser foot 4 and the
point of the needle must both reach the needle plate at the same time when the top feed
stroke is set at maximum.
Allow presser foot 1 to rest on the needle plate.
Loosen screws 2 until feed lifting eccentric 3
Turn feed lifting eccentric 3 in accordance with the requirement.
Tighten screws 2.
Carry out a check in accordance with the requirement.

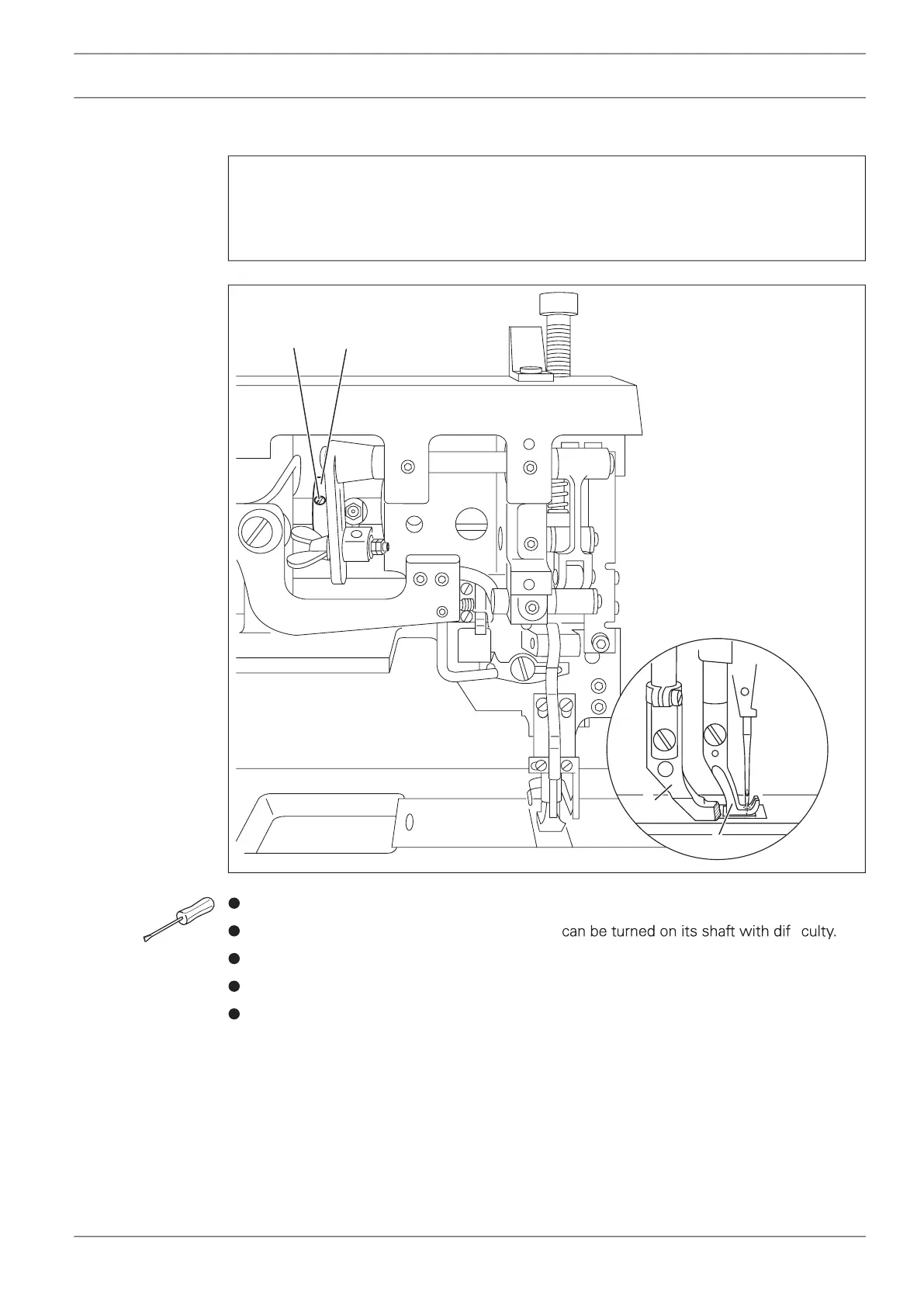

Fig. 13 - 10
2 3
1
4
