Textron Cessna 172R - Page 199

CESSNA
MODEL
172R
SECTION
6
WEIGHT
&
BALANCE
/
EQUIPMENT
LIST
LOADING
ARRANGEMENTS
*
Pilot
or
passenger
center
of
gravity
on
adjustable
seats
positioned
for
average
occupant.
Numbers
in
parentheses
indicate
forward
and
aft
limits
of
occupant
center
of
gravity
range.
Arm
measured
to
the
center
of
the
areas
shown.
NOTES:
1.
The
usable
fuel C.G.
arm
for
integral
tanks
is
located
at
station
48.0.
2.
The
rear
cabin wall
(approximate
station
108)
or
aft
baggage
wall
(approximate
station
142)
can
be
used
as
convenient
interior
reference
points
for
determining
the location
of
baggage
area
fuselage
stations.
STATION
(C.G. ARM)
(34
to
46)
0585X1016

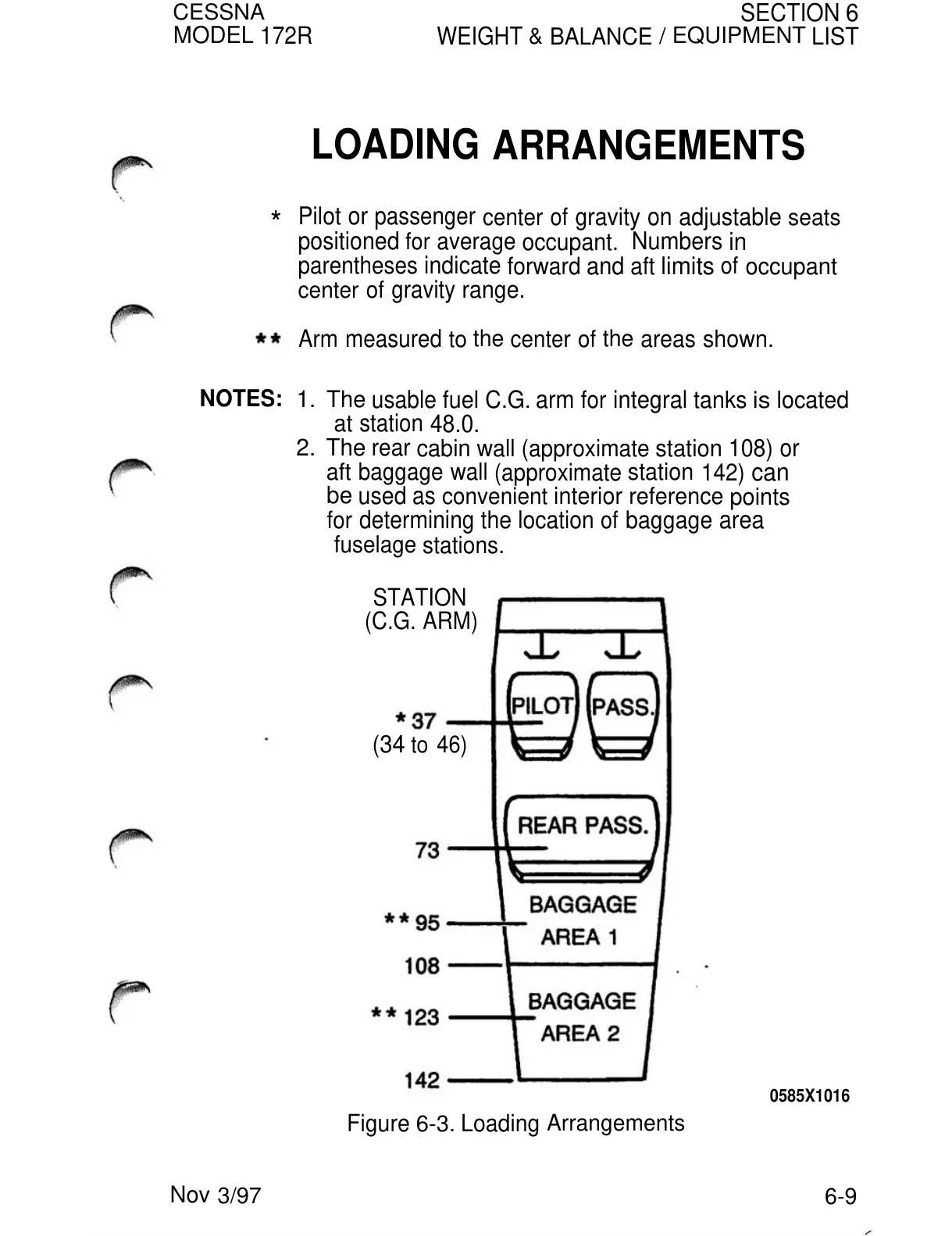

Figure
6-3.
Loading
Arrangements
Nov
3/97
6-9
