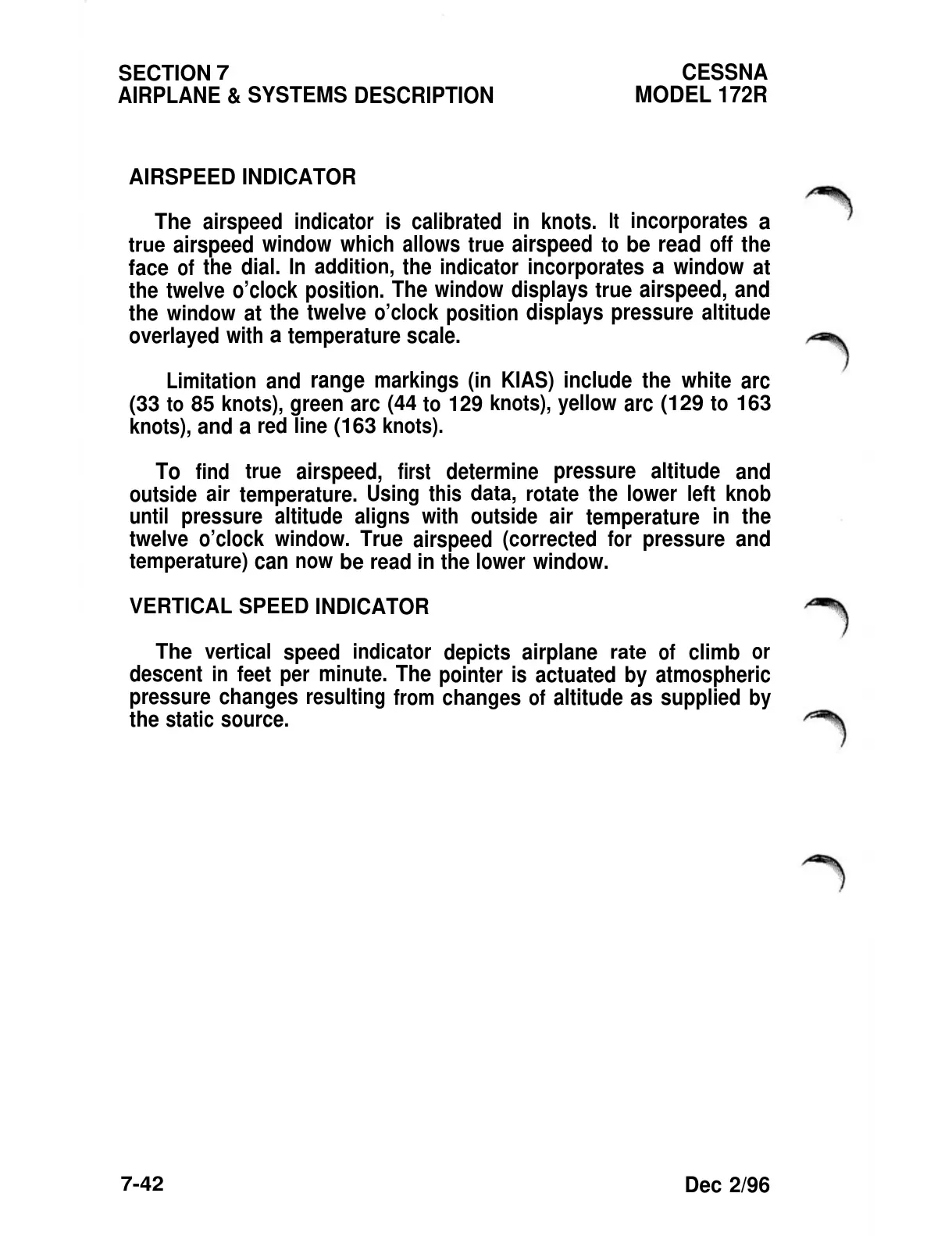

SECTION
7
AIRPLANE
&
SYSTEMS
DESCRIPTION
CESSNA
MODEL
172R
AIRSPEED
INDICATOR
The
airspeed
indicator
is
calibrated
in
knots.
It
incorporates
a
true
airspeed
window
which
allows
true
airspeed
to
be
read
off
the
face
of
the
dial.
In
addition,
the
indicator
incorporates
a
window
at
the
twelve
o’clock
position.
The
window
displays
true
airspeed,
and
the
window
at
the
twelve
o’clock
position
displays
pressure
altitude
overlayed
with
a
temperature
scale.
Limitation
and
range
markings
(in
KIAS)
include
the
white
arc
(33
to
85
knots),
green
arc
(44
to
129
knots),
yellow
arc
(129
to
163
knots),
and
a
red
line
(163
knots).
To
find
true
airspeed,
first
determine
pressure
altitude
and
outside
air
temperature.
Using
this
data,
rotate
the
lower
left
knob
until
pressure
altitude
aligns
with
outside
air
temperature
in
the
twelve
o’clock
window.
True
airspeed
(corrected
for
pressure
and
temperature)
can
now
be
read
in
the
lower
window.
VERTICAL
SPEED
INDICATOR
The
vertical
speed
indicator
depicts
airplane
rate
of
climb
or
descent
in
feet
per
minute.
The
pointer
is
actuated
by
atmospheric
pressure
changes
resulting
from
changes
of
altitude
as
supplied
by
the
static
source.
7-42
Dec
2/96
