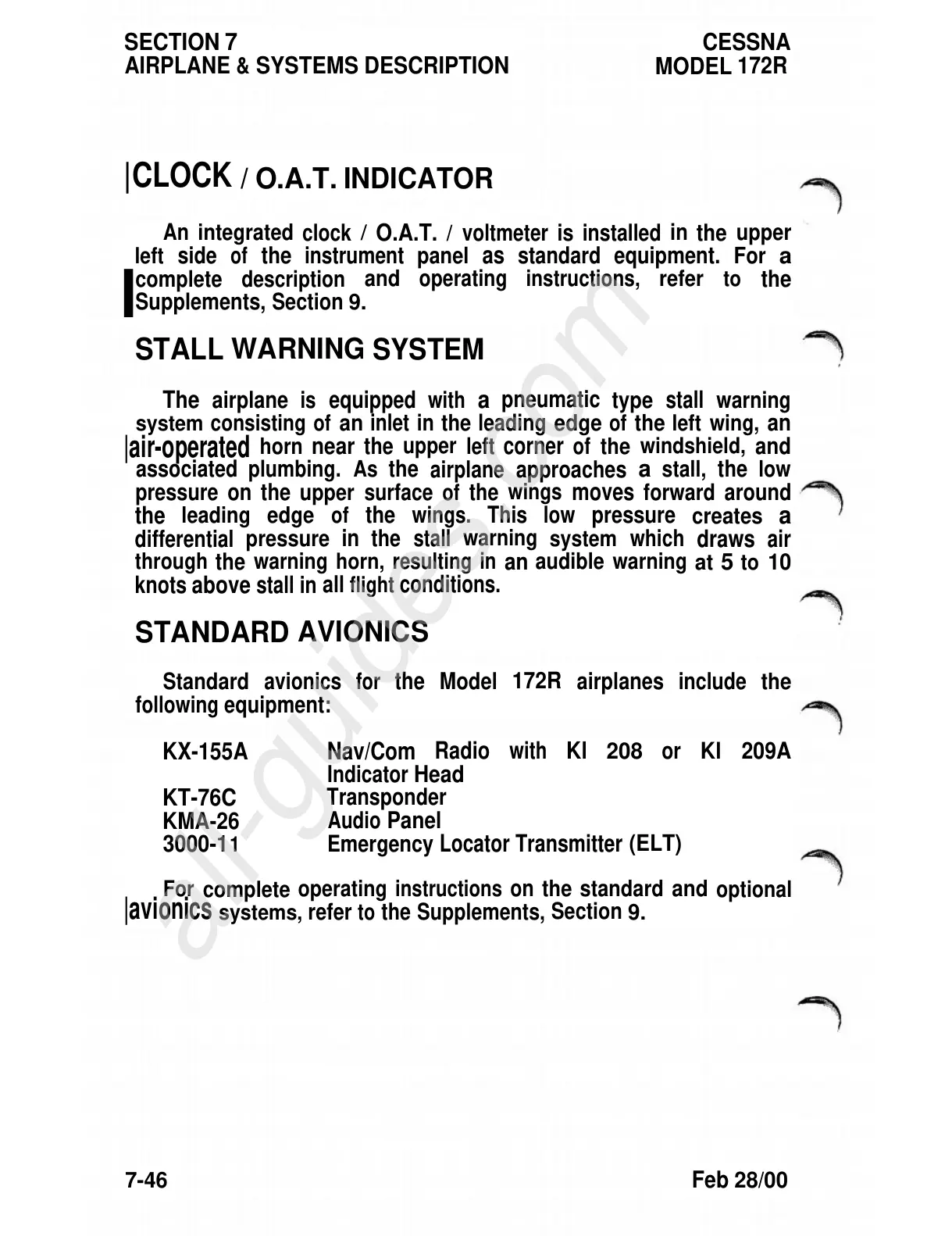

SECTION
7
AIRPLANE
&
SYSTEMS
DESCRIPTION
CESSNA
MODEL
172R
|CLOCK
/
O.A.T.
INDICATOR
An
integrated
clock
/
O.A.T.
/
voltmeter
is
installed
in
the
upper
left
side
of
the
instrument
panel
as
standard
equipment.
For
a
I
complete
description
and
operating
instructions,
refer
to
the
Supplements,
Section
9.
STALL
WARNING
SYSTEM
The
airplane
is
equipped
with
a
pneumatic
type
stall
warning
system
consisting
of
an
inlet
in
the
leading
edge
of
the
left
wing,
an
|air-operated
horn
near
the
upper
left
corner
of
the
windshield,
and
associated
plumbing.
As
the
airplane
approaches
a
stall,
the
low
pressure
on
the
upper
surface
of
the
wings
moves
forward
around
the
leading
edge
of
the
wings.
This
low
pressure
creates
a
differential
pressure
in
the
stall
warning
system
which
draws
air
through
the
warning
horn,
resulting
in
an
audible
warning
at
5
to
10
knots
above
stall
in
all
flight
conditions.
STANDARD
AVIONICS
Standard
avionics
for
the
Model
172R
airplanes
include
the
following
equipment:
KX-155A
Nav/Com
Radio
with
Kl
208
or
Kl
209A
Indicator
Head
KT-76C
Transponder
KMA-26
Audio
Panel
3000-1
1
Emergency
Locator
Transmitter
(ELT)
For
complete
operating
instructions
on
the
standard
and
optional
|avionics
systems,
refer
to
the
Supplements,
Section
9.
7-46
Feb
28/00
