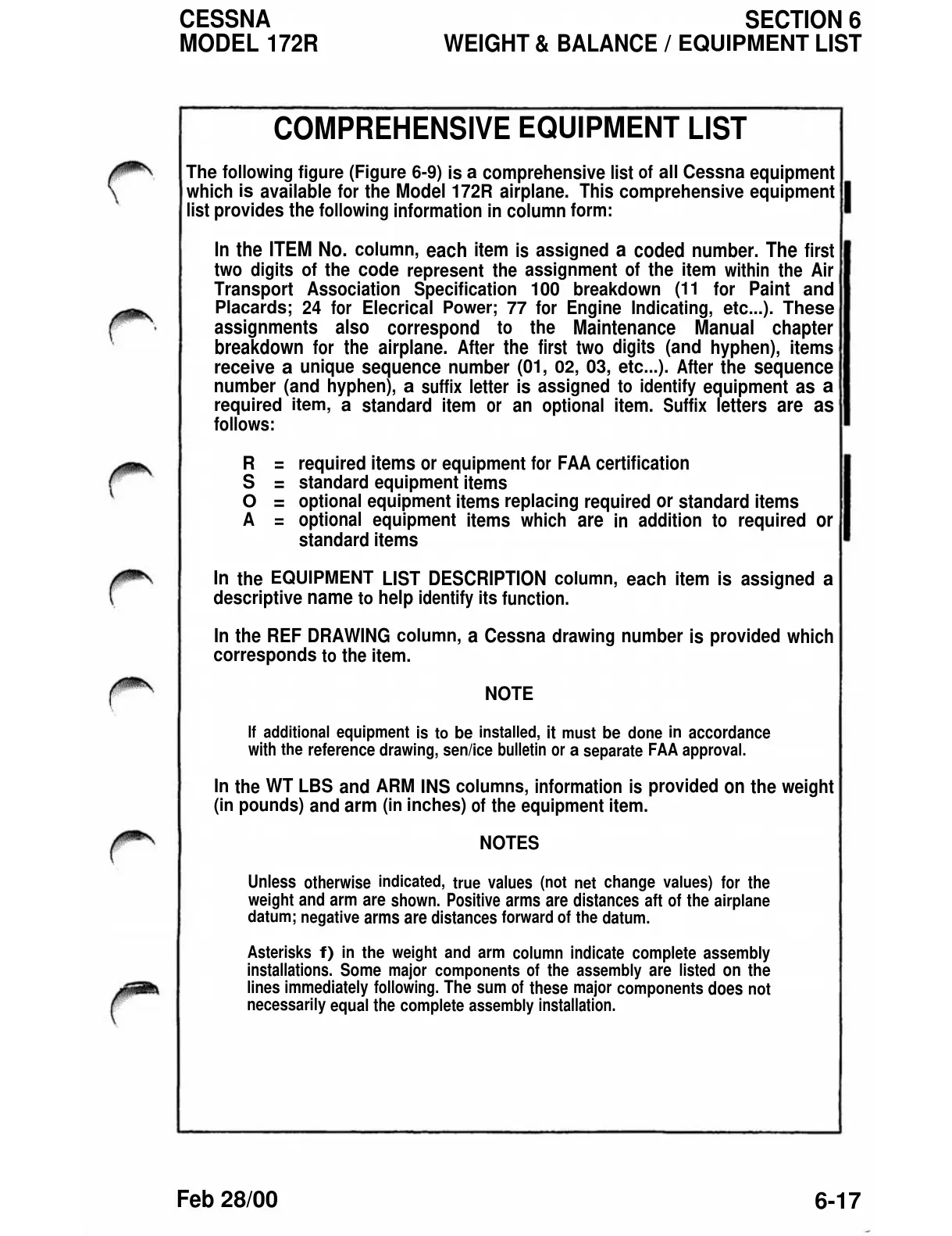

Textron Cessna 172R User Manual

CESSNA
MODEL
172R
SECTION
6
WEIGHT
&
BALANCE
/
EQUIPMENT
LIST
COMPREHENSIVE
EQUIPMENT
LIST
The
following
figure
(Figure
6-9)
is
a
comprehensive
list
of
all
Cessna
equipment
which
is
available
for
the
Model
172R
airplane.
This
comprehensive
equipment
list
provides
the
following
information
in
column
form:
In
the
ITEM
No.
column,
each
item
is
assigned
a
coded
number.
The
first
two
digits
of
the
code
represent
the
assignment
of
the
item
within the
Air
Transport
Association
Specification
100
breakdown
(11
for
Paint
and
Placards;
24
for
Elecrical
Power;
77
for
Engine
Indicating,
etc...).
These
assignments
also
correspond
to
the
Maintenance Manual
chapter
breakdown
for
the
airplane.
After
the
first
two
digits
(and
hyphen),
items
receive
a
unique
sequence
number
(01,
02,
03,
etc...).
After
the
sequence
number
(and
hyphen),
a
suffix
letter is
assigned
to
identify
equipment
as
a
required
item,
a
standard item
or an
optional
item.
Suffix
letters
are as
follows:
R
=
required
items
or
equipment
for
FAA
certification
S
=
standard
equipment
items
O
=
optional equipment
items
replacing
required
or
standard items
A
=
optional
equipment
items which
are
in
addition
to
required
or
standard items
In
the
EQUIPMENT
LIST
DESCRIPTION
column,
each
item is
assigned
a
descriptive
name
to
help
identify
its
function.
In
the
REF
DRAWING
column,
a
Cessna
drawing
number
is
provided
which
corresponds
to
the
item.
NOTE
If
additional
equipment
is
to
be
installed,
it
must
be
done
in
accordance
with
the
reference
drawing,
sen/ice
bulletin
or
a
separate
FAA
approval.
In
the
WT
LBS
and
ARM
INS
columns,
information
is
provided
on
the
weight
(in
pounds)
and
arm
(in
inches)
of
the
equipment
item.
NOTES
Unless
otherwise
indicated,
true
values
(not
net
change
values)
for
the
weight
and
arm are
shown.
Positive
arms are
distances
aft of
the
airplane
datum;
negative
arms are
distances
forward of
the
datum.
Asterisks
f)
in
the
weight
and
arm
column
indicate
complete
assembly
installations.
Some
major
components
of
the
assembly
are
listed
on
the
lines
immediately
following.
The
sum
of
these
major
components
does
not
necessarily
equal
the
complete
assembly
installation.
Feb
28/00
6-17
