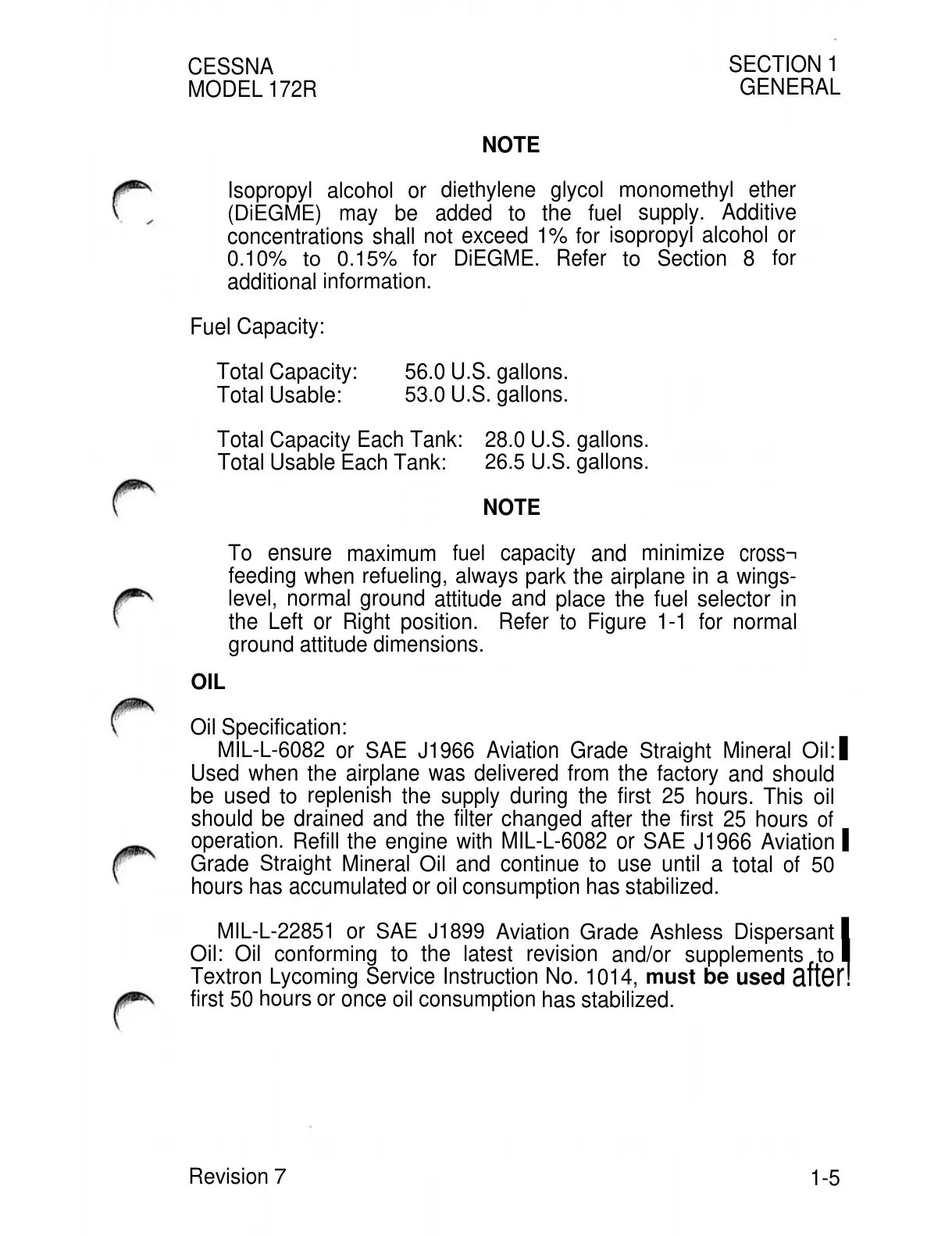

CESSNA
MODEL
172R
SECTION
1
GENERAL
NOTE
Isopropyl
alcohol
or
diethylene glycol
monomethyl
ether
(DiEGME)
may
be
added
to
the
fuel
supply.
Additive
concentrations shall
not
exceed
1%
for
isopropyl
alcohol
or
0.10%
to
0.15%
for DiEGME.
Refer
to
Section
8
for
additional
information.
Fuel
Capacity:
Total
Capacity:
56.0
U.S.
gallons.
Total Usable:
53.0
U.S.
gallons.
Total
Capacity
Each Tank:
28.0
U.S.
gallons.
Total Usable
Each Tank:
26.5
U.S.
gallons.
NOTE
To
ensure
maximum
fuel
capacity
and
minimize
cross¬
feeding
when
refueling,
always
park
the
airplane
in
a
wings-
level,
normal
ground
attitude
and
place
the
fuel
selector
in
the
Left
or
Right
position.
Refer
to
Figure
1-1
for
normal
ground
attitude
dimensions.
OIL
Oil
Specification:
MIL-L-6082
or
SAE
J1966
Aviation
Grade
Straight
Mineral
Oil:
I
Used when
the
airplane
was
delivered
from
the
factory
and should
be used
to
replenish
the
supply
during
the
first
25
hours.
This
oil
should be drained and
the
filter
changed
after
the
first
25
hours
of
operation.
Refill
the
engine
with
MIL-L-6082
or
SAE
J1966
Aviation
|
Grade
Straight
Mineral
Oil
and
continue
to
use
until
a
total
of
50
hours
has
accumulated
or
oil
consumption
has stabilized.
MIL-L-22851
or
SAE
J1899
Aviation
Grade
Ashless
Dispersant
I
Oil: Oil
conforming
to
the
latest
revision
and/or
supplements
to
I
Textron
Lycoming
Service
Instruction No.
1014,
must
be
used
after!
first
50
hours
or
once
oil
consumption
has stabilized.
Revision
7
1-5
