CESSNA
MODEL
172R
SECTION
7
AIRPLANE
&
SYSTEMS DESCRIPTION
WING
FLAP
SYSTEM
The
single-slot
type
wing
flaps
(Refer
to
Figure
7-3),
are
extended
or
retracted
by
positioning
the
wing
flap
switch lever
on
the instrument
panel
to
the desired
flap
deflection
position.
The
switch
lever
is
moved
up
or
down
in
a
slotted
panel
that
provides
mechanical
stops
at
the
10°,
20°
and
30°
positions.
To
change
flap
setting,
the
flap
lever is moved
to
the
right
to
clear
mechanical
stops
at
the
10°
and
20°
positions.
A
scale and
pointer
to
the
left
of
the
flap
switch indicates
flap
travel
in
degrees.
The
wing
flap
system
circuit is
protected
by
a
10-
ampere
circuit
breaker,
labeled
FLAP,
on
the
left
side
of
the
control
panel.

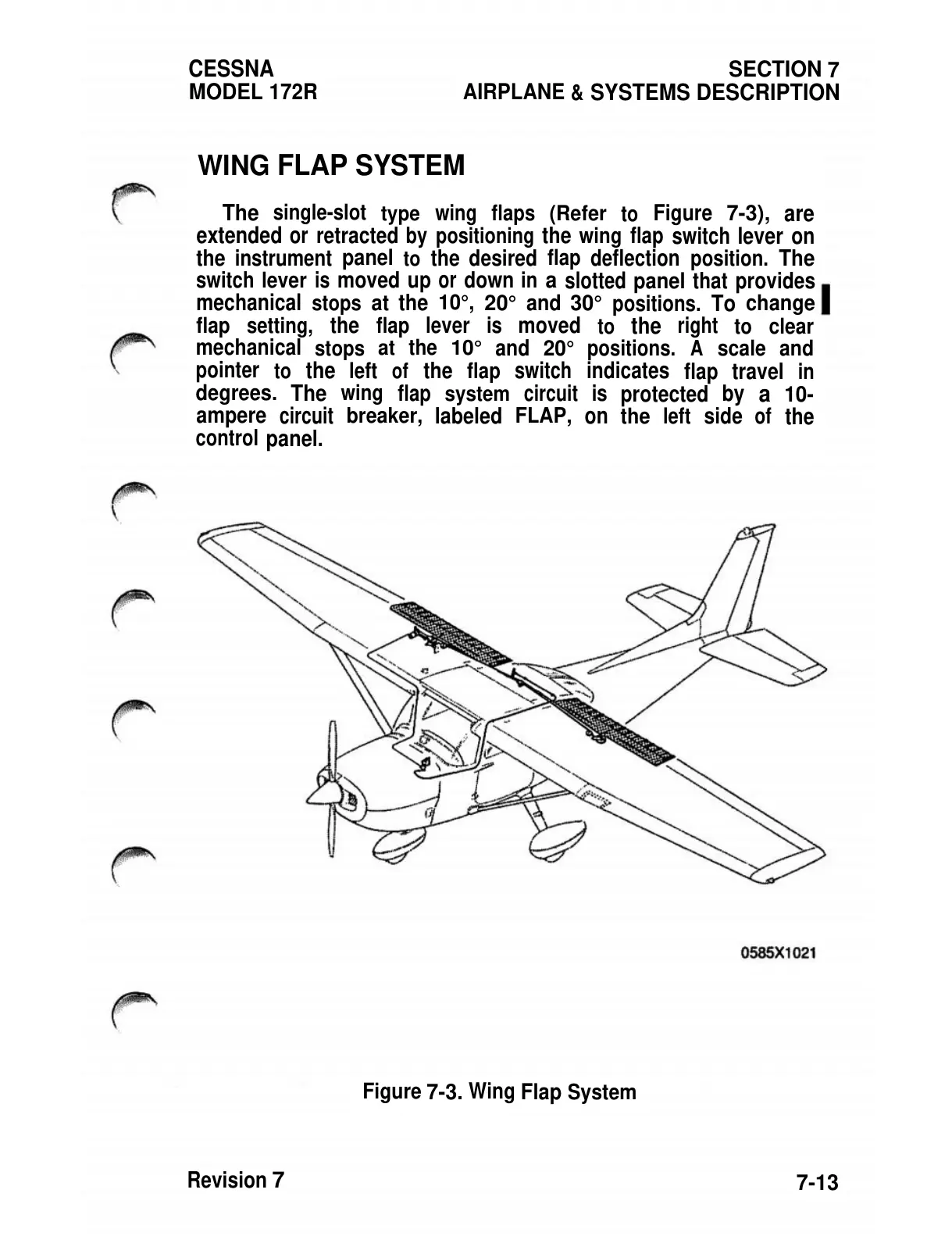

Figure
7-3.
Wing
Flap
System
Revision
7
7-13
