CESSNA
MODEL
172R
SECTION
1
GENERAL
NOTE
1
:
WING
SPAN
SHOWN
WITH
STROBE
LIGHTS
INSTALLED.
NOTE
2:
WHEEL
BASE
LENGTH
IS
65”.
NOTE
3:
PROPELLER
GROUND
CLEARANCE
IS
1
1
1/4”.
NOTE
4:
WING
AREA
IS
1
74
SQUARE
FEET.
NOTE
5:
MINIMUM
TURNING
RADIUS
f
PIVOT
POINT
TO
OUTBOARD
WING
TIP)
IS
27-5
1/2”.
NOTE
6:
NORMAL
GROUND
ATTITUDE
IS
SHOWN
WITH
NOSE
STRUT
SHOWING
APPROXIMATELY
2”
OF
STRUT,
AND
WINGS
LEVEL.

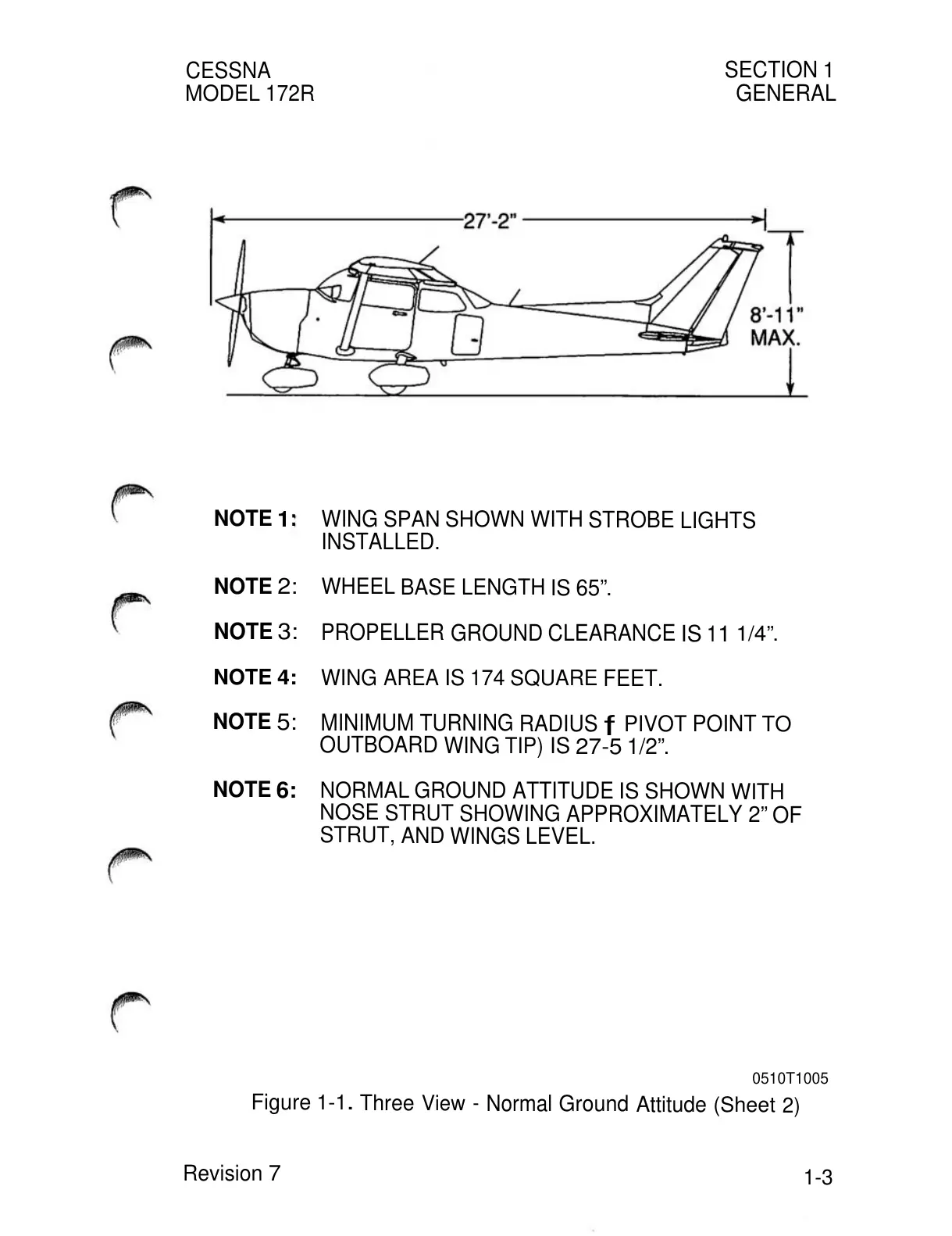

0510T1005
Figure
1-1
.
Three
View
-
Normal
Ground
Attitude
(Sheet
2)
Revision
7
1-3
