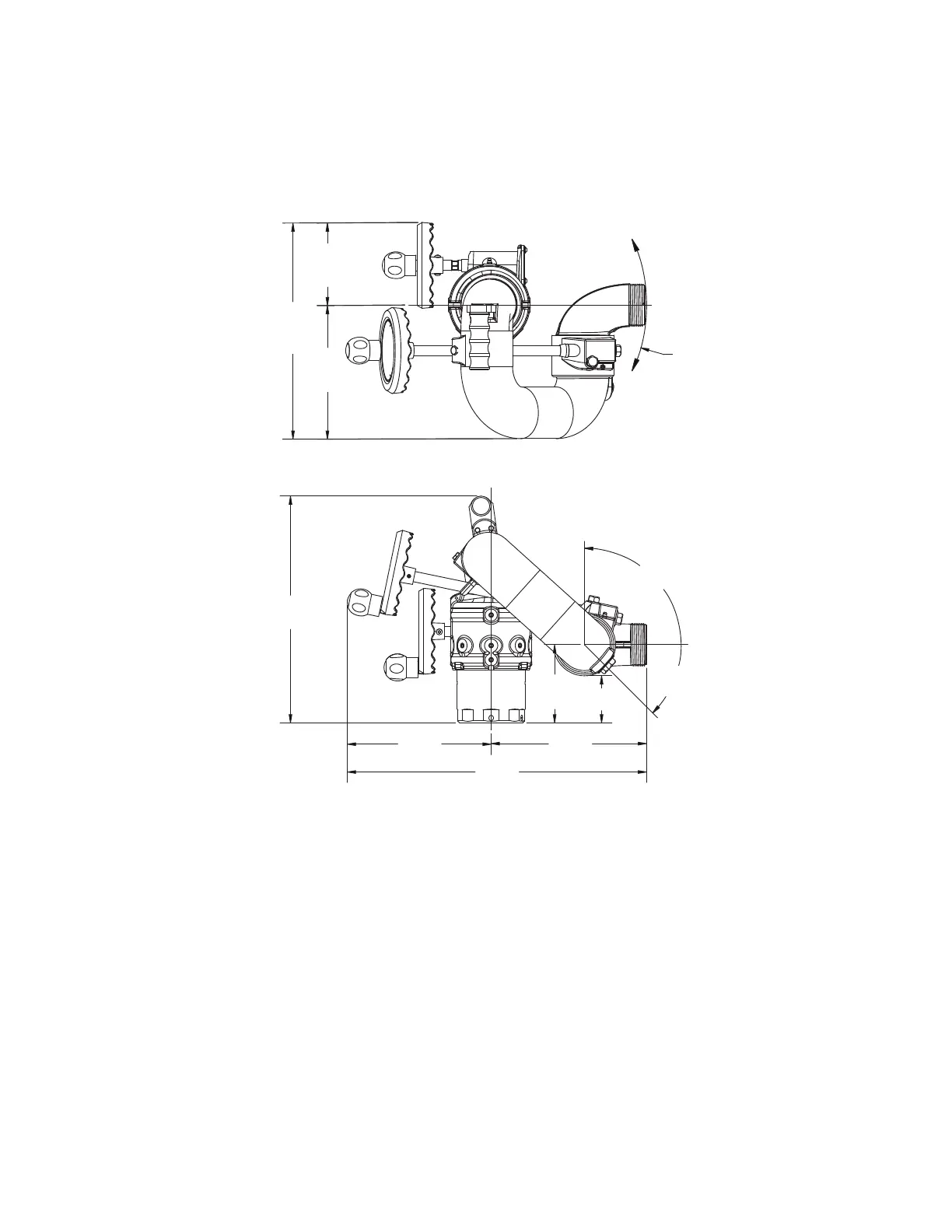

3.7 OVERALL DIMENSIONS (CONTINUED)
Figure 3.7F
HURRICANE MONITOR
DUAL HANDWHEEL
Shown without Inlet Fitting
(see table 3.7.1 for additional height per fitting)
TOP VIEW
360° Continuous
Range of Motion
11.3”
(287)
Swing Radius
6.0”
(152)
9.7”
(246)
15.7”
(398)
16.5”
(418)
21.7”
(551)
10.4”
(265)
11.3”
(286)
5.7”
(144)
3.4”
(87)
45°
BELOW
90°
ABOVE
SIDE VIEW
