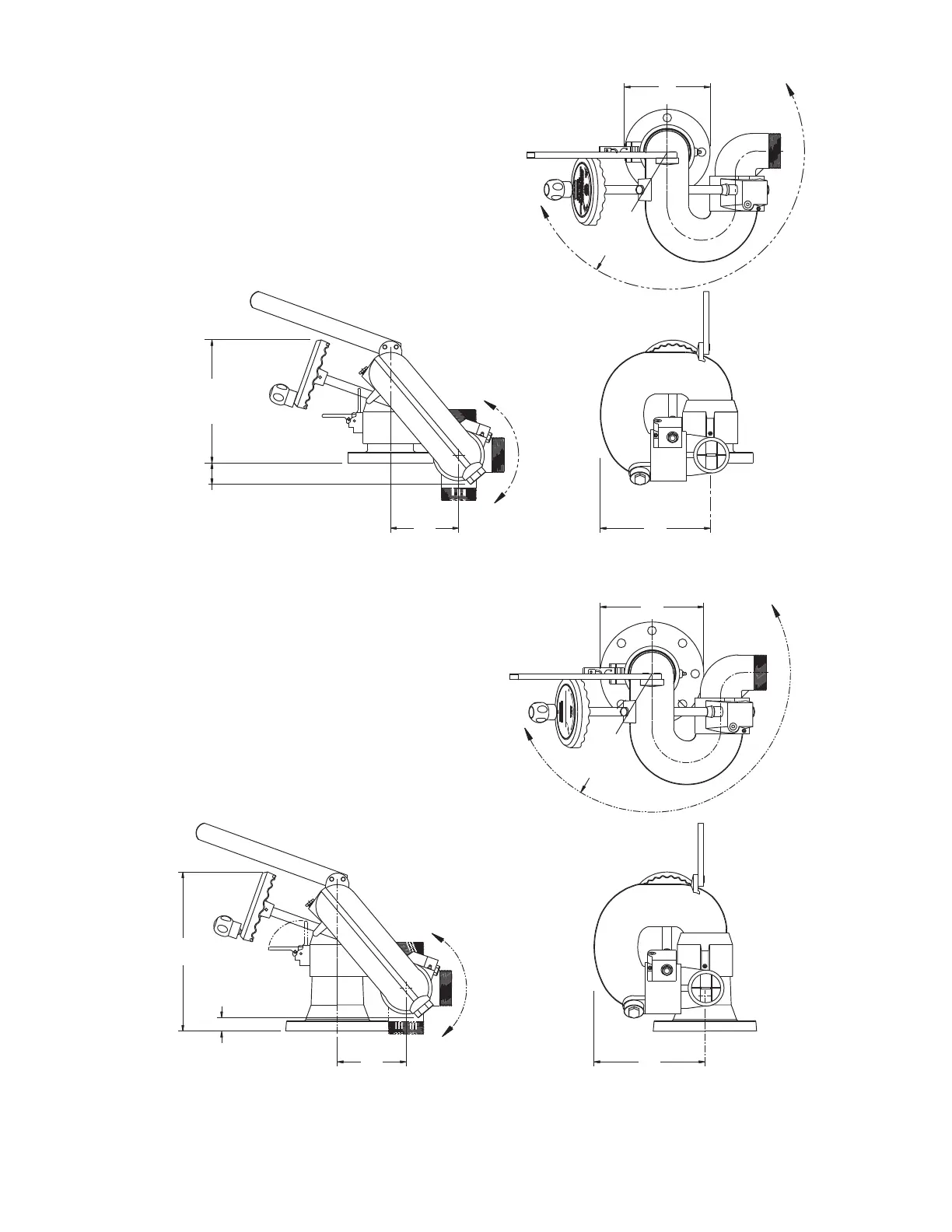

3.7 OVERALL DIMENSIONS
Figure 3.7A
Figure 3.7B
HURRICANE MONITOR
with Tiller and 3” ANSI Flange
(metric DN80 PN20)
MAXIMUM OPERATING PRESSURE
250 PSI - 17 BAR
+1.219.462.6161
800.348.2686
www.tft.com
XL105
SERIAL# TFT-X123456

Read manual before use.
WARNING
Æ
DOWN UP
7.5”
(190.5)
12” (304.8)
Swing
Full 360°
Range of Motion
Full 180°
Range of Motion
10.8”
(174.8)
1.9”
(48.3)
5.9”
(149.8)
SIDE VIEW
9.7”
(246.4)
FRONT VIEW
TOP VIEW
HURRICANE MONITOR
with Tiller and 4” ANSI Flange
(metric DN100 PN20)
MAXIMUM OPERATING PRESSURE
250 PSI - 17 BAR
+1.219.462.6161
800.348
.2686
www.tft.com
XL105
SERIAL# TFT-X123456

Read manual before use.
WARNING
Æ
DOWN UP
5.9”
(149.8)
Full 180°
Range of Motion
1.175”
(29.8)
13.8”
(350.2)
Full 360°
Range of Motion
12” (304.8)
Swing
TOP VIEW
9.0”
(228.6)
SIDE VIEW
9.7”
(246.4)
FRONT VIEW
