6.3 FRICTION LOSS

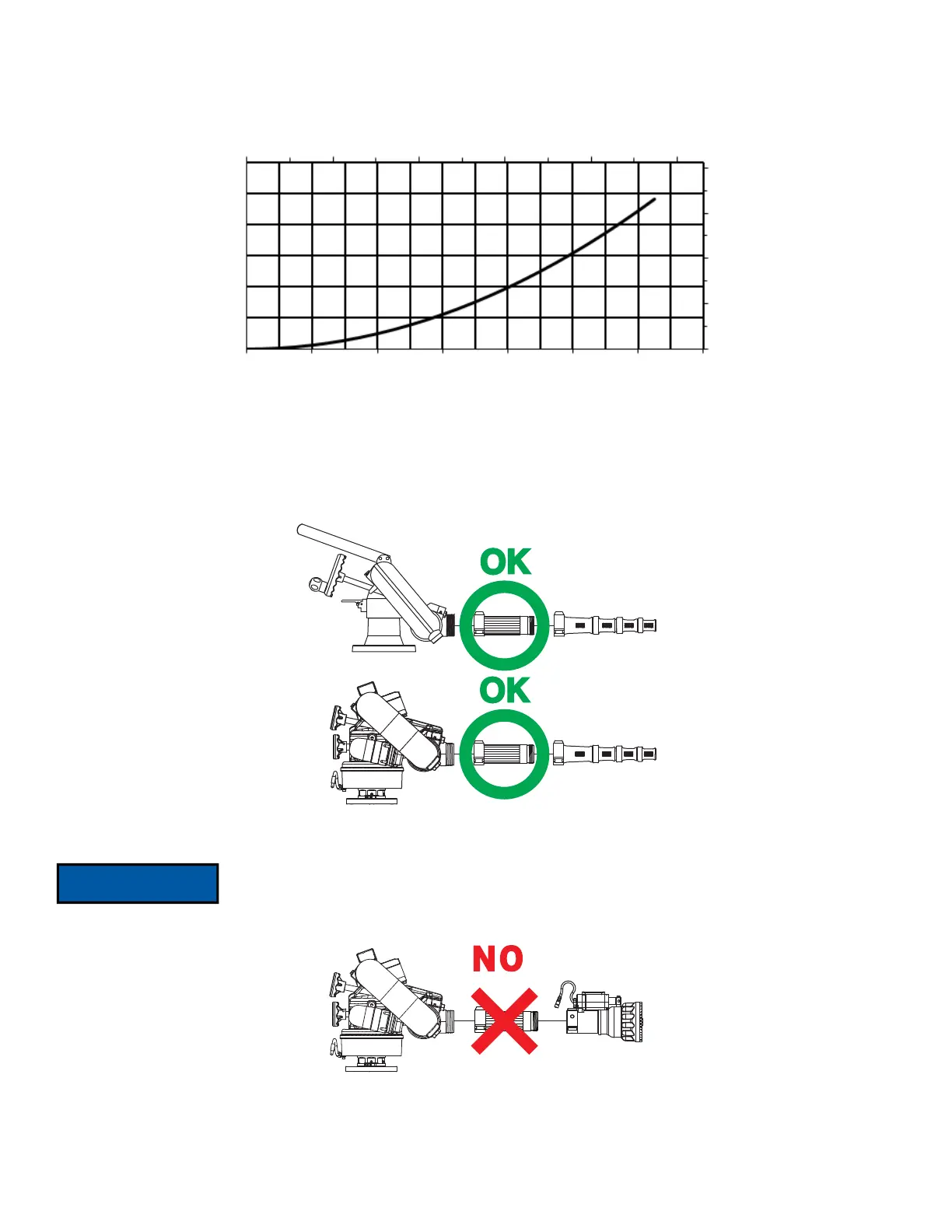

Figure 6.3
6.4 STREAM STRAIGHTENERS
6.4.1 STREAM STRAIGHTENERS WITH STACKED TIPS
Turbulence though the Hurricane Monitor is very low, but stream quality and reach can be improved with the use of the integral stream
straightener on the TFT stacked tip nozzle.
Figure 6.4.1
6.4.2 STREAM STRAIGHTENERS WITH FOG NOZZLES
Figure 6.4.2
NOTICE
The flow path of a fog nozzle serves as a stream straightener. Use of a stream straightener with a
fog nozzle will increase the stresses on the monitor’s gear train and may lead to premature wear.
Use of a stream straightener with a fog nozzle is not recommended.
0 1000 2000
3000
4000
5000
200
400
600
800
1000
1200
1400
0
0
5
10
15
20
25
30
0.0
0.5
1.0
1.5
2.0
HURRICANE FIXED MONITOR FRICTION LOSS
FLOW (L/min)
FLOW (GPM)
PRESSURE LOSS (PSI)
PRESSURE LOSS (BAR)
