TFT HURRICANE Series User Manual

©Copyright Task Force Tips LLC 2004-2020 19 LIX-300 October 23, 2020 Rev22
4.6 ELEVATION TRAVEL STOPS
The range of elevation travel for the Hurricane Monitor is 45 degrees past vertical to 45 degrees below horizontal. The elevation range
may be limited by installing the supplied stop bolts and adjustment disks at the locations as shown. Consult factory for other ranges. The
figures include installation notes.

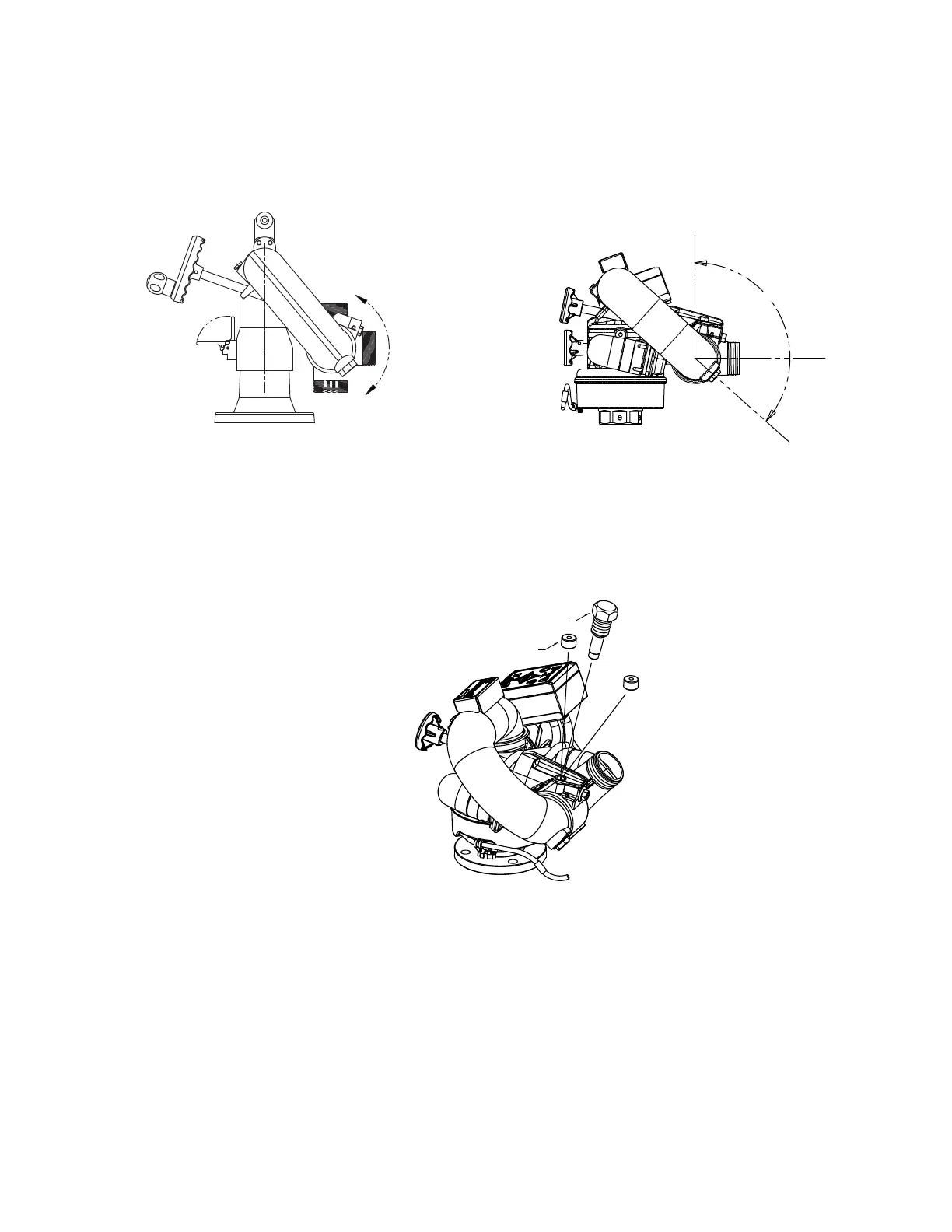

Figure 4.6A
Figure 4.6B
V
E
R
T
I
C
A
L
R
A
N
G
E
O
F
M
O
T
I
O
N
A
B
O
V
E
4
5
D
E
G
.
B
E
L
O
W
9
0
D
E
G
.
Hurricane RC
Elevation Travel
Hurricane
Elevation Travel
Full 180°
Range of Travel
STOP BOLT
ADJUSTMENT DISK
(install on this side of the
Stop Bolt to reduce DOWNWARD
travel)
ADJUSTMENT DISK
(install on this side of the
Stop Bolt to reduce UPWARD
travel)
To change the Elevation Travel Limits:
1. Remove the Set Screw
2. Insert 1 Adjustment Disc in the bolt hole for every 10° of travel limitation
3. Replace the Set Screw with the Stop Bolt
