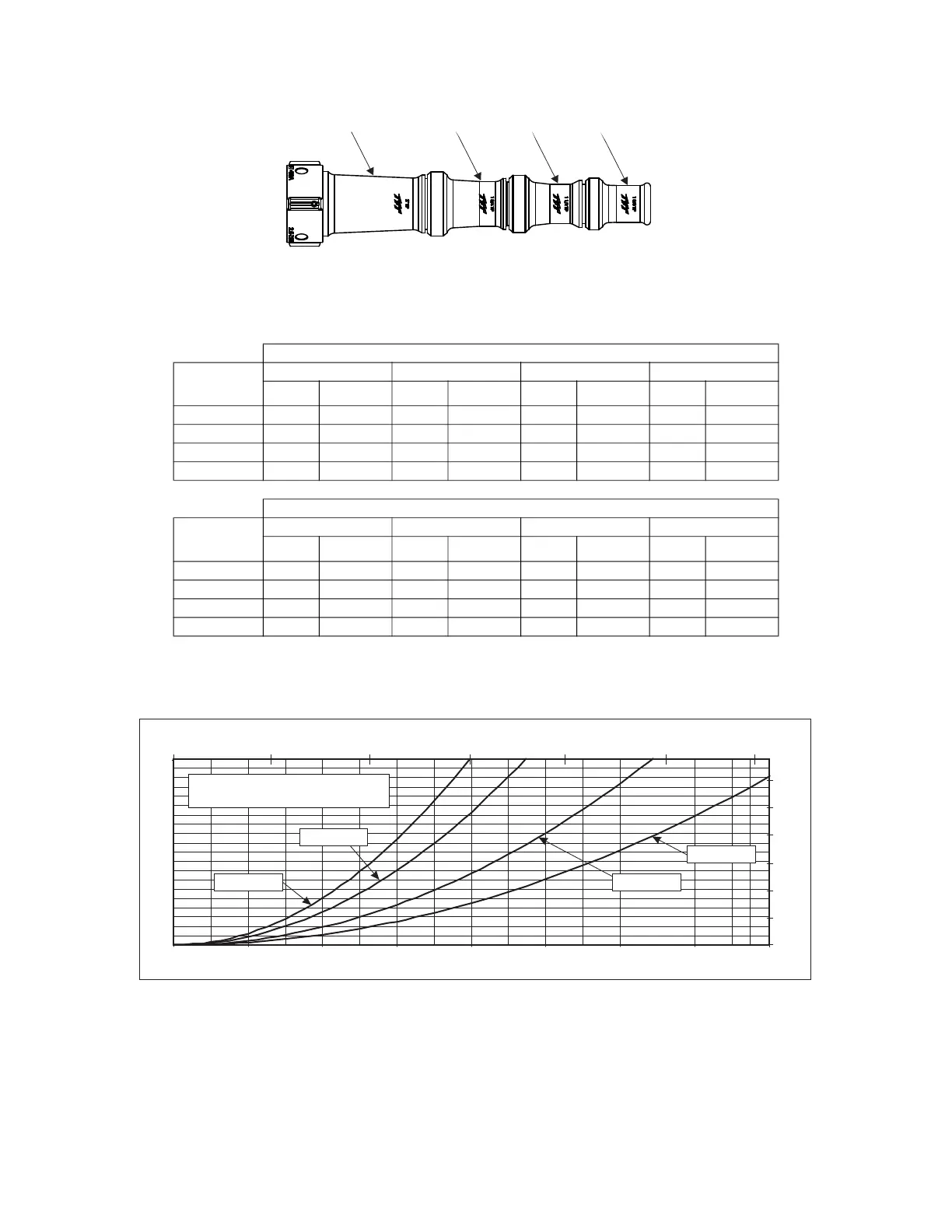

6.0 FLOW CHARACTERISTICS
6.1 MST-4NJ STACKED TIPS FLOW AND REACH
Figure 6.1A
MST-4NJ FLOW/REACTION TABLE
Table 6.1
MST-4NJ FLOW GRAPH
NOZZLE INLET PRESSURE
NOZZLE
DIAMETER
40 PSI 60 PSI 80 PSI 100 PSI
FLOW
(GPM)
REACTION
(LBS)
FLOW
(GPM)
REACTION
(LBS)
FLOW
(GPM)
REACTION
(LBS)
FLOW
(GPM)
REACTION
(LBS)
1.375” 360 120 440 180 500 240 560 300
1.5” 420 140 520 210 500 280 670 350
1.75” 580 190 700 290 810 380 910 480
2.00” 750 250 920 380 1000 500 1190 630
NOZZLE INLET PRESSURE
NOZZLE
DIAMETER
2.8 BAR 4.1 BAR 5.5 BAR 7 BAR
FLOW
(L/min)
REACTION
(KG)
FLOW
(L/min)
REACTION
(KG)
FLOW
(L/min)
REACTION
(KG)
FLOW
(L/min)
REACTION
(KG)
35 mm 1360 50 1670 80 1890 110 2120 140
38 mm 1590 60 1970 100 2270 130 2540 160
45 mm 2200 90 2650 130 3070 170 3440 220
50 mm 2840 110 3480 170 4010 230 4500 290
2" 1-3/4" 1-1/2" 1-3/8"
2.5”
Coupling
Figure 6.2B
0.0
0.2
1.2
1.0
0.8
0.6
0.4
PRESSURE (BAR)
0
20
40
60
80
100
120
140
160
180
200
0 200 400 600 800 1000 1200 1400 1600
FLOW (GPM)
PRESSURE (PSI)
0 1000 2000 3000 4000 5000 6000
(LPM)
1 3/8" TIP
1 1/2" TIP
2" TIP
STACK TIP PERFORMANCE
(PRESSURE IS NOZZLE EXIT PITOT PRESSURE)
1 3/4" TIP
