TFT HURRICANE Series User Manual

©Copyright Task Force Tips LLC 2004-2020 13 LIX-300 October 23, 2020 Rev22

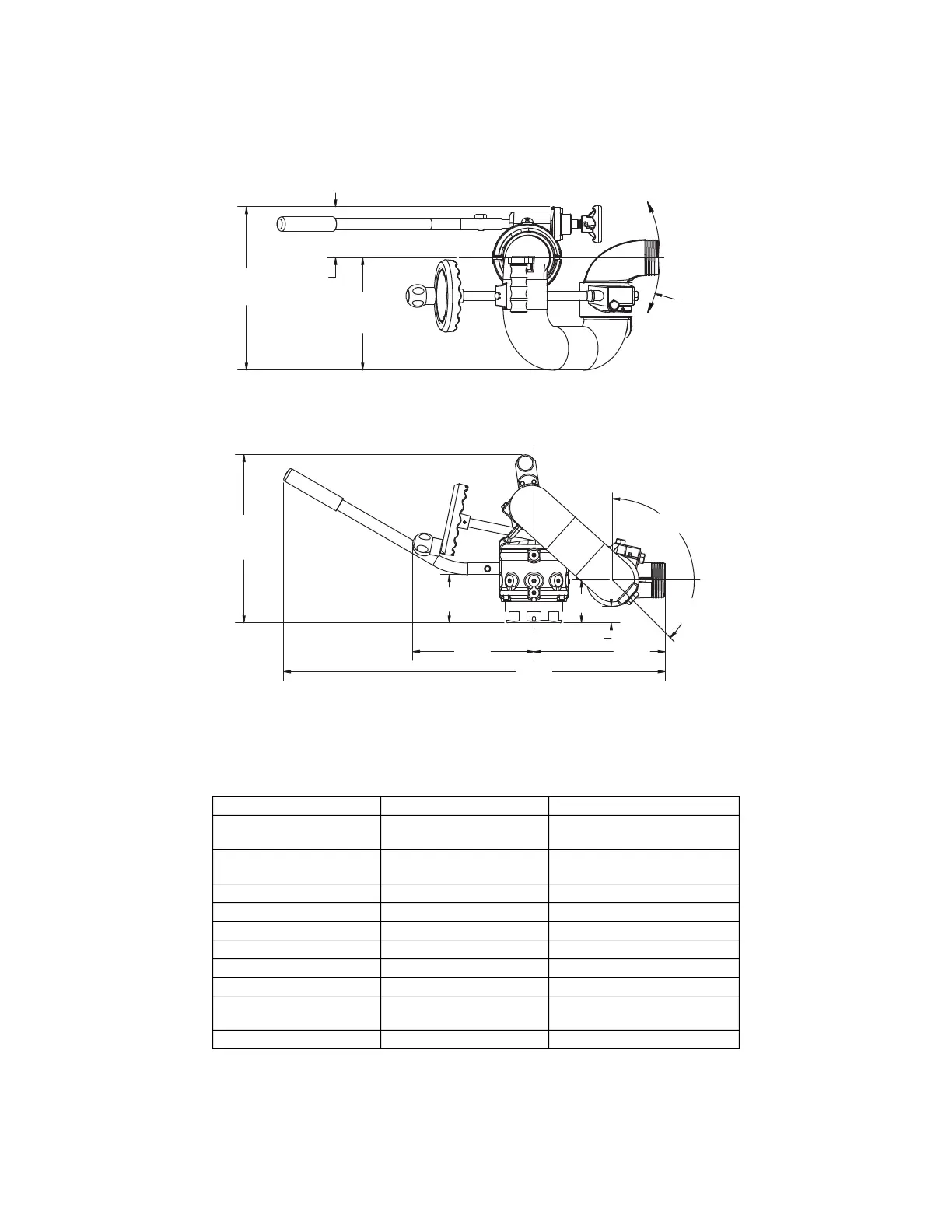

3.7 OVERALL DIMENSIONS (CONTINUED)
Figure 3.7G
3.7.1 OVERALL HEIGHT INCREASE FOR INLET FITTINGS
The following table shows the overall height increase on Hurricane RC, Dual Handwheel, and Tiller models with certain inlet fittings.
* These digits in the model number refer to thread size and type.
** Use of height from inlet adapter drawings (YQC series) to determine overall height with Quick Connect.
Figure 3.7.1
MODEL INLET FITTING TYPE ADDITIONAL HEIGHT
XFIH-*1*A 3” ANSI 125/150
(metric DN80 PN20)
.75”
(20mm)
XFIH-*2*A 4” ANSI 150
(metric DN100 PN20)
.94”
(23mm)
XFIH-*4*A (metric DN80, PN16) 2.80” (71mm)
XFIH-*5*A (metric DN100, PN16) 2.80” (71mm)
XFIH-*6*A 3” NPT Female 2.00” (51mm)
XFIH-*7*A 4” NPT Female 1.75” (45mm)
XFIH-*8*A 3” BSP Male 2.30” (58mm)
XFIH-*9*A 4” BSP Male 2.30” (58mm)
XFIH-DQ*A
XFIH-EQ*A
4.5” Quick Connect .63” (16mm) + inlet adapter**
XFIH-TQ*A 4.5” Quick Connect 3.38” (86mm) + inlet adapter**
HURRICANE MONITOR
with Tiller Rotation
360° Continuous
Range of Motion
11.3”
(287)
Swing Radius
9.7”
(246)
4.4”
(111)
14.0”
(357)
TOP VIEW
Shown without Inlet Fitting
(see table 3.7.1 for additional height per fitting)
14.5”
(367)
4.2”
(105)
10.4”
(265)
32.8”
(833)
3.7”
(93)
1.4”
(36)
11.3”
(286)
45°
BELOW
90°
ABOVE
SIDE VIEW
