TFT TORNADO User Manual

15
5.4 JOYSTICK MONITOR OPERATOR STATION (Y4E-JS)
5.4.1 MOUNTING
This operator station allows the monitor to be controlled by a joystick. The installer will need to mount the joystick and connect the
cables to the communication interface box or to a panel mount operator station. The joystick needs to be mounted in a
weatherproof location. Example: Inside the cab of the truck.
Select proper weatherproof operating location. Joystick will require 4 ½” x 4 ½” (114 x 114mm) of panel space. A depth of 4”
(100mm) will be required behind the panel. Refer to Figure 5.4.1.1 for hole dimensions.
After mounting, the installer may rotate the joystick up to 22 degrees in either direction. To rotate joystick, lift the rubber boot to
expose adjustable clamp. Loosen the clamping screws, rotate the joystick to desired position, and tighten clamping screws.

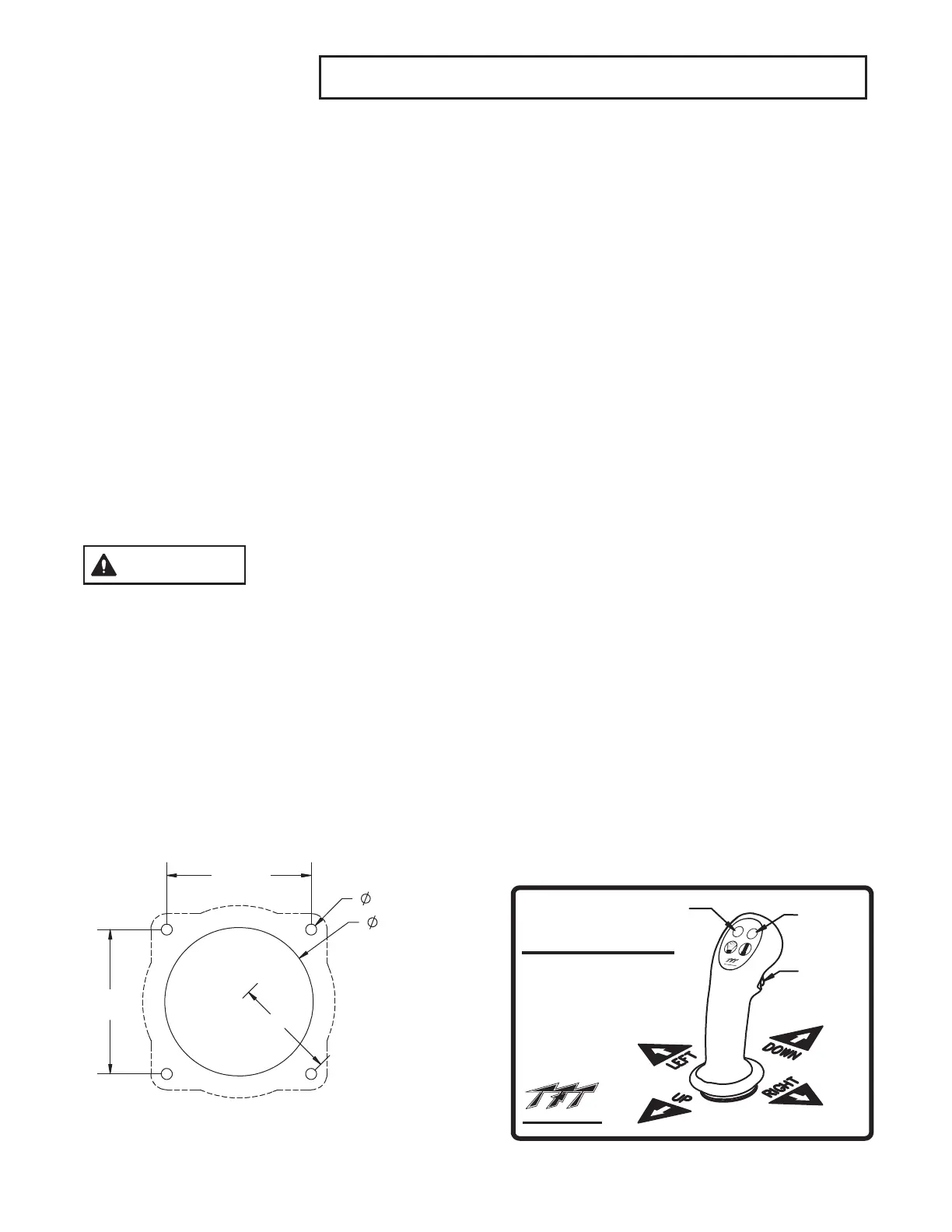

Fig 5.4.1.1
Joystick Operator Station Hole Dimensions
Fig 5.4.1.2
Joystick Instruction Label
2-27/32
(72 mm)
2-27/32
(72 mm)
1/4(6mm)
3 (76 mm)
2
(51 mm)
HOLE MOUNTING DETAIL
®
TA
S
K
F
O
R
C
E
T
IP
S
F
IR
E
F
IG
H
T
IN
G
E
Q
U
IP
M
E
N
T
www.tft.com
FOG
STRAIGHT
SMART SHAPER
1)
2)
NOZZLE STOPS AT FULL FOG
PRESS AGAIN FOR FLUSH
®
TASK FORCE TIPS
FIRE FIGHTING EQUIPMENT
STRAIGHT
STREAM
AUX
FUNCTION
TRIGGER
FOG THEN FLUSH
800-348-2686 • www.tft.com
Y5336
Install joystick instruction label nearby for quick operation reference.
5.3.3 TEACHING ID CODE:
Every monitor has a unique ID code that must be “taught or transferred” to the handheld unit. This unique ID code allows multiple
monitors to be used in one location without interference. Perform the following procedure to teach the handheld unit.
-Press POWER button to turn on electronics.
-Press and hold both LEFT & RIGHT buttons for 5 seconds.
-Continue to press LEFT & RIGHT buttons and then press UP button for 2 seconds.
-Release buttons. OSC & STOW lights will flash rapidly to indicate that the unit is in teach mode.
On Handheld Unit:
On Monitor Control Box:
-Apply power to monitor.
-Press and hold both LEFT & RIGHT buttons for 5 seconds.
-Continue to press LEFT & RIGHT buttons and then press UP button for 2 seconds.
-Release buttons. OSC & STOW lights will flash rapidly to indicate that the unit is in teach mode.
-OSC & STOW lights on handheld unit will stop flashing after ID code is transferred.
-Press DOWN button on monitor control box to exit teach mode.
-Cycle power off and back on to monitor.
NOTE: When the operator station is purchased at the same time as RC monitor,
handheld unit will be pre-taught at factory.
5.3.4 CHANGING BATTERIES:
Four (AA) Batteries, Lithium Recommended
-Remove two (2) screws on backside of handheld unit and slide bottom half of rubber bumper off enclosure.
-Replace batteries verifying that polarity is correct.
-Replace rubber bumper and retaining screws.
CAUTION
Properly dispose of old batteries. Do not puncture, incinerate, or disassemble batteries.
Do not mix battery types.
