TFT TORNADO User Manual

Nominal operating voltage: 12 or 24 VDC (field changeable)
Motor current: Nominal* Limit
Elevation motor: 6 amps 15 amps
Horizontal rotation motor: 6 amps 10 amps
Nozzle motor: 1 amp 5 amps
*with rated water pressure applied
At rest current: .25 amps
Operating temperature range: -30F to +120F (-34C to +49C)
Environmental Rating: All components designed to meet minimum rating of NEMA 4 (IP65).
Recommended fuse or circuit breaker size: 15 amps @ 12 volts, 7.5 amps @ 24 volts
ELECTRICAL SPECIFICATIONS
4
WIRELESS OPERATOR STATION (YE-RF-##)

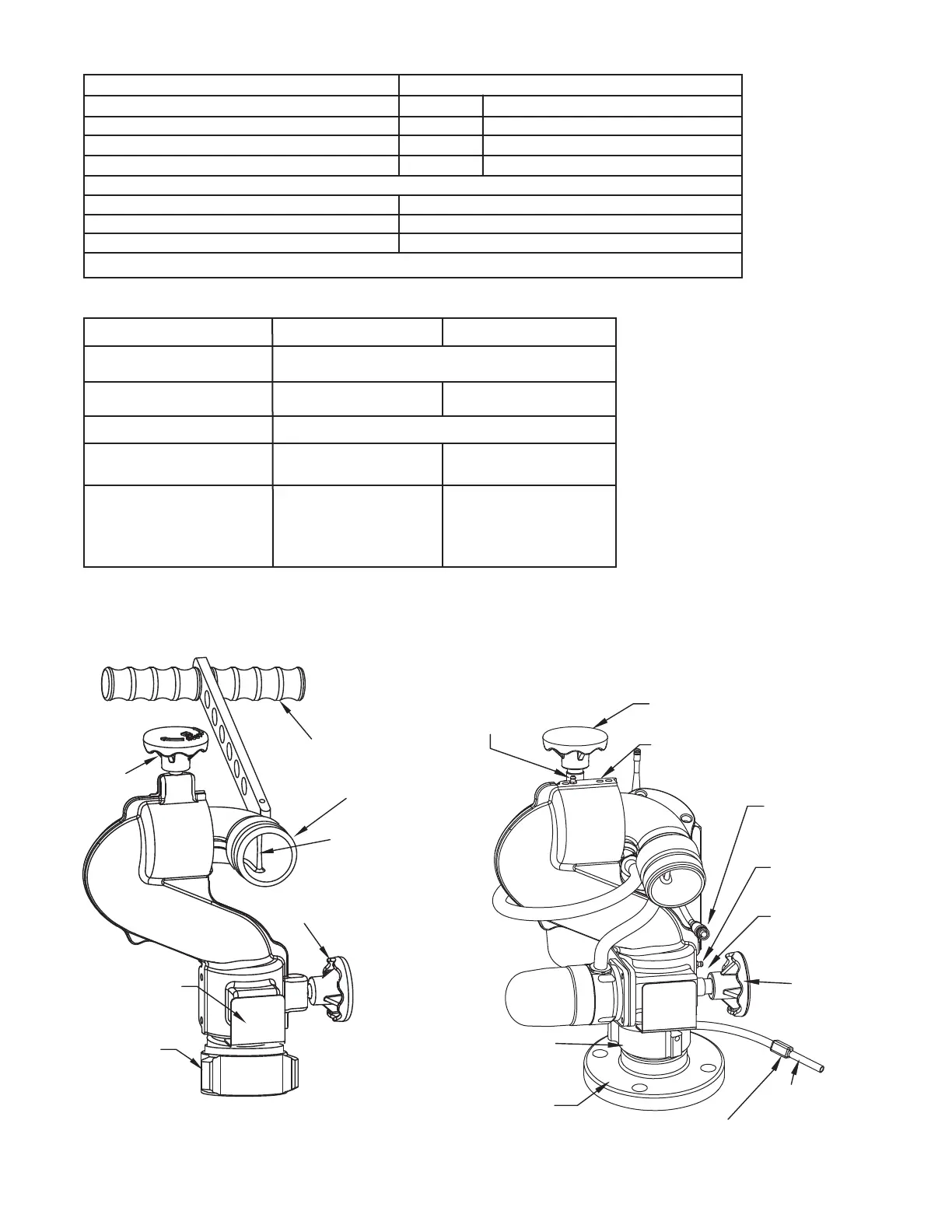

3.2 PART IDENTIFICATION AND MODELS
The Tornado and Tornado RC Monitor are shown in figs 3.2A and 3.2B along with the names of some various parts and controls.
Fig. 3.2A Manual Tornado Monitor Part Identification
HORIZONTAL ROTATION
LOCKING KNOB
TURNING
VANE
OUTLET
TILLER BAR
MODEL AND SERIAL
NUMBER ON LABEL
ELEVATION
LOCKING
KNOB
2-1/2” NH
COUPLING
Fig. 3.2B Tornado RC Monitor Part Identification
QUICK CONNECT INLET
(2-1/2” ANSI 150 FLANGE SHOWN)
POWER AND
COMMUNICATION CORD
2-1/2” NH
COUPLING
ELECTRICAL CONNECTOR
MANUAL OVERRIDE
KNOB FOR
HORIZONTAL
ROTATION
HORIZONTAL ROTATION
TRAVEL STOP
SEE SECTION 4.2
GREASE FITTING FOR
HORIZONTAL ROTATION
GREASE FITTING
FOR ELEVATION
ELEVATION TRAVEL STOP
SEE SECTION 4.2
ELECTRIC NOZZLE
CONNECTION
MANUAL OVERRIDE KNOB
FOR ELEVATION
Handheld Unit Batteries
Transmitting Power
Operating Range
Operating Frequency
Four (AA) Batteries, Lithium Recommended
100mW 50mW
500 ft (152m)
Agency Approvals
FCC.......................OUR9XSTREAM .......OUR24XSTREAM
Industry Canada (IC).........4214A-9XSTREAM ........4214A-12.008
Europe ..........................N/A..................ETSI
YE-RF-900, 900 MHz YE-RF-2400, 2.4 GHz
900 MHz
(902-928 MHz)
2.4GHz
(2.4000-2.4835 GHz)

TFT TORNADO Specifications

General

Brand	TFT
Model	TORNADO
Category	Firefighting Equipment
Language	English
