TFT TORNADO User Manual

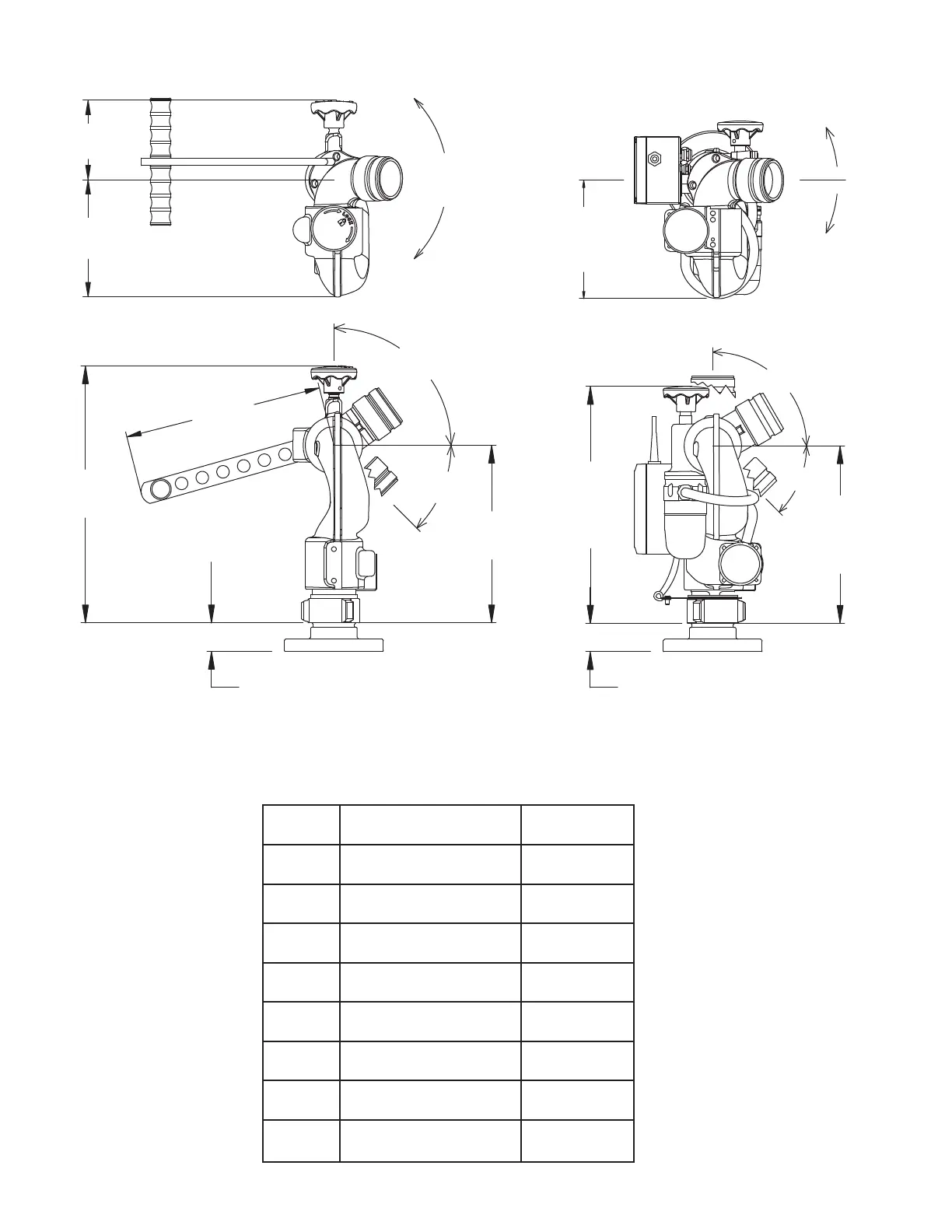

3.4 OVERALL DIMENSIONS
6
Electric Tornado RC Monitor Dimensions
Fig 3.4B
Manual Tornado Monitor Dimensions
Fig 3.4A
5.50
(140 mm)
8.25
(210 mm)
360°
CONTINUOUS
18.00
(460 mm)
14.00
(360 mm)
12.40
(315 mm)
90°
45°
See table below for additional height
from Inlet Fitting
MODEL INLET FITTING ADDITIONAL
TYPE HEIGHT
Y2-*1*A 2-1/2” - 7.5 NH FEMALE 0.00"
(no inlet fitting) 0 mm
Y2-*2*A 2-1/2” - 11 BSP FEMALE 2.00"
51 mm
Y2-*3*A 2.0” - 11.5 BSP FEMALE 1.50"
38 mm
Y2-*6*A 2.5” ANSI 150 FLANGE 2.00"
51 mm
Y2-*7*A 2-1/2” - 8 NPT FEMALE 2.00"
51 mm
Y2-*8*A 2.0” - 11.5 NPT FEMALE 1.50”
38 mm
Y2-*9*A 3.0 - 8 NPT FEMALE 2.44”
62 mm
Y2-*L*A TFT CODE-RLF 2.00”
(fits Extend-A-Gun RC3) 51 mm
16.50
(420 mm)
See table below for additional height
from Inlet Fitting
12.40
(315 mm)
90°
45°
8.25
(210 mm)
185° LEFT
185° RIGHT
