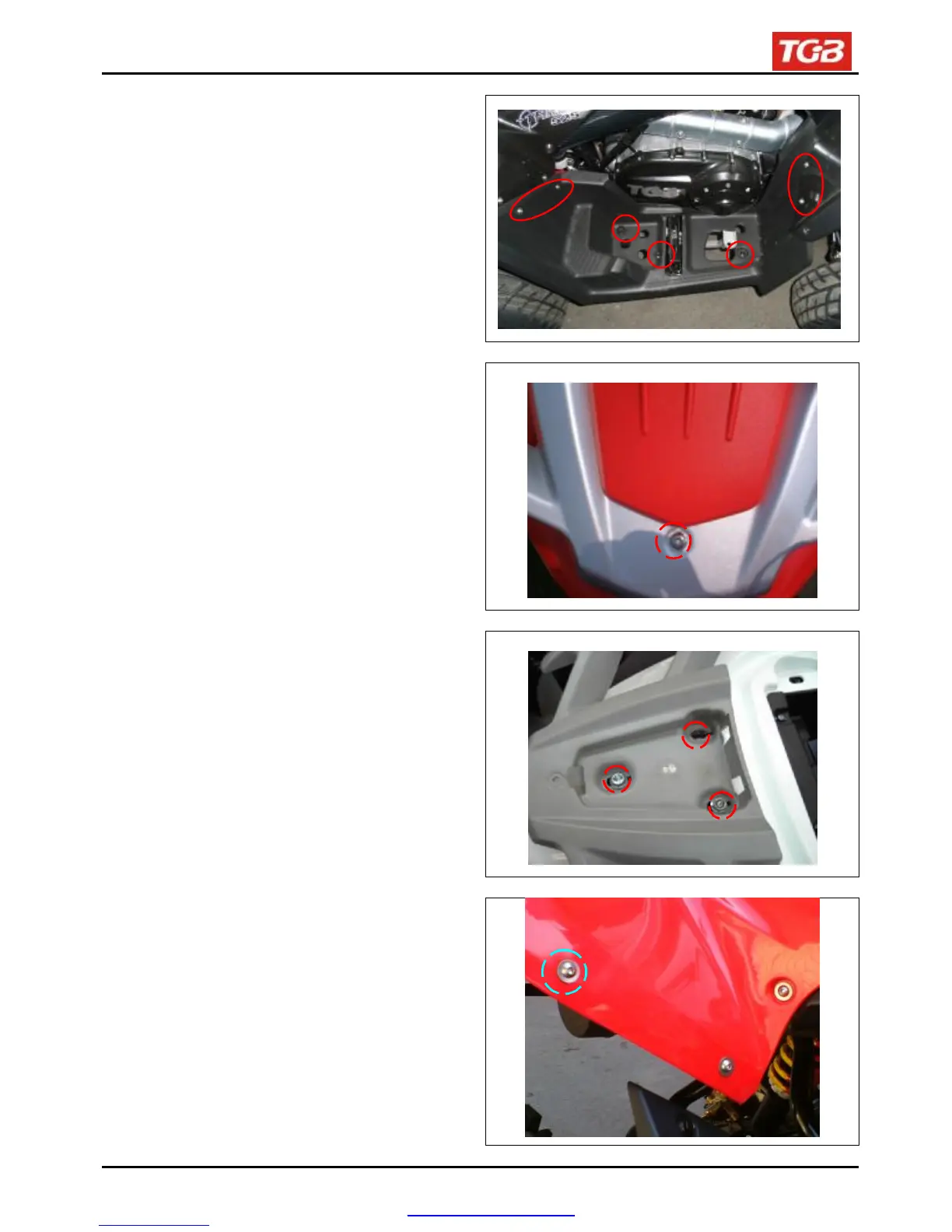

TGB 525 - Tail Carrier and Rear Body Cover Removal

13. BODY COVER
Remove bolts and screws from right or left foot
board.(each side 5 bolts)
Remove right or left foot board.
Remove screw from tail carrier.
Then,remove tail carrier ornamental.
Remove 3 bolts from tail carrier,then remove tail
carrier.
Remove the bolts from rear body cover.
(each side)
Installation
Install in reverse order of removal procedures.
13-6
