15. STEERING / FRONT SUSPENSION
Steering Handle

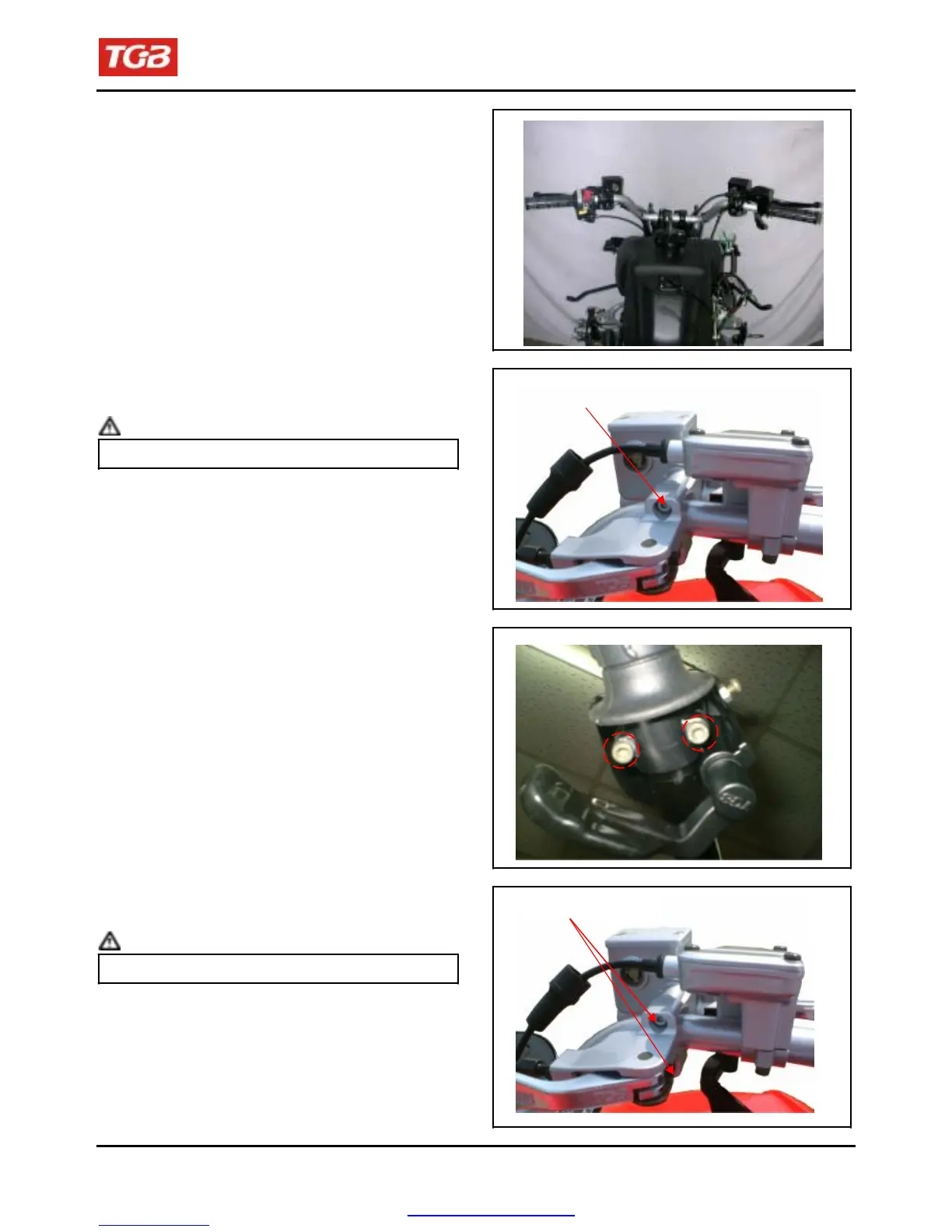

Removal
Remove the handle cover, meter set, handle
protect cover and front fender. (Refer to chapter
13)
Loosen the socket bolts for the front brake master
cylinder, and remove front brake master cylinder.
Caution
Do not let foreign materials enter into the cylinder.
Remove 2 screws, and then remove throttle
hosing holder and throttle hosing.
Loosen the socket bolts for the front brake master
cylinder, and remove front brake master cylinder.
Caution
Do not let foreign materials enter into the cylinder.
15-3
Master c
y
linder
bolts
Master c
y
linder
bolts
