TGB 525 - Rear Cushion

To this chapter contents
16. REAR BRAKE & REAR WHEEL & REAR CUSHION
Rear Cushion

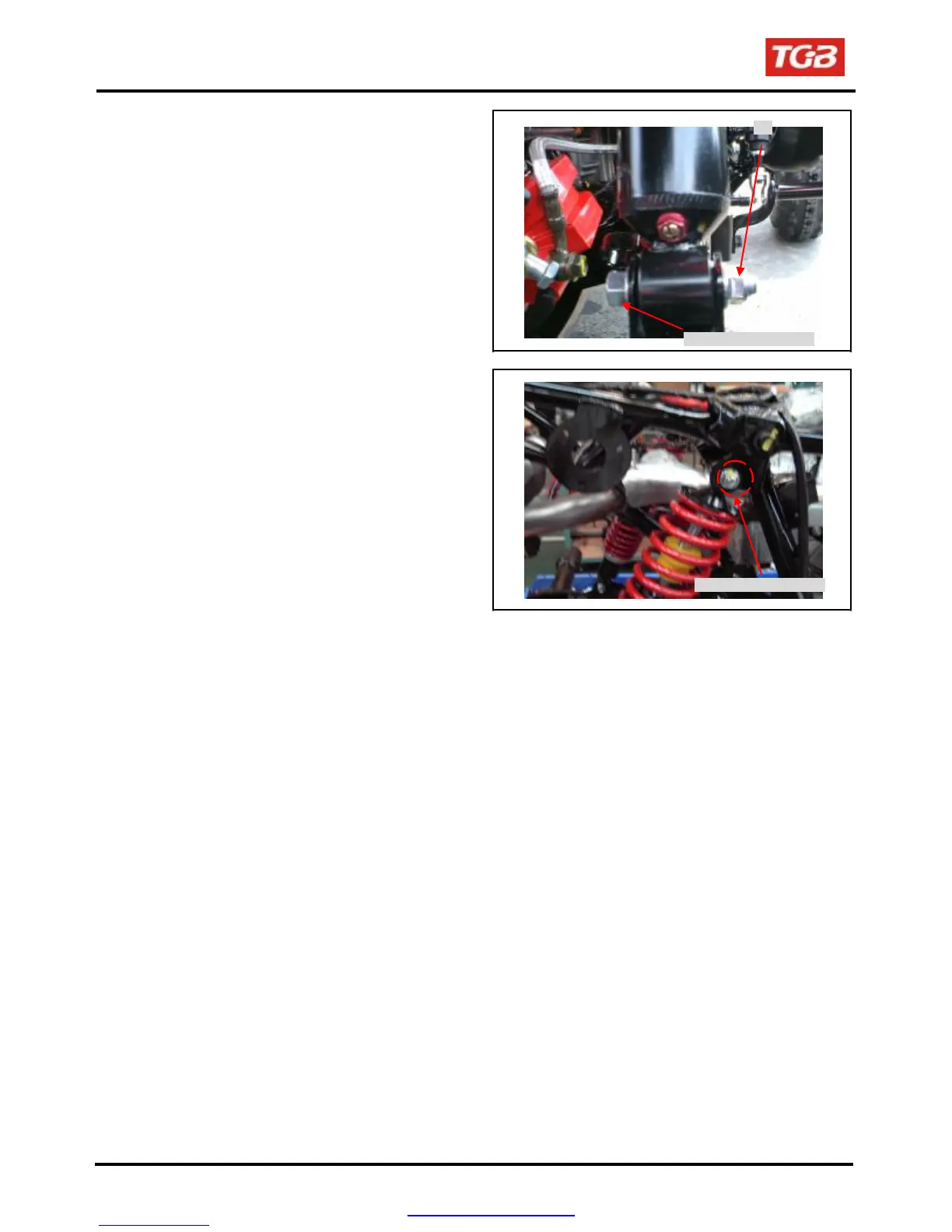

Removal
Support the frame.
Loosen rear cushion under bolt nut, and remove
rear cushion under bolt.
Nut
Rear cushion under bolt
Remove rear cushion upper bolt, and then remove
rear cushion.
Installation
Install rear cushion, and install rear cushion upper
bolt.
Install rear cushion under bolt, and install nut. Tighten
the rear cushion upper bolt and under nut to the
specified torque value.
Torque: 4.6kgf-m
``
16
-
1
4
Rear cushion upper bolt
