14. FRONT BRAKE & FRONT WHEEL

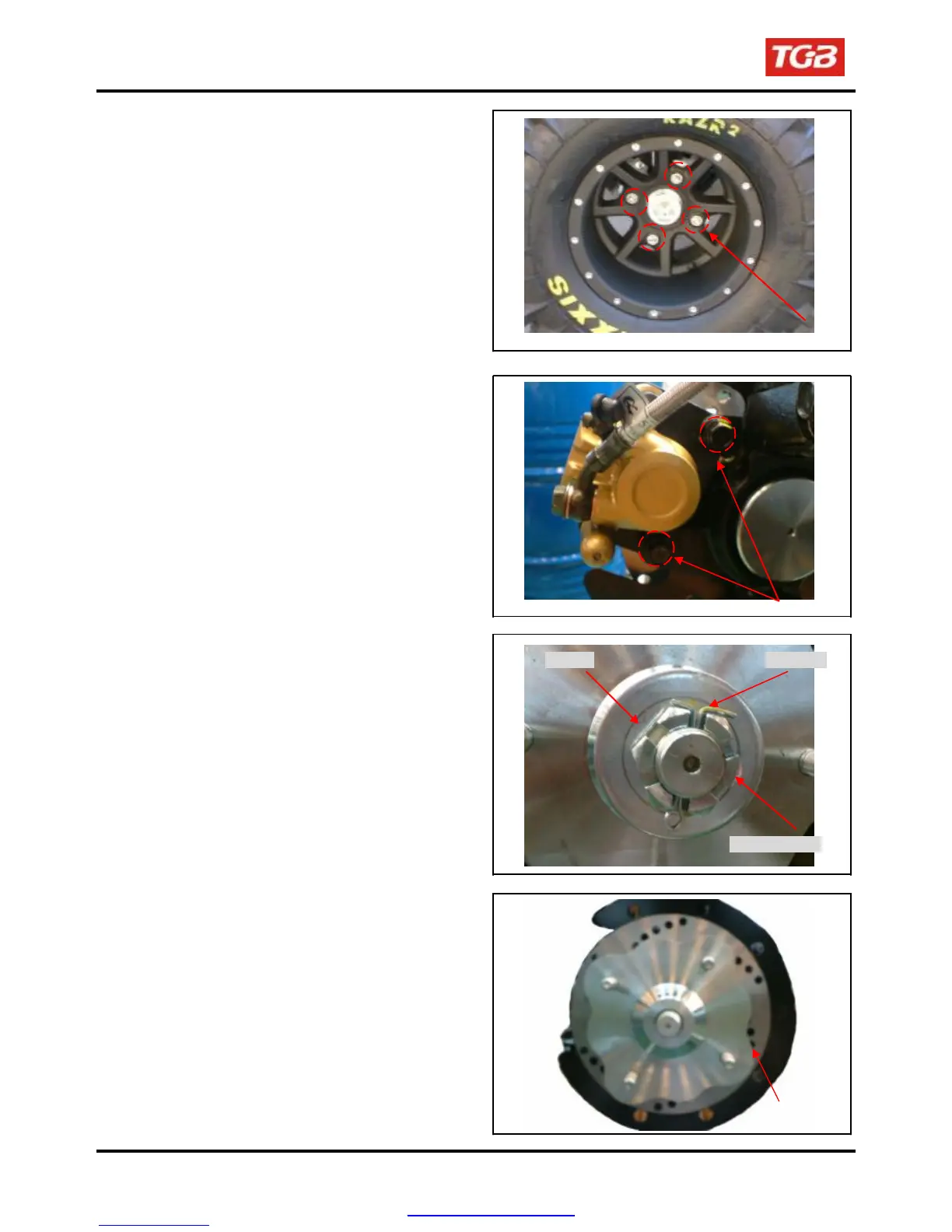

Front Wheel
Removal
Raise the front wheels off the ground by placing a
jack or other support under the frame.
Remove the front wheel nuts, and then remove
front wheels.
Installation
Install the front wheel and tighten the nuts.
Torque: 5.0kgf-m
Front Wheel Hub
Removal
Remove front brake caliper (2 bolts).
Remove cotter pin, wheel hub nut and washer.
Remove wheel hub and brake disk.
14-4
4 nuts
2 bolts
Cotter pin Washer
Wheel hub nut
Brake Disk
