13. BODY COVER

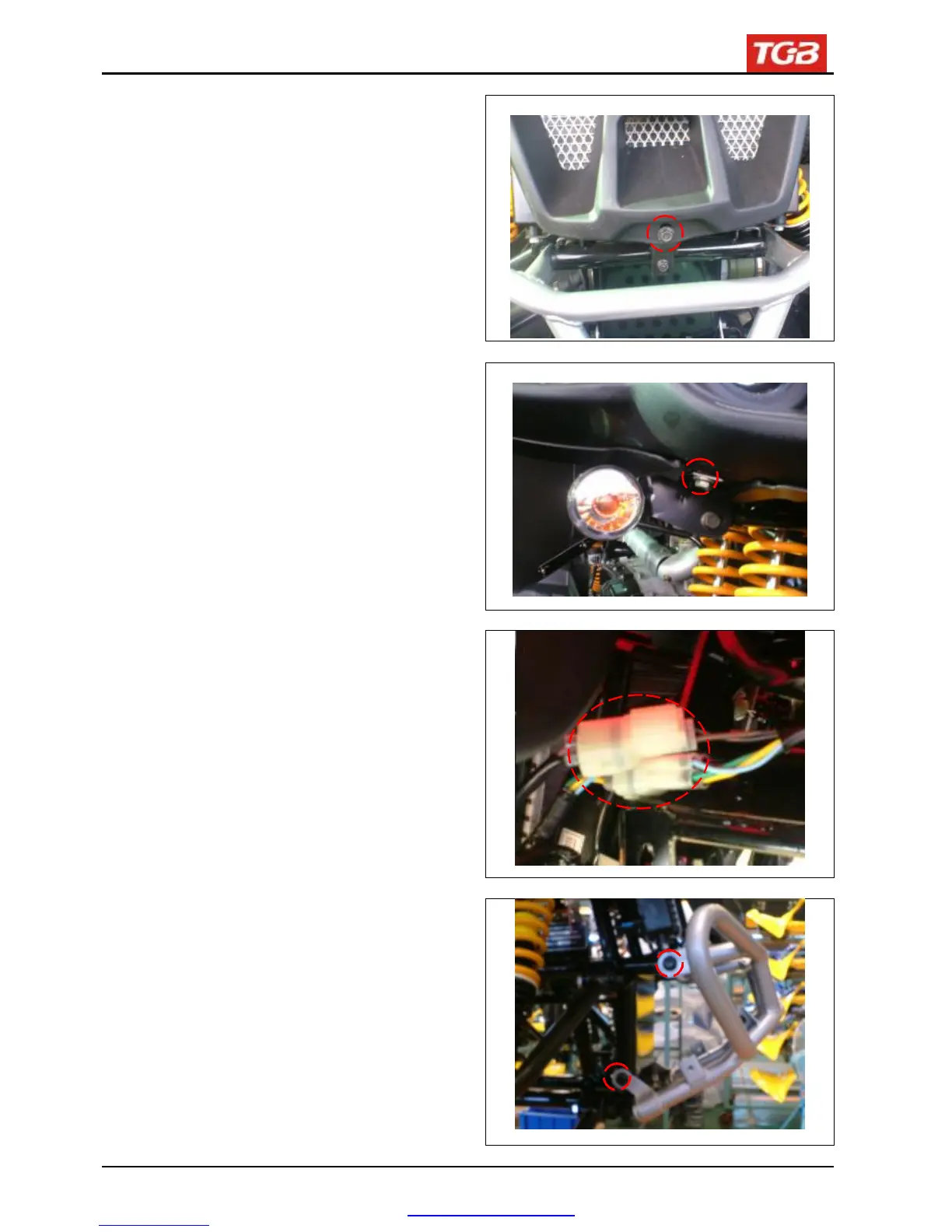

Remove 1 bolt from the front part of first housing.
Remove bolts from first housing.
(each side 1 bolt)
Remove right and left head lamp couplers.
(each side 2 couplers)
Then,remove first housing.
Remove 4 bolts from front bumper.
(each side 2 bolts)
Remove front bumper.
Installation
Install in reverse order of removal procedures.
13-8
