6.2 LGA DevKit on DSB75
To operate the LGA DevKit with the DSB75 please complete the following steps:
• Mount the LGA DevKit onto the DSB75.
• Insert the module.
• Set "PWR" and "ASC0".
• Check if all jumpers are placed at the pin header: CONTROL, ASC0_A and PWR
• Connect the host PC to DSB75 via Sub-D.
• Connect power to DSB75 and if needed to the LGA DevKit.
• Press the ON button (or the DSB75 IGT button).

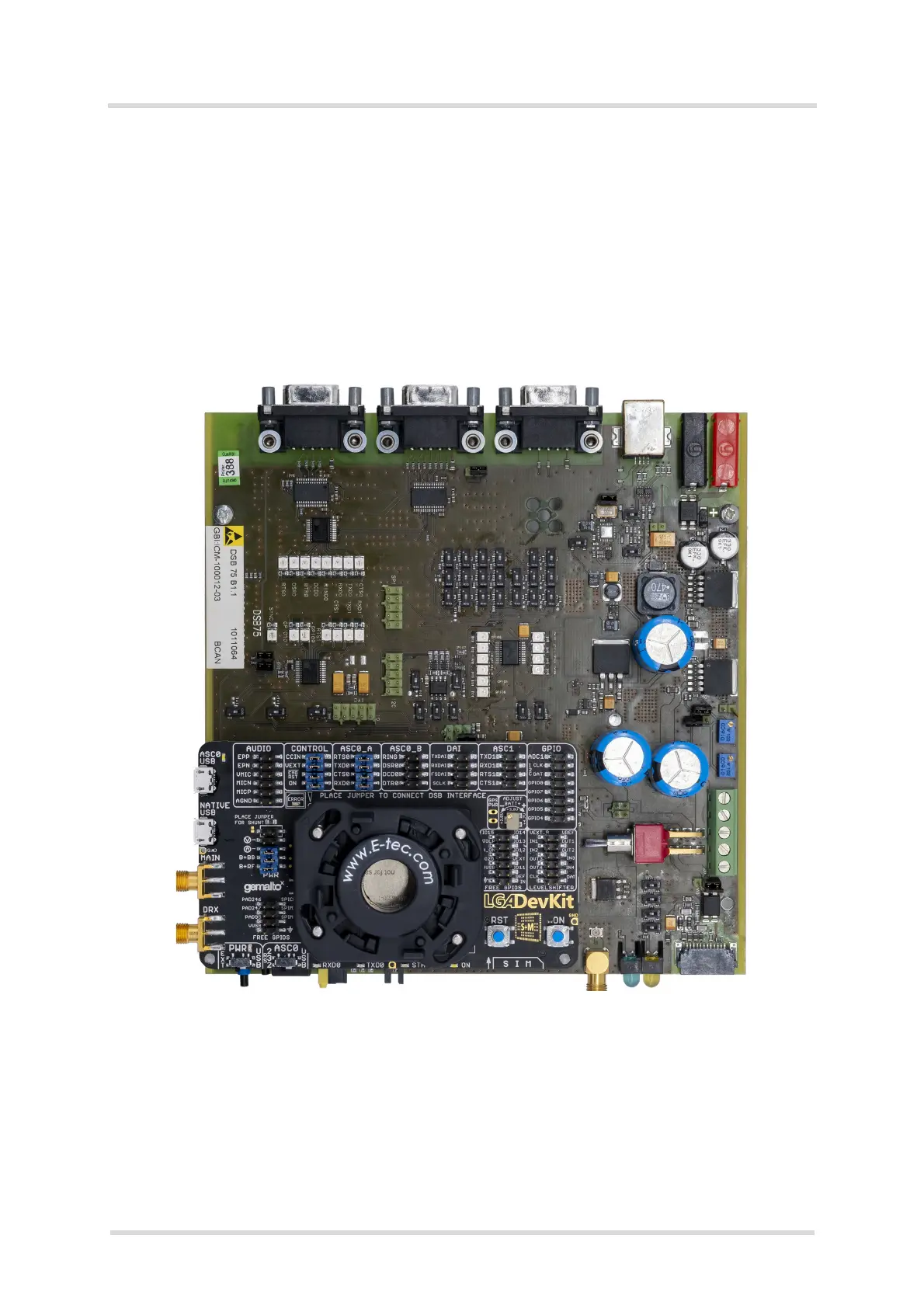

Figure 17: LGA DevKit on DSB75
