Cinterion
®
LGA DevKit User Guide
1.3 Package Content
35
t lga_devkit_ug_v03 2020-05-29
Public / Released
Page 8 of 36

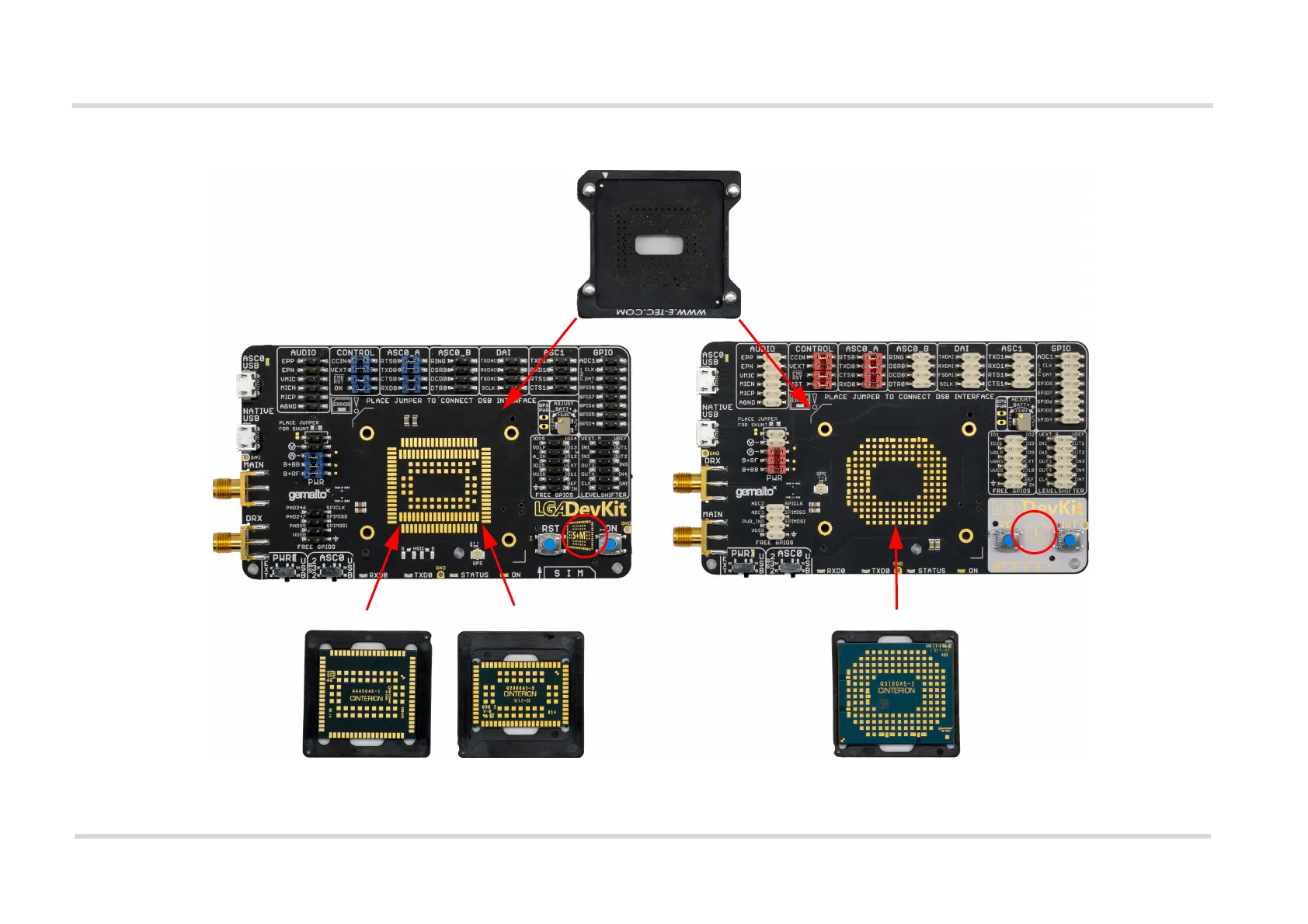

Figure 2: LGA DevKit socket SML with LGA DevKit variants SM and L
Cinterion
®
LGA DevKit socket SML
(L30960-N0110-A100)
Cinterion
®
LGA DevKit L
(L30960-N0112-A100)
Cinterion
®
LGA DevKit SM
(L30960-N0111-A100)
LGA106
LGA114
LGA120
LGA156
SM
L
