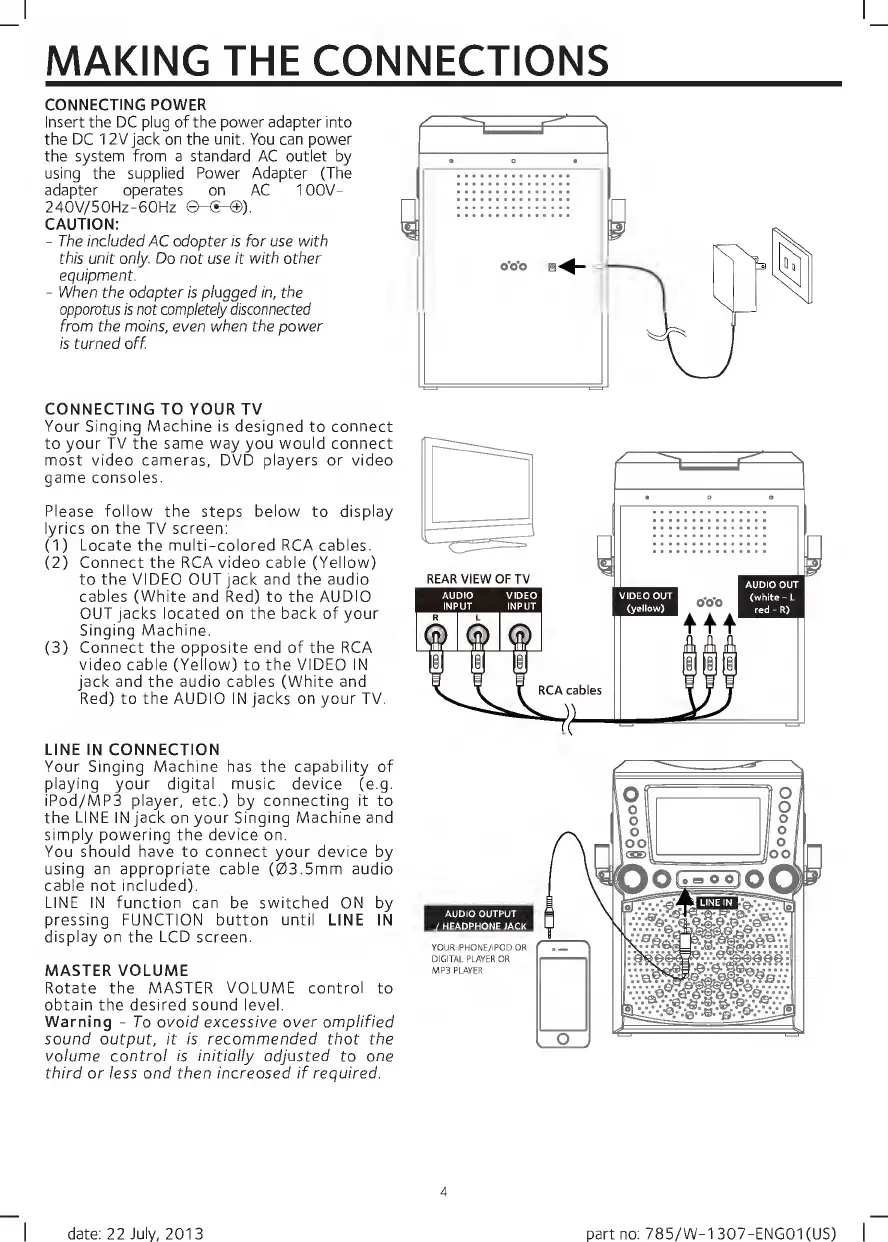

MAKING THE CONNECTIONS
CONNECTING POWER
Insert the DC plug of the power adapter Into
the DC 1 2V jack on the unit. You can power
the system from a standard AC outlet by
using the supplied Power Adapter (The
adapter operates on AC 10OV-
240V/50Hz-60Hz
CAUTION:
- The included AC adapter is for use with
this unit only. Do not use It with other
equipment.
- When the adapter is plugged in, the
apparatus is not completely disconnected
from the mains, even when the power
is turned off
CONNECTING TO YOUR TV
Your Singing Machine is designed to connect
to your TV the same way you would connect
most video cameras, DVD players or video
game consoles.
Please follow the steps below to display
lyrics on the TV screen:
(1) Locate the multi-colored RCA cables.
(2) Connect the RCA video cable (Yellow)
to the VIDEO OUT jack and the audio
cables (White and Red) to the AUDIO
OUT jacks located on the back of your
Singing Machine.
(3) Connect the opposite end of the RCA
video cable (Yellow) to the VIDEO IN
jack and the audio cables (White and
Red) to the AUDIO IN jacks on your TV.
LINE IN CONNECTION
Your Singing Machine has the capability of
playing your digital music device (e.g.
iPod/MP3 player, etc.) by connecting it to
the LINE IN jack on your Singing Machine and
simply powering the device on.
You should have to connect your device by
using an appropriate cable (03.5mm audio
cable not included).
LINE IN function can be switched ON by
pressing FUNCTION button until LINE IN
display on the LCD screen.
MASTER VOLUME
Rotate the MASTER VOLUME control to
obtain the desired sound level.
Warning - To avoid excessive over amplified
sound output, it is recommended that the
volume control Is Initially adjusted to one
third or less and then increased if required.
