THERMACUT EX-TRAFIRE 55SD - Hand Torch Setup

EX-TRAFIRE
®
55SD
Operator Manual, Revision T-3 2-15

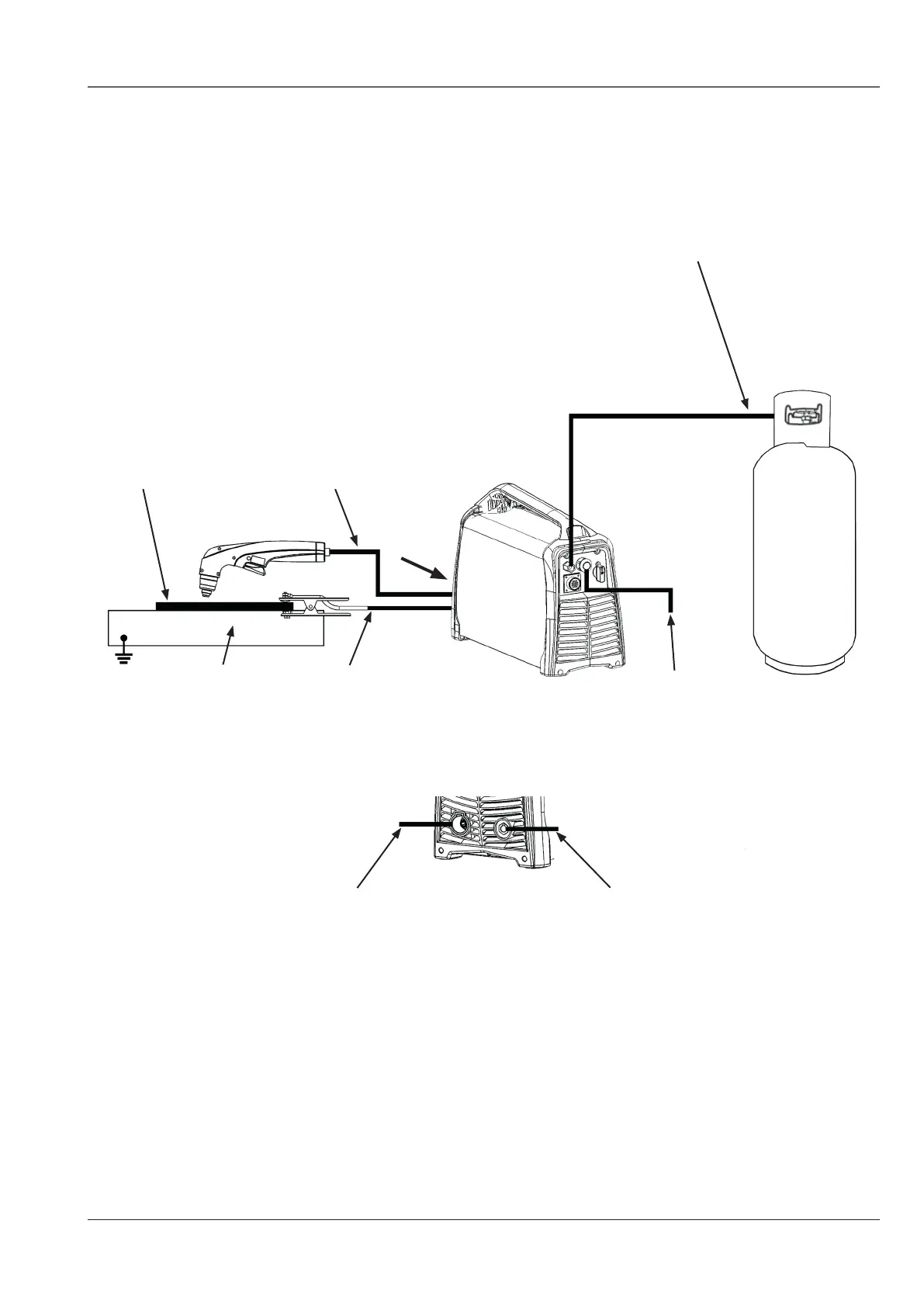

Hand torch setup
Ground Work lead Power lead Gas supply
Torch lead
Gas hose (min� Ø8 mm)
P
view P
Torch lead Work lead
Work piece
Work table
min� 270 LPM
min� 6 bar
max� 10 bar
