EX-TRAFIRE
®
55SD
Operator Manual, Revision T-34-32

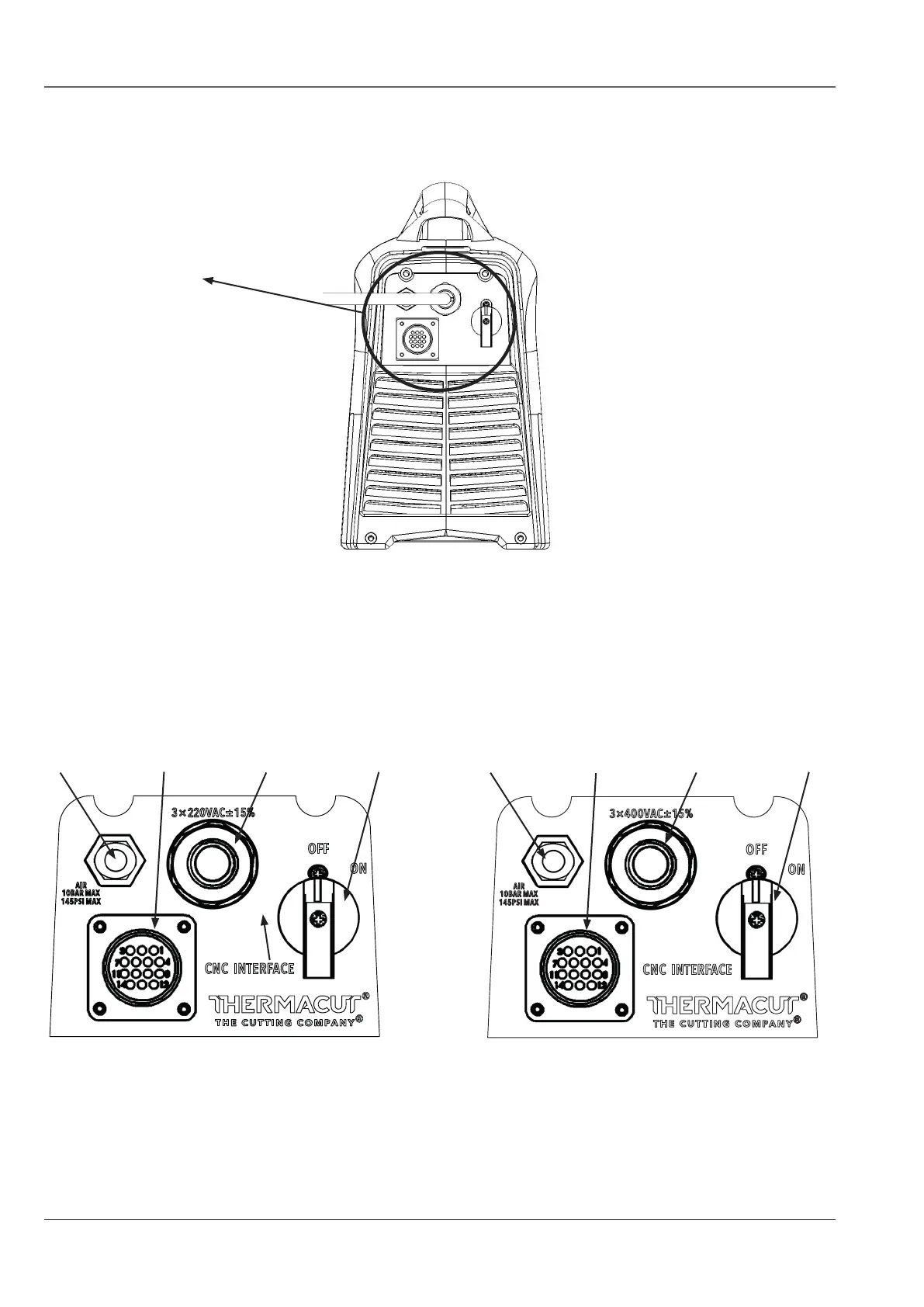

Rear control panel detail
Rear view
Rear control panel
1� Power supply switch
2� Mains power lead
3� CNC interface connector
4� Gas supply input fitting G1/4” Female
4 3 2 14 3 2 1
EX-TRAFIRE
®
55SD - 3 x 220 V EX-TRAFIRE
®
55SD - 3 x 400 V
