THERMACUT EX-TRAFIRE 55SD - Torch Connection - TCS Plug; TCS Plug Latch with Key Position; Connecting TCS Latch to Socket

EX-TRAFIRE
®
55SD
Operator Manual, Revision T-3 3-23

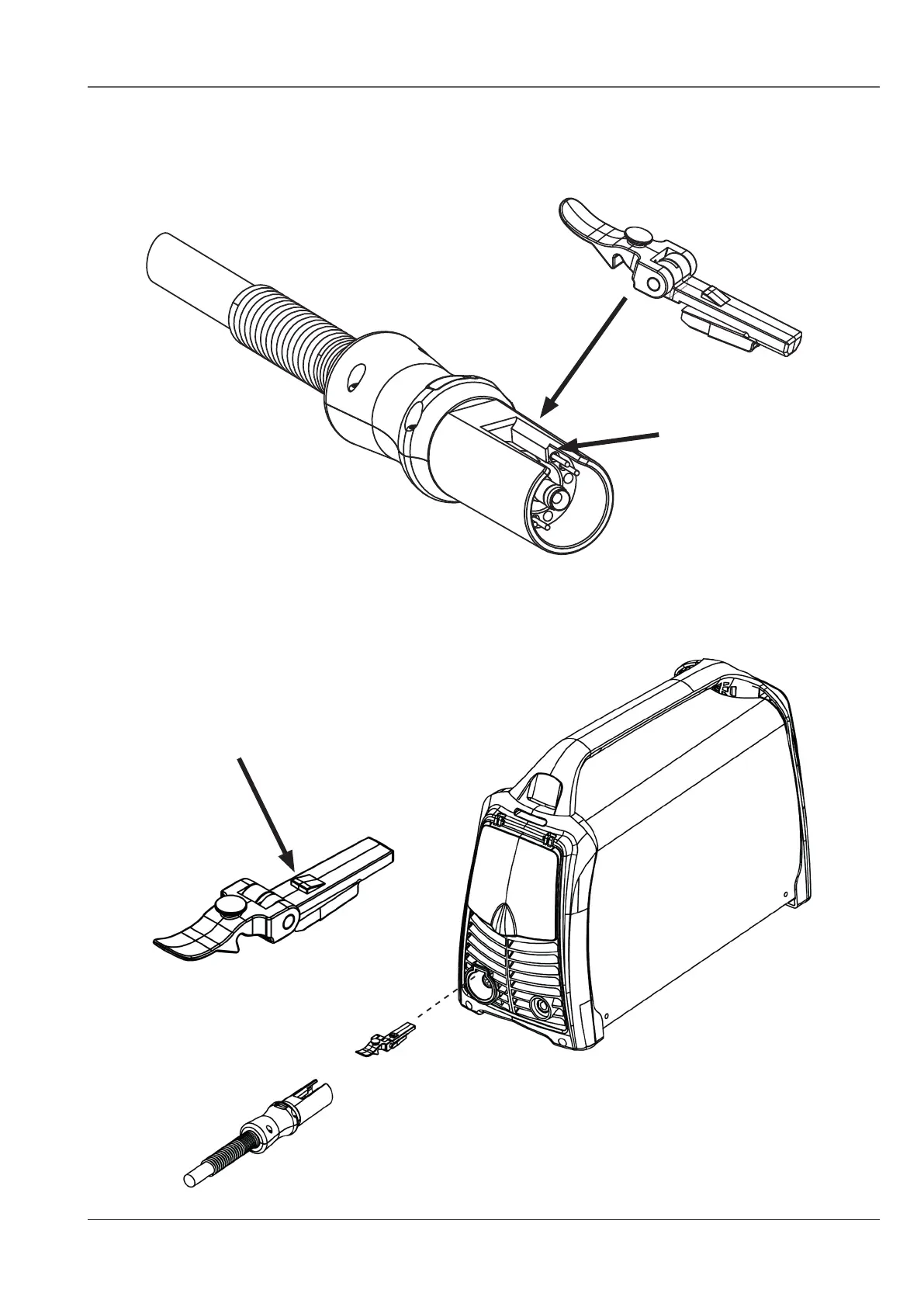

3� Torch connection – Torch TCS plug Latch with key position�
TCS latch with key
Torch TCS plug Latch
with key position
4� Torch connection – 1st step – place the TCS latch with key into the TCS power supply socket�
The TCS latch with key must be locked in the TCS socket properly with the latch nose�
TCS latch nose
