Thermal Dynamics CutMaster 100 User Manual

PARTS LISTS 6-2 Manual 0-2859
6.03 Power Supply Replacement
The following items are included with the replacement power supply: work cable & clamp, gas pressure regulator/
filter, and operating manual.
Qty Description Catalog #
CutMaster 100 Power Supply
1 208/230VAC, Single-Phase, 60Hz, with input power cable and plug 3-1250-1
1 400VAC, Three-Phase, 50/60 Hz, with input power cable 3-1250-3
1 460VAC, Three-Phase, 60Hz, with input power cable 3-1250-2
1 600VAC, Three-Phase, 60Hz, with input power cable 3-1250-5
6.04 Replacement Parts
Qty Description Catalog #
Fuse
1 for 208/230VAC Power Supply 9-8588
1 for 400VAC Power Supply 9-8602
1 for 460VAC Power Supply 9-8583
1 for 600VAC Power Supply 9-8638
1 Regulator/Filter Assembly Replacement Element 9-4414
6.05 Options and Accessories
Qty Description Catalog #
1 Single-Stage Filter Kit (includes Filter & Hose) 7-7507
1 Replacement Filter Body 9-7740
1 Replacement Filter Hose (not shown) 9-7742
2 Replacement Filter Element 9-7741
1 Two-Stage Filter Kit (includes Hose & Mounting Screws) 7-7500
1 Bracket, Filter Mounting (not shown) 9-7535
1 Two-Stage Air Filter Assembly 9-7527
1 First Stage Cartridge 9-1021
1 Second Stage Cartridge 9-1022
1 Extended Work Cable (50 ft/15.2 m) with Clamp 9-8529
1 Multi-Purpose Cart 7-8888

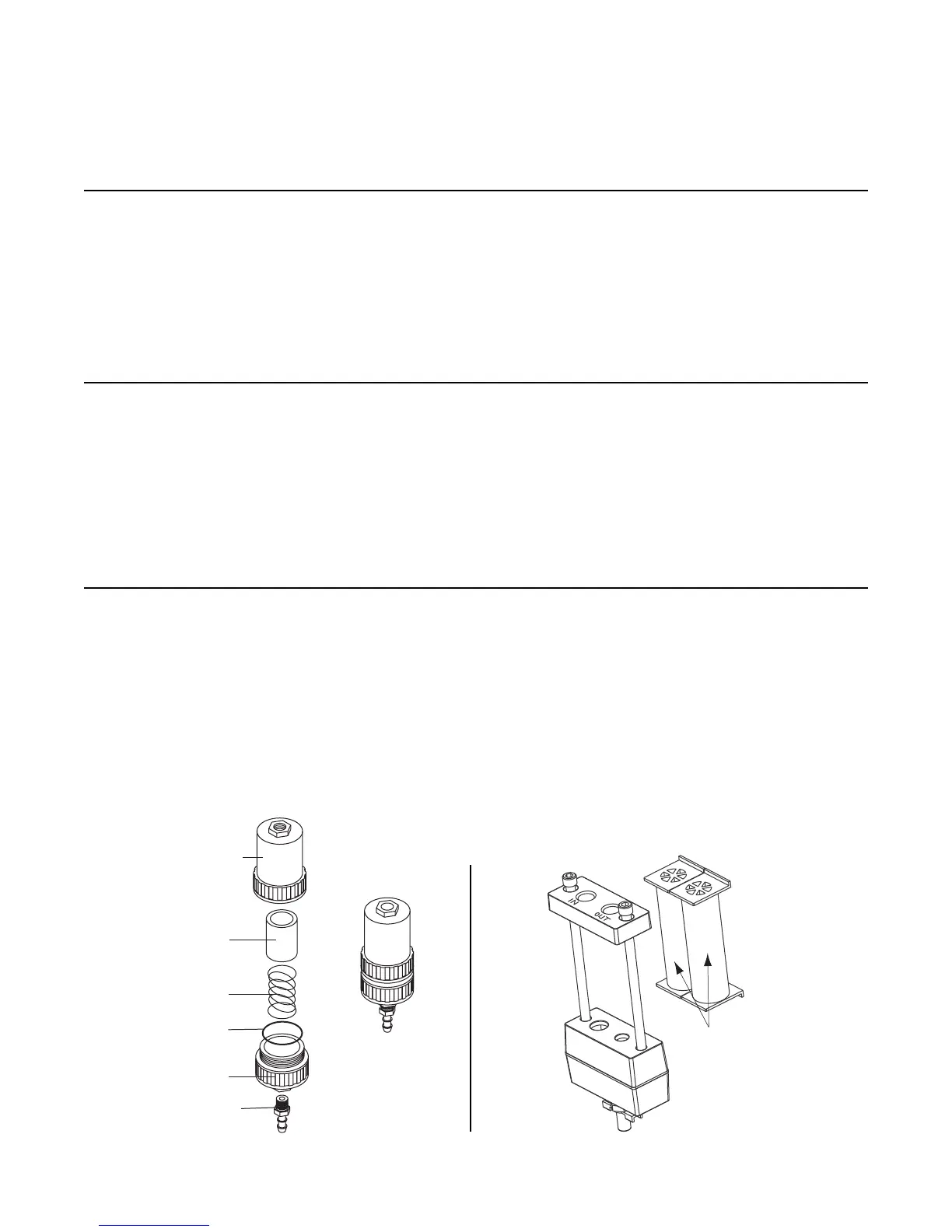

Optional Single-Stage Filter Kit Optional Two-Stage Filter Kit
First & Second
Stage
Cartridges
(as marked)
Art # A-02942
Art # A-02476
Filter
Element
(Cat. No. 9-7741)
Housing
Cover
Barbed
Fitting
Spring
Assembled Filter
O-ring
(Cat. No. 9-7743)
